ELKO

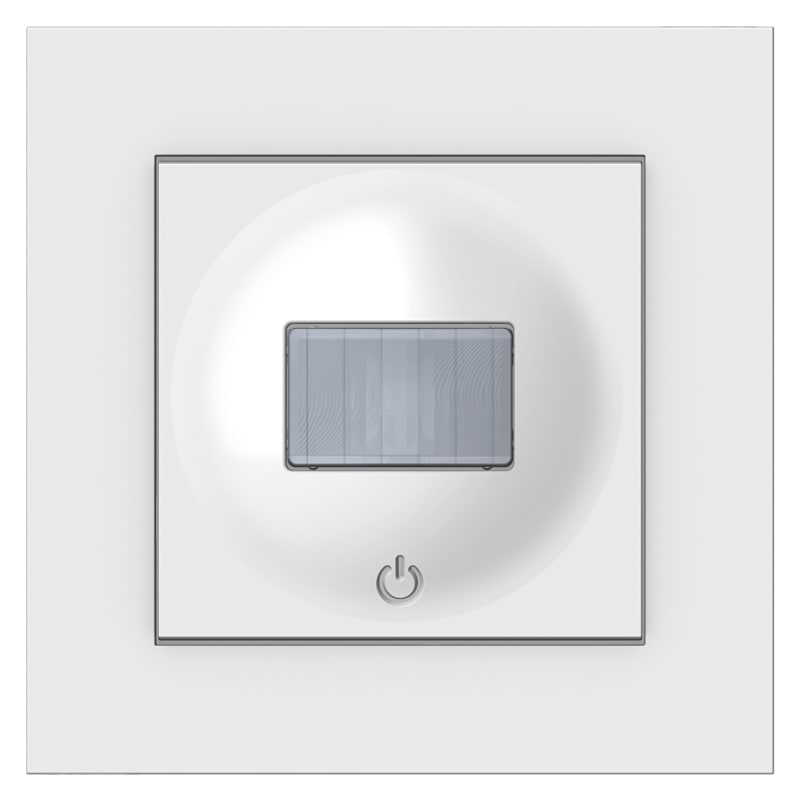

EASYPIR10A Univ Plus POLAR WHITE
Part numberEKO06992EAN / GTIN7020160699206HS code8536.50
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO06992 EasyPIR10A Univ Plus POLAR WHITE.
Technical Specifications
- Manufacturer part number (MPN)
- EKO06992
- EAN / GTIN
- 7020160699206
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 86 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 86 mm
- Depth
- 44 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switch-off delay
- 1800 s
- Built-in depth
- 27 mm
- Frequency
- 50 Hz
- With remote control
- No
- Diameter
- 86 mm
- Suitable for wall mounting
- Yes
- Built-in width
- 86 mm
- Built-in diameter
- 73 mm
- Staircase light controller
- Yes
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 8 m
- Max. reach sideways
- 6 m
- Max. switching power
- 2200 W
- Temperature
- 5–35 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–500 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 16 m
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- Yes
- Substation input
- Yes
- RAL-number (similar)
- 9010
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- Yes
- Scan angle
- 160 °
- Built-in length
- 27 mm
- Impact strength
- IK00
- With connection cable
- No
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Glossy
- Detection angle horizontal
- 0–160 °
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 1 m
- Pivoting range sensor, horizontal
- 160 °
- Pivoting range sensor, vertical
- 30 °
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- Yes
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 46 mm
- Max. presence range
- 86 m²
- Compatible with Apple HomeKit
- No
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7020160699206
- SAP 1200357557
- Code 82363389
Product Documentation
Document preview: EASYPIR10A Univ Plus POLAR WHITE (EKO06992) — Specification sheet
