ELKO

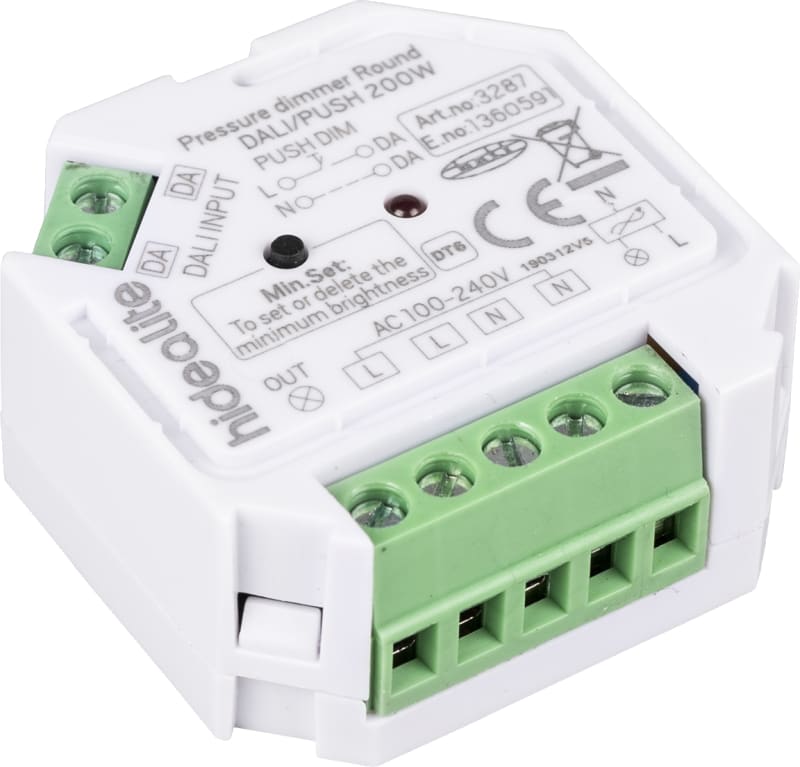

Pressure-dim Round DALI/PUSH 200W
Part number1360591EAN / GTIN7392971136783HS code8504.40
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO 1360591 Dimmerpuck for fasedimbare drivers. Fitsn wall box Dimmable via DALI and push (230V). 1-200W.
Technical Specifications
- Manufacturer part number (MPN)
- 1360591
- EAN / GTIN
- 7392971136783
- Sales unit
- pcs
- Package quantity
- 160 pcs
- Power
- 200 W
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element
- Method of operation
- Push button
- Colour
- White
- Halogen free
- Yes
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Frequency
- 50–60 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- No
- Serial dimmer
- No
- Applicable with movement sensor
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- Yes
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Nominal voltage
- 110–240 V
- Control voltage
- 8–230 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–2.5 mm²
- Device width
- 45 mm
- Device height
- 45.2 mm
- Device depth
- 20.3 mm
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- Min. depth of built-in installation box
- 25 mm
- App control via Bluetooth
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 7392971136783
- SAP 1200278365
- Code 82263350
Product Documentation
Document preview: Pressure-dim Round DALI/PUSH 200W (1360591) — Specification sheet
