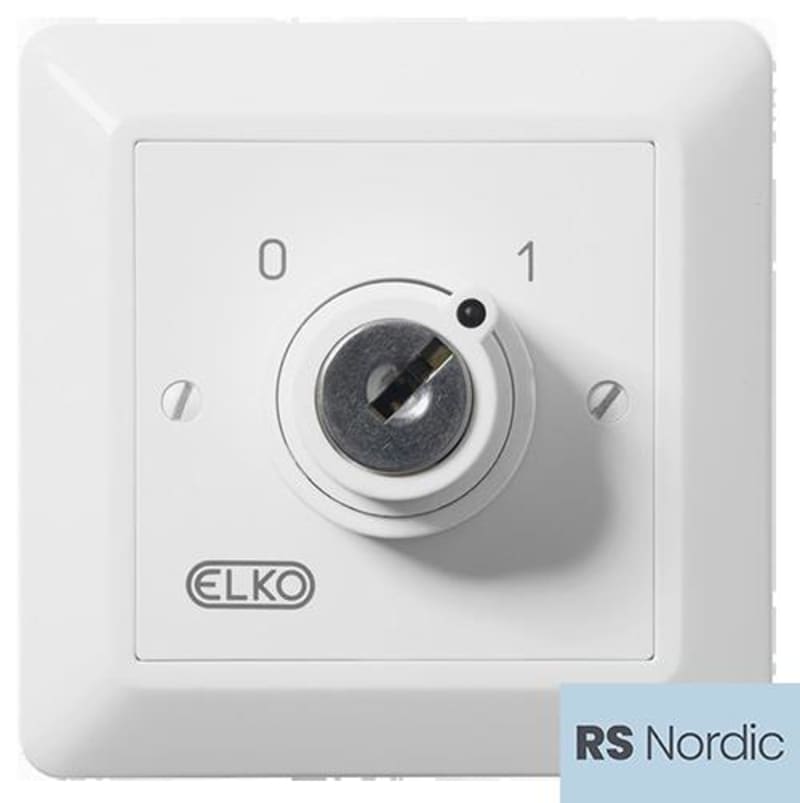

ELKO RS EKO30115 2-Pole Rotary Switch with Key, 3 A, White
Pricing
Request a quote
We reply within 24 hours
Product Description
The EKO30115 is a two-pole key-operated rotary switch from the ELKO RS Nordic series, providing a lockable disconnect where key control is required (max 3 A). Rated 250 V, it uses screw terminals and mounts flush on a single 84 mm module with a full white cover plate. An integrated glow lamp gives illumination when the switch is on.
Technical Specifications
- Manufacturer part number (MPN)
- EKO30115
- EAN / GTIN
- 7020161301153
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Number of poles
- 2P
- Wiring system
- Switch 2-pole
- Method of operation
- Key
- Assembly arrangement
- Basic element with full cover plate
- Number of modules (module system)
- 1
- Push button switch
- No
- Mounting method
- Flush-mounted
- Type of fastening
- Screw mounting
- With mounting plate
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- No
- Lighting
- Yes
- Function lighting
- Illuminated (on)
- Type of lighting
- Glow lamp
- Suitable for degree of protection (IP)
- IP21
- Impact strength
- Not available
- Nominal voltage
- 250 V
- Rated current
- 3 A
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Heating switch
- No
- Washing machine switch
- No
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 63 mm
- Built-in depth
- 33 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Min. depth of built-in installation box
- 38 mm
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Imprint/indication
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020161301153
- SAP 1200558045
- Code 82905918
