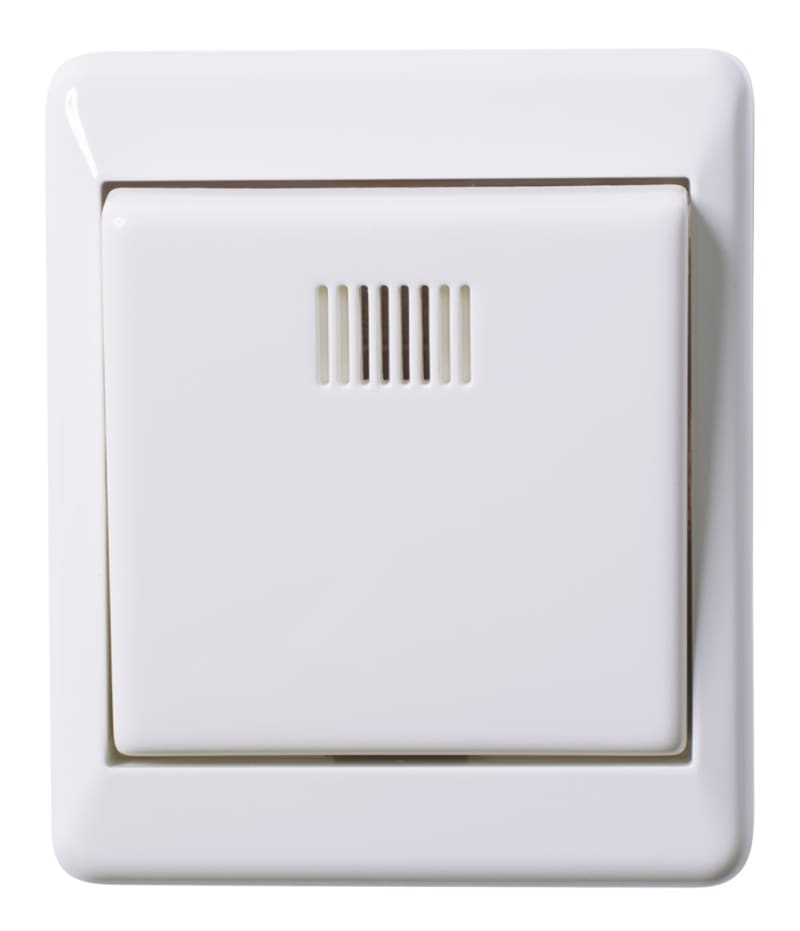

ELKO RS Nordic 1-Pole Impulse Switch with Light
Pricing
Request a quote
We reply within 24 hours
Product Description
ELKO EKO07569 RS Nordic 1-pole impulse switch with light, for installations where an impulse switch is required (for example, a staircase-timer relay). Rated 16 A at 250 V with screw terminals in a surface-mounted thermoplastic housing. IP21, glossy white finish RAL 9003.
Technical Specifications
- Manufacturer part number (MPN)
- EKO07569
- EAN / GTIN
- 7020160756909
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Wiring system
- Normally open contact (NO)
- Method of operation
- Rocker/button
- Assembly arrangement
- Basic element with complete housing
- Number of modules (module system)
- 1
- Push button switch
- Yes
- Number of rockers
- 1
- Mounting method
- Surface mounted
- Type of fastening
- Screw mounting
- With mounting plate
- No
- Material
- Plastic
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Surface finishing
- Glossy
- Colour
- White
- RAL-number (similar)
- 9003
- Label space/information surface
- No
- Lighting
- Yes
- Function lighting
- Illuminated (on)
- Type of lighting
- Glow lamp
- Suitable for degree of protection (IP)
- IP21
- Impact strength
- Not available
- Nominal voltage
- 250 V
- Rated current
- 16 A
- Switching current for fluorescent lamps
- 10 AX
- Monitoring contact
- No
- Connection type
- Screwed terminal
- Heating switch
- No
- Washing machine switch
- No
- Device width
- 71 mm
- Device height
- 84 mm
- Device depth
- 28 mm
- Compatible with Apple HomeKit
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7020160756909
- SAP 1200515489
- Code 82650005
Product Documentation
