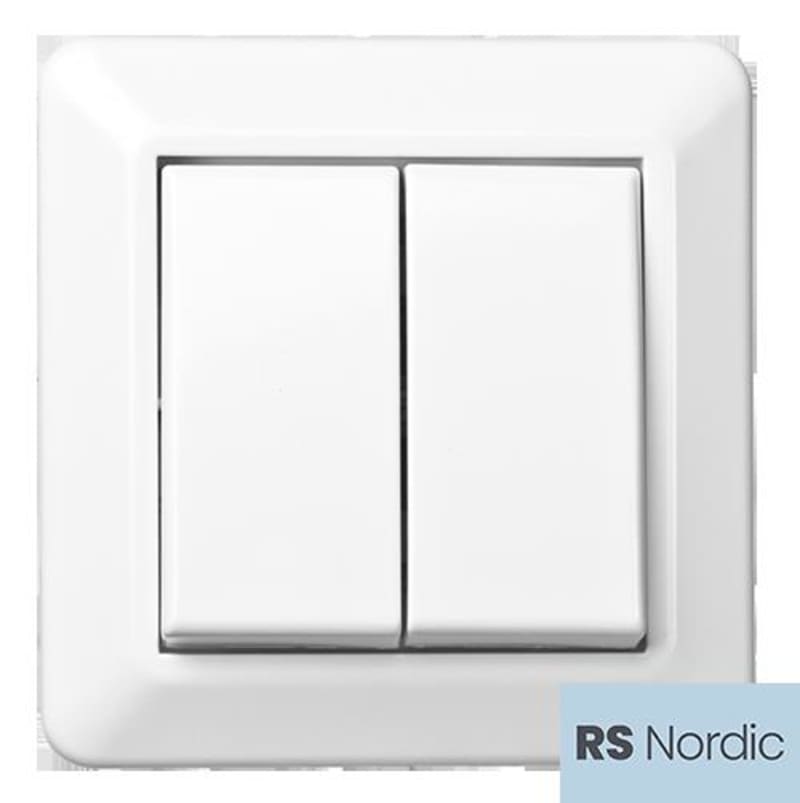

ELKO RS Nordic Double Two-Way Switch 16 A 250 V

ELKO EKO30106 is an RS Nordic double two-way rocker switch used where lighting must be controlled from two or more locations. It is rated 16 A at 250 V with a switching current of 10 AX for fluorescent loads and mounts flush in a standard 1-module box with screwed terminals. The device is finished in glossy white thermoplastic and offers IP21 protection for residential and light commercial installations.

Manufacturer part number (MPN)

EKO30106

EAN / GTIN

7020161301061

HS code

8536.90

Sales unit

pcs

Package quantity

5 pcs

Wiring system

Two-way switch

Method of operation

Rocker/button

Assembly arrangement

Basic element with full cover plate

Number of modules (module system)

1

Push button switch

No

Number of rockers

2

Mounting method

Flush-mounted

Type of fastening

Screw mounting

With mounting plate

Yes

Material

Plastic

Material quality

Thermoplastic

Halogen free

Yes

Anti-bacterial treatment

No

Surface protection

Untreated

Surface finishing

Glossy

Colour

White

RAL-number (similar)

9003

Label space/information surface

No

Lighting

No

Function lighting

Illuminated (on)

Type of lighting

Glow lamp

Suitable for degree of protection (IP)

IP21

Impact strength

Not available

Nominal voltage

250 V

Rated current

16 A

Switching current for fluorescent lamps

10 AX

Monitoring contact

No

Connection type

Screwed terminal

Heating switch

No

Washing machine switch

No

Device width

84 mm

Device height

84 mm

Device depth

29 mm

Built-in depth

11.5 mm

HS Code

8536.90
