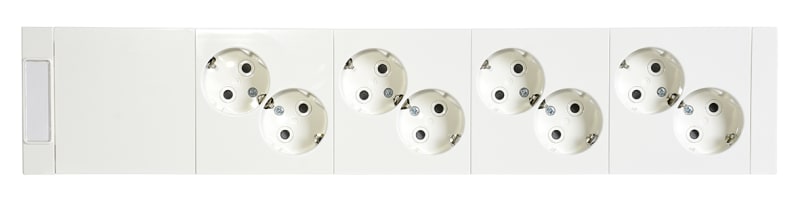

Elis Elektro AUD14-214 Socket Outlet Set 8-Way White
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro AUD14-214 is an 8-way flush-mounted socket outlet set in white with Schuko CEE 7/3 (type F) protective-contact outlets. Rated 16 A / 250 V, halogen-free, single-phase, with push-in clamp terminals and loop-through wiring for IP20 installations. The unit is 435 mm wide with a glossy RAL 9010 finish and snap-mount fastening.
Technical Specifications
- Manufacturer part number (MPN)
- AUD14-214
- EAN / GTIN
- 6438199002170
- Sales unit
- pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Cover
- Complete housing
- Number of units
- 1
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- With signal lamp
- No
- Number of socket outlets
- 8
- Number of phases
- 1
- With enhanced contact protection
- No
- Frequency
- 50 Hz
- With on/off switch
- No
- Label space/information surface
- Yes
- Eject-mechanism
- No
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Snap mounting (engagement)
- RAL-number (similar)
- 9010
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Phase pickup
- L1
- Device width
- 435 mm
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 6438199002170
- SAP 1000515587
- Code 8631554
Product Documentation
