Elis Elektro
Nipple M20X1,5 Ex-db/eb/tb ORION (8,5-16
Part number1255774EAN / GTIN7070613073992HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

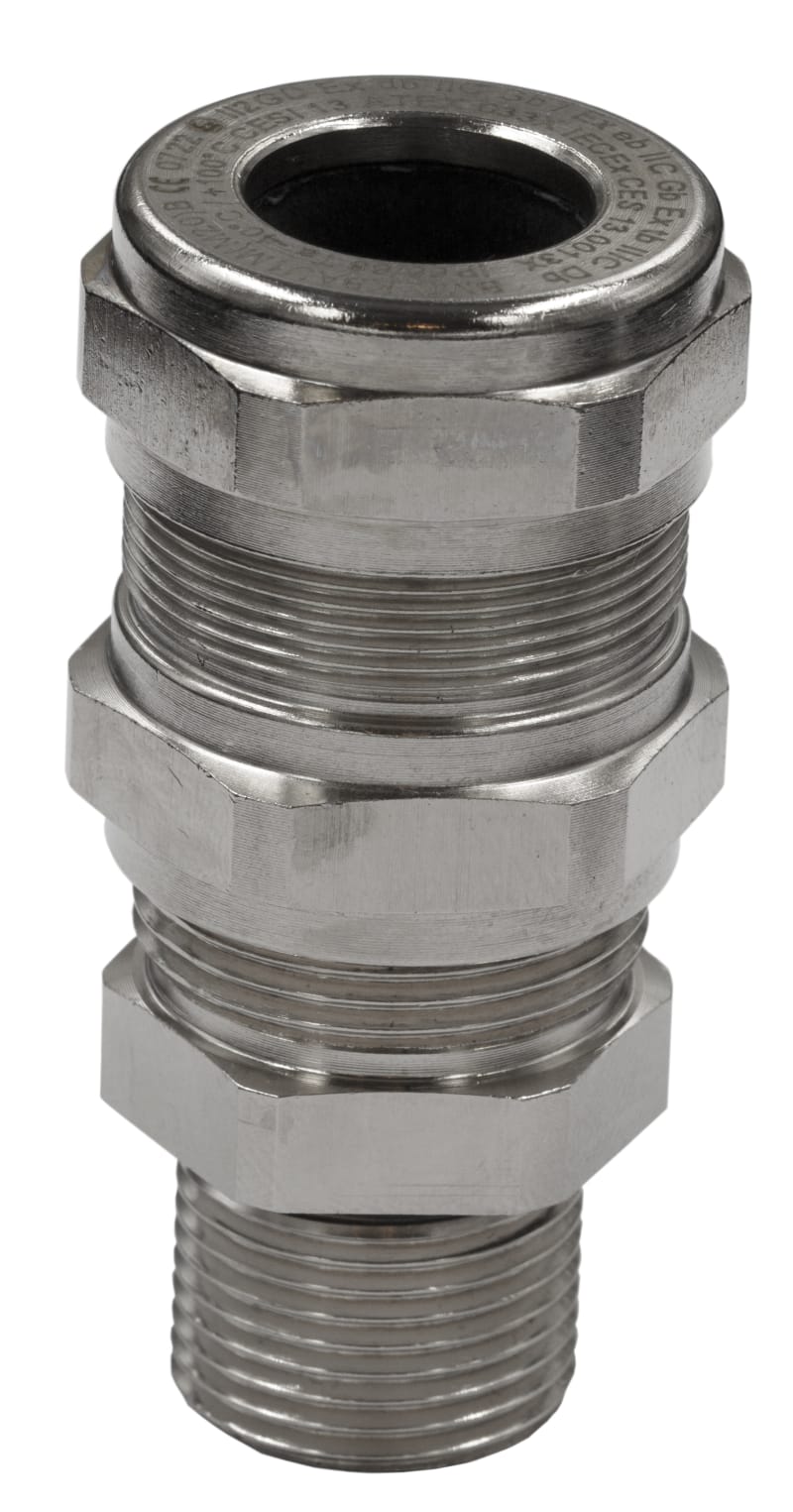

Elis Elektro 1255774 Nipple M20x1,5 Ex-db/eb/tb ORION (8,5-16).
Technical Specifications
- Manufacturer part number (MPN)
- 1255774
- EAN / GTIN
- 7070613073992
- Sales unit
- pcs
- Package quantity
- 3000 pcs
- EL number
- 1255774
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 39174000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 51.5 mm
- Product width
- 31.5 mm
- Product length / depth
- 31.5 mm
- Net weight
- 128 g
- Product volume
- 0.051100875 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 31.5
- Nominal thread size metric/PG
- 20
- Wrench width (mm)
- 25
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 18
- Working temperature (°C)
- -40 to 100
- Shock resistant
- Yes
- With strain relief
- Yes
- Screened
- Yes
- EMC-version
- Yes
- Snapping in opening
- Yes
- Multi seal area
- Yes
- Explosion-tested version
- Yes
- Glass-fibre reinforced
- No
- Halogen free
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Suitable for cable diameter
- 8.5–16 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP68
- Operating temperature
- -40–100 °C
- Material sealing
- Silicone
- Colour
- Nickel
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613073992
- SAP 1200754704
- Code 83896746
Product Documentation
Document preview: Nipple M20x1,5 Ex-db/eb/tb ORION (8,5-16 (1255774) — Data Sheet (OEM, Norwegian)
