Elis Elektro
Nipple WADI-TEC M32L 15-24
Part number1250253EAN / GTIN7070613004484HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

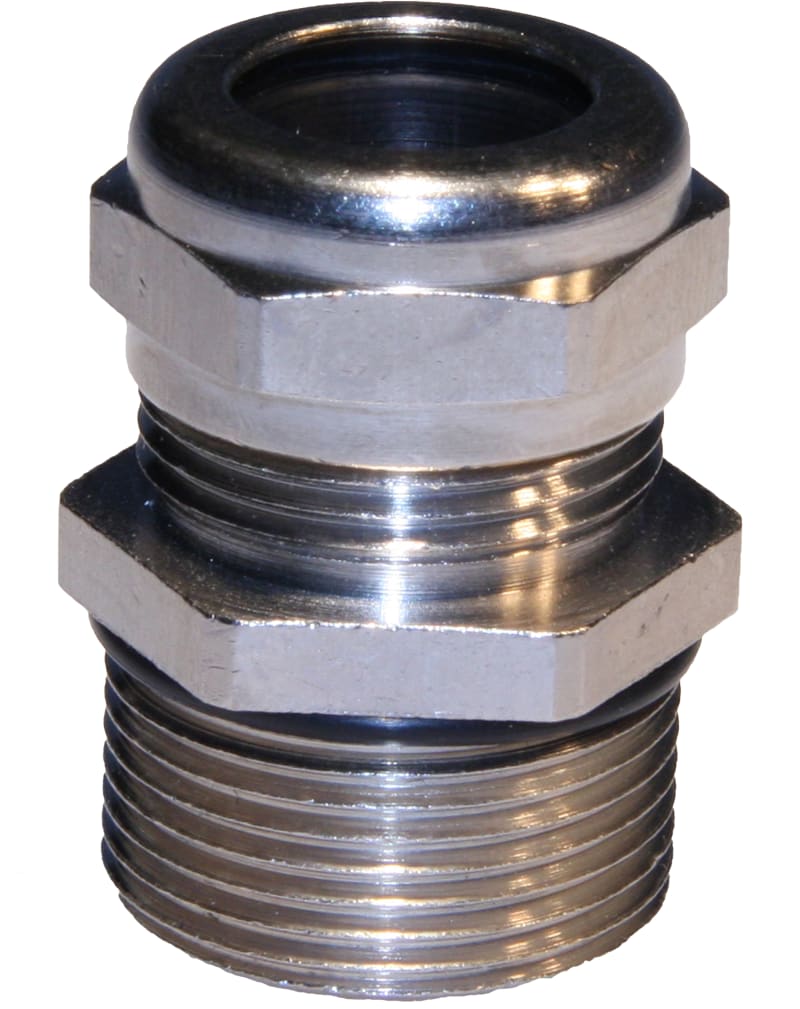

Elis Elektro 1250253 Nipple WADI-TEC M32L 15-24.
Technical Specifications
- Manufacturer part number (MPN)
- 1250253
- Sales unit
- pcs
- Package quantity
- 20 pcs
- EL number
- 1250253
- EAN / GTIN
- 7070613004484
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- France
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 51 mm
- Product width
- 40 mm
- Product length / depth
- 40 mm
- Net weight
- 150 g
- Product volume
- 0.0816 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 40
- Suitable for cable diameter (mm)
- 15 to 24
- Nominal thread size metric/PG
- 32
- Wrench width (mm)
- 40
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 14.5
- Working temperature (°C)
- -30 to 120
- Halogen free
- Yes
- With strain relief
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP68
- Snapping in opening
- No
- Operating temperature
- -30–120 °C
- For Ex-zone gas
- None
- For armoured cable
- No
Standards & Compliance
- HS Code
- 7412.20
Cross References
- 7070613004484
Product Documentation
Document preview: Nipple WADI-TEC M32L 15-24 (1250253) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro
Corner Bracket, Hot-Dip Galvanised
MP-245Z
Elis Elektro
Wire Mesh Tray 75 Z4 L=2,5M
MP-720Z4
Elis Elektro
Terminal board KB 2S
G1054362
Elis Elektro

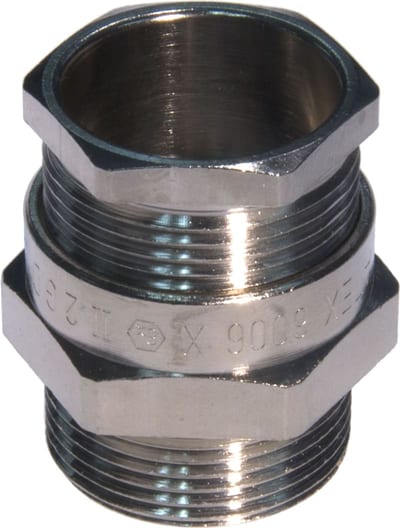

Nipple EX/EMC M50 25-30
Ø=25-30mm
Elis Elektro

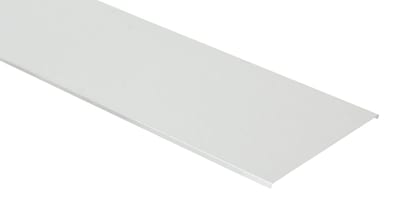

Cover 400mm Acid-resistant L=1,25M
MP-460R
Elis Elektro

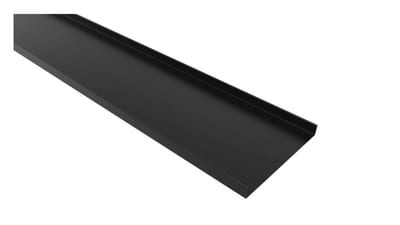

Cable Tray sealed 400mm Black 2M
MP-360SV
Elis Elektro

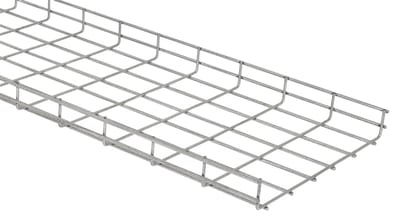

Wire Mesh Tray 400 Z4 L=2,5M
MP-725Z4
Elis Elektro

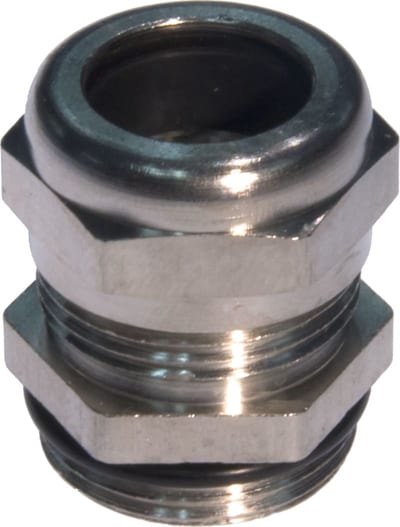

Nipple WADI-TEC M80 55-74
