Elis Elektro

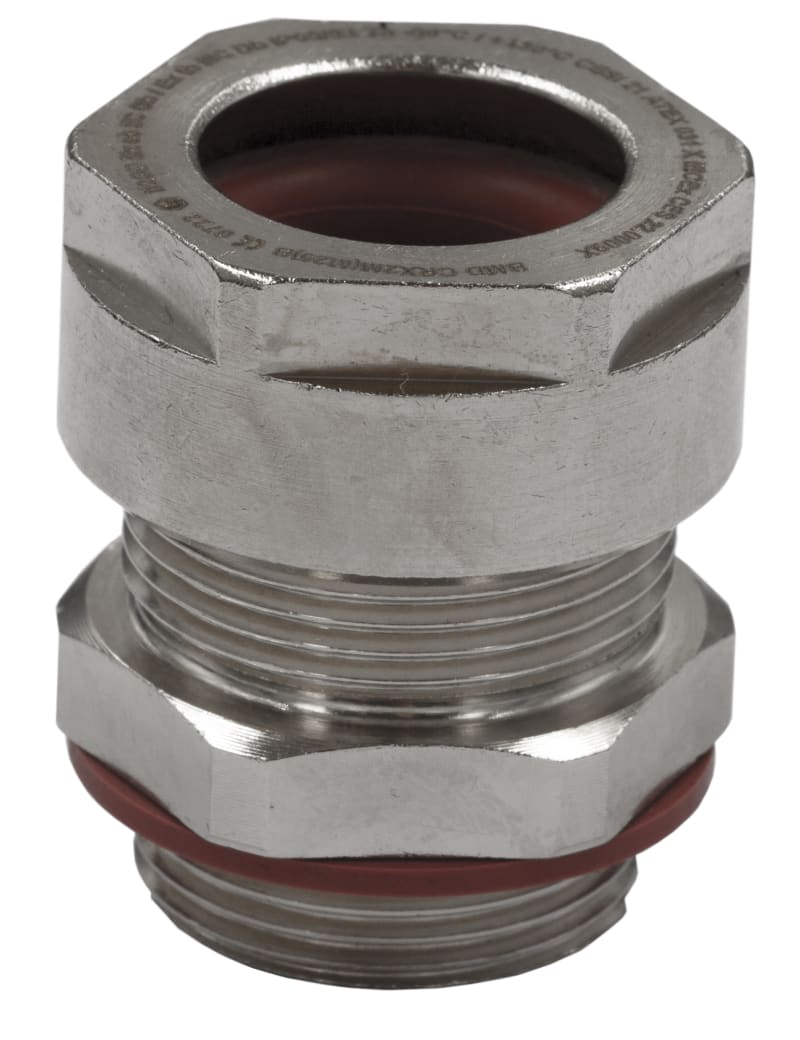

Nipple M20X1,5 Ex-eb/tb CRUX (9-16)
Part number1255764EAN / GTIN7070613073954HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255764 Nipple M20x1,5 Ex-eb/tb CRUX (9-16).
Technical Specifications
- Manufacturer part number (MPN)
- 1255764
- EAN / GTIN
- 7070613073954
- Sales unit
- pcs
- Package quantity
- 3000 pcs
- EL number
- 1255764
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 39174000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 32.3 mm
- Product width
- 26.5 mm
- Product length / depth
- 26.5 mm
- Net weight
- 54 g
- Product volume
- 0.022682675 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 26.5
- Suitable for cable diameter (mm)
- 9 to 16
- Nominal thread size metric/PG
- 20
- Wrench width (mm)
- 24
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 9
- Working temperature (°C)
- -60 to 130
- Halogen free
- Yes
- With strain relief
- Yes
- Snapping in opening
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- Pressure-compensating
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP68
- Operating temperature
- -60–130 °C
- For armoured cable
- No
- Material sealing
- Silicone
- Colour
- Nickel
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613073954
- SAP 1200754692
- Code 83896730
Product Documentation
Document preview: Nipple M20x1,5 Ex-eb/tb CRUX (9-16) (1255764) — Data Sheet (OEM, Norwegian)
