Elis Elektro
Nipple EX/EMC PG16 12-14
Part number1249204EAN / GTIN7070613002619HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

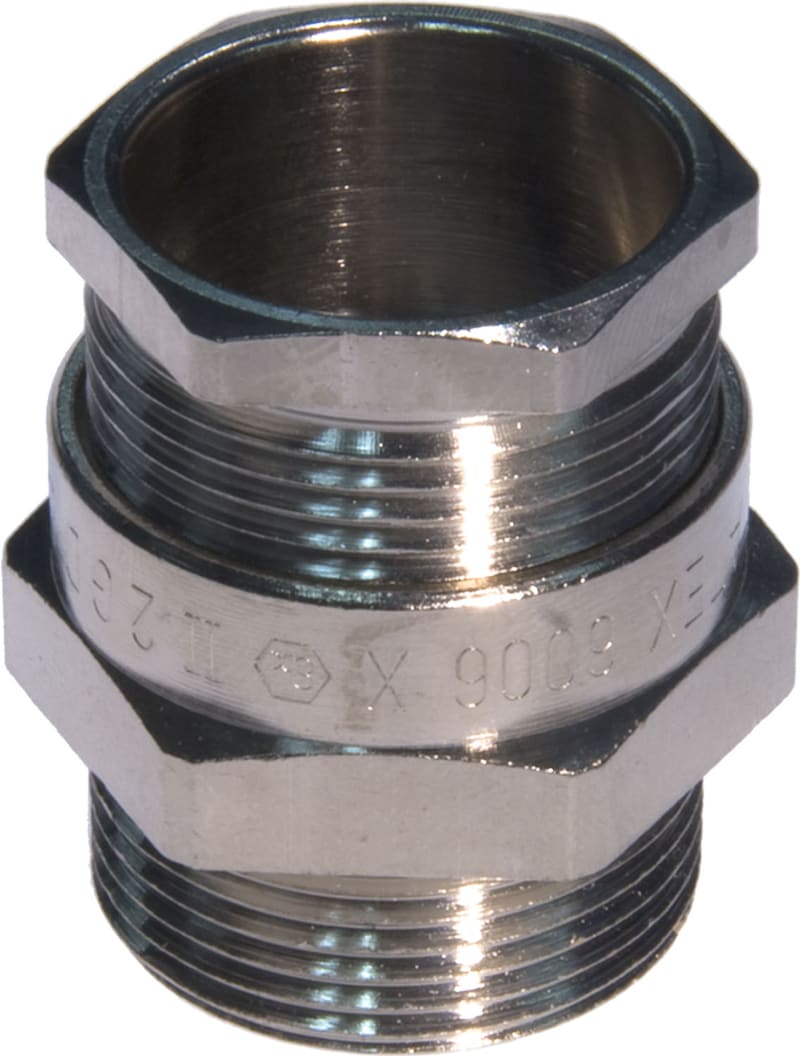

Elis Elektro 1249204 Nipple EX/EMC PG16 12-14.
Technical Specifications
- Manufacturer part number (MPN)
- 1249204
- Sales unit
- pcs
- Package quantity
- 50 pcs
- EL number
- 1249204
- EAN / GTIN
- 7070613002619
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 33.5 mm
- Product width
- 27 mm
- Product length / depth
- 27 mm
- Net weight
- 240 g
- Product volume
- 0.0244215 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 27
- Suitable for cable diameter (mm)
- 12 to 14
- Nominal thread size metric/PG
- 16
- Wrench width (mm)
- 22
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 12
- Working temperature (°C)
- -20 to 55
- Halogen free
- Yes
- EMC-version
- Yes
- Explosion-tested version
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- With strain relief
- No
- Screened
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- For wall thickness
- 0.1–7.5 mm
- Thread type
- PG
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP66
- Snapping in opening
- No
- Operating temperature
- -20–55 °C
- For Ex-zone gas
- 2
- For armoured cable
- No
- Material sealing
- CR (neoprene)
Standards & Compliance
- HS Code
- 7412.20
Cross References
- 7070613002619
Product Documentation
Document preview: Nipple EX/EMC PG16 12-14 (1249204) — Data Sheet (OEM, Norwegian)
