Nipple SIB-TEC EX M20 10-14mm
Part number1254623EAN / GTIN7070613016838HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1254623 Nipple SIB-TEC EX M20 10-14.
Technical Specifications
- Manufacturer part number (MPN)
- 1254623
- Sales unit
- pcs
- Package quantity
- 50 pcs
- EL number
- 1254623
- EAN / GTIN
- 7070613016838
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- France
- HS code
- 39174000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 43 mm
- Product width
- 27 mm
- Product length / depth
- 27 mm
- Net weight
- 13.4 g
- Product volume
- 0.031347 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 27
- Suitable for cable diameter (mm)
- 0 to 0
- Nominal thread size metric/PG
- 20
- Wrench width (mm)
- 27
- RAL-number
- 9001
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 10
- Working temperature (°C)
- -35 to 95
- Halogen free
- Yes
- With strain relief
- Yes
- Explosion-tested version
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Surface protection
- Untreated
- Degree of protection (IP)
- IP68
- Operating temperature
- -35–95 °C
- For Ex-zone gas
- 2
- For armoured cable
- No
- Colour
- Black
Standards & Compliance
- HS Code
- 3917.40
Cross References
- 7070613016838
Product Documentation
Document preview: Nipple SIB-TEC EX M20 10-14mm (1254623) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro
Fastening plate 180X175 hole Z4
MP-112Z4
Elis Elektro
Earthing Clamp TBM Steel
TBM1
Elis Elektro
Corrugated Conduit NW 13 10M
L1080135
Elis Elektro
Locknut M20 Acid-Resistant
1249215
Elis Elektro
Stand for enledere (1002875)
Elis Elektro

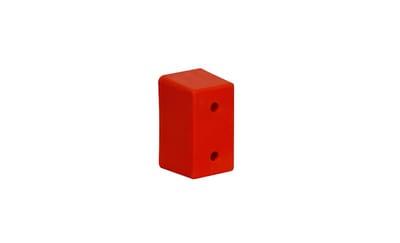

End protector 21X41MM
MP-240P
Elis Elektro

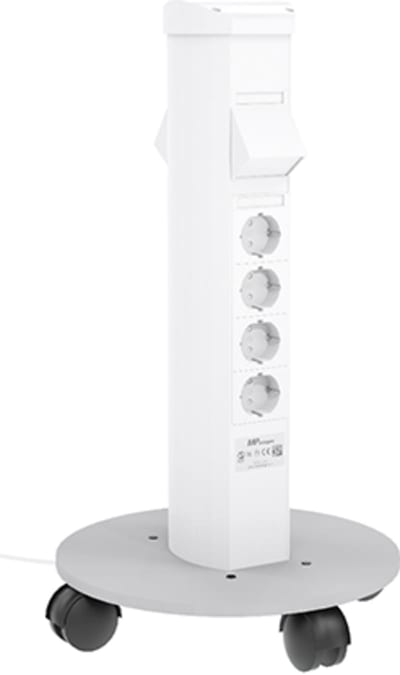

MP-Duo Mobile Power Column on Wheels, 8 Socket Outlets, White (MP-U615V)
Elis Elektro

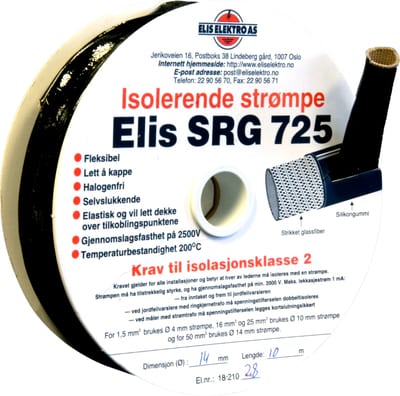

Sleeve 4mm Brown 200M SRG725
