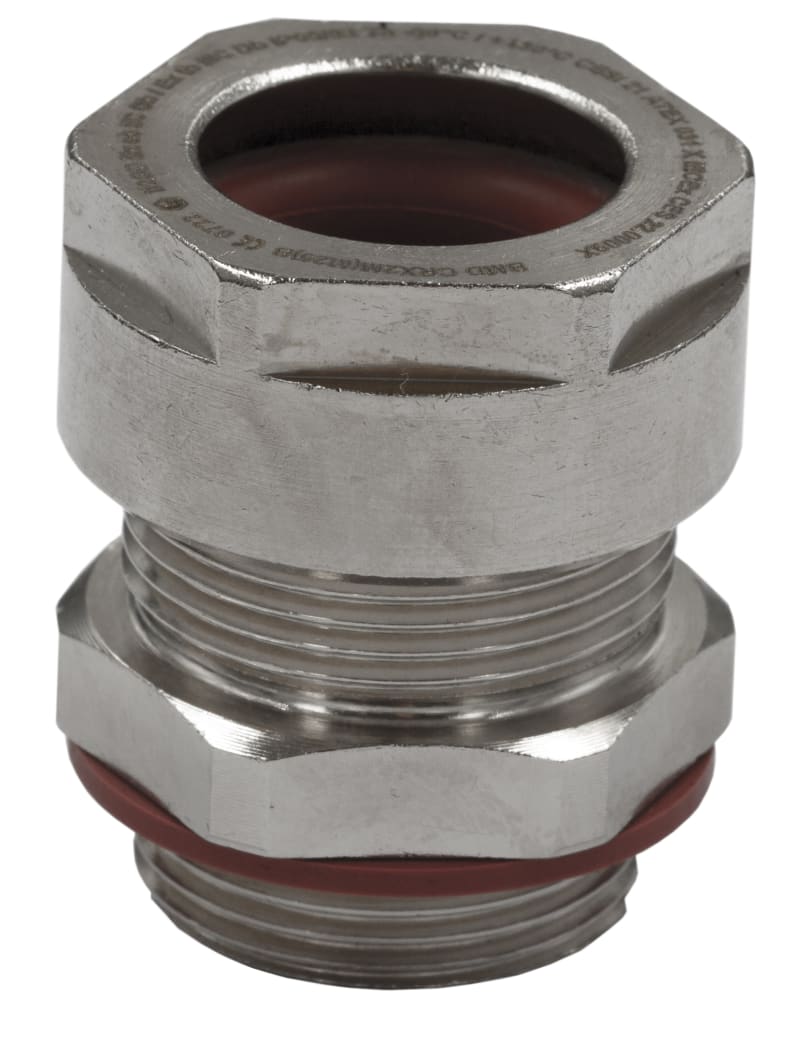

Nipple M20X1,5 Ex-eb/tb CRUX (5,5-12)
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255763 Nipple M20x1,5 Ex-eb/tb CRUX (5,5-12).
Technical Specifications
- Manufacturer part number (MPN)
- 1255763
- EAN / GTIN
- 7070613073947
- Sales unit
- pcs
- Package quantity
- 3000 pcs
- Thread size
- M20x1.5
- Connection type to housing
- Screwing
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 20
- Pitch thread
- 1.5 mm
- Thread length
- 9 mm
- Wrench width
- 22 mm
- Hexagon angular dimension
- 26.5 mm
- Suitable for cable diameter
- 5.5–12 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- Yes
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -60–130 °C
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Material sealing
- Silicone
- Colour
- Nickel
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613073947
- SAP 1200754691
- Code 83896742
Product Documentation
More from Elis Elektro
Elis Elektro

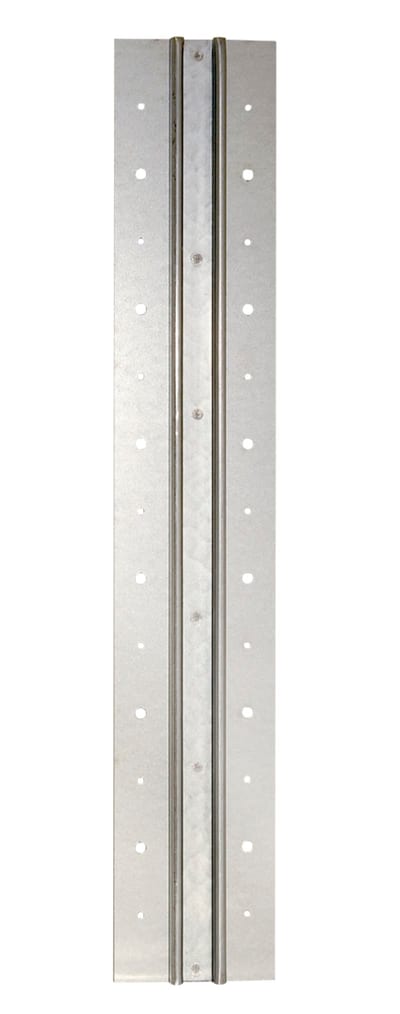

Elis Elektro MP-030S Wall Rail for Porous Substrate Sendzimir 700 mm
Elis Elektro

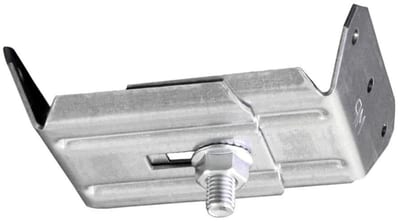

Sheet-Metal Ceiling Bracket 95-150mm White MP-982V
1353777
Elis Elektro

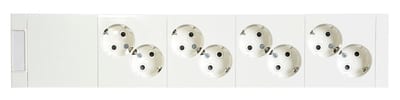

Elis Elektro AUD14-214 Socket Outlet Set 8-Way White
Elis Elektro

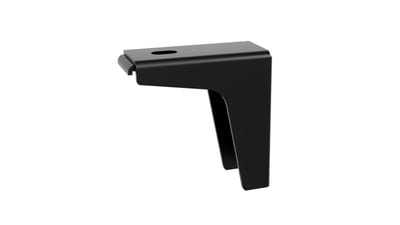

Ceiling Bracket for anchor rail Black
MP-230SV
Elis Elektro

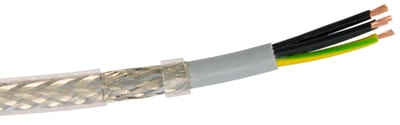

Elis Elektro 1002306 ÖPVC-JZ-CY 4G35 mm² Screened Control Cable
Elis Elektro

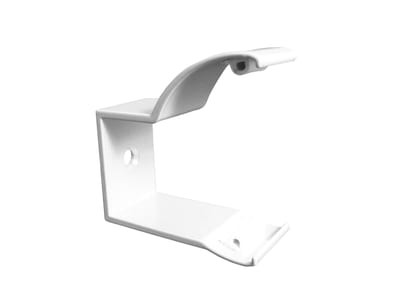

Wall/bordfeste MP-Flex White MP-U013V
1205040
Elis Elektro

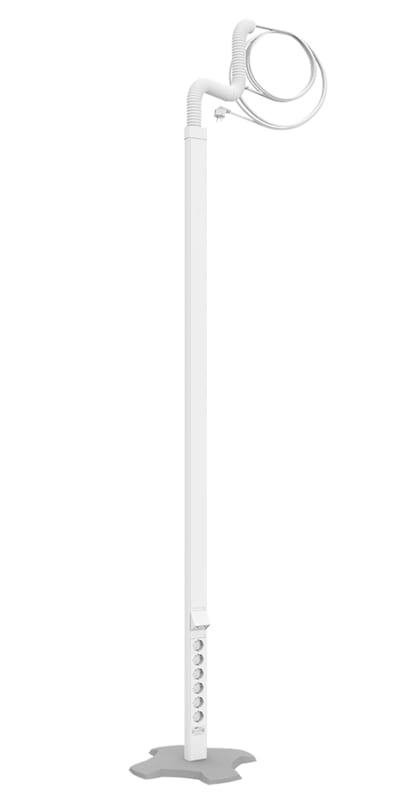

Elis Elektro MP-U521V MP-Flex Service Pillar 2100 mm, White, 6 Outlets
Elis Elektro

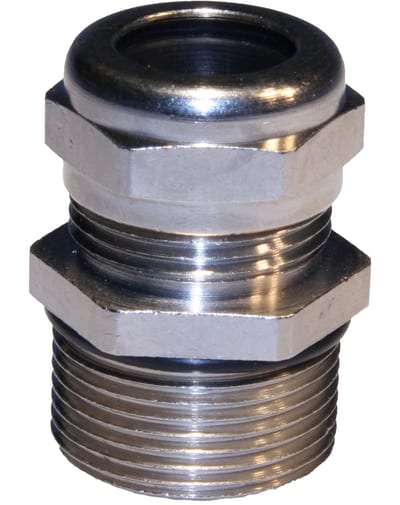

Nipple WADI-TEC M16L 5-8
