Elis Elektro

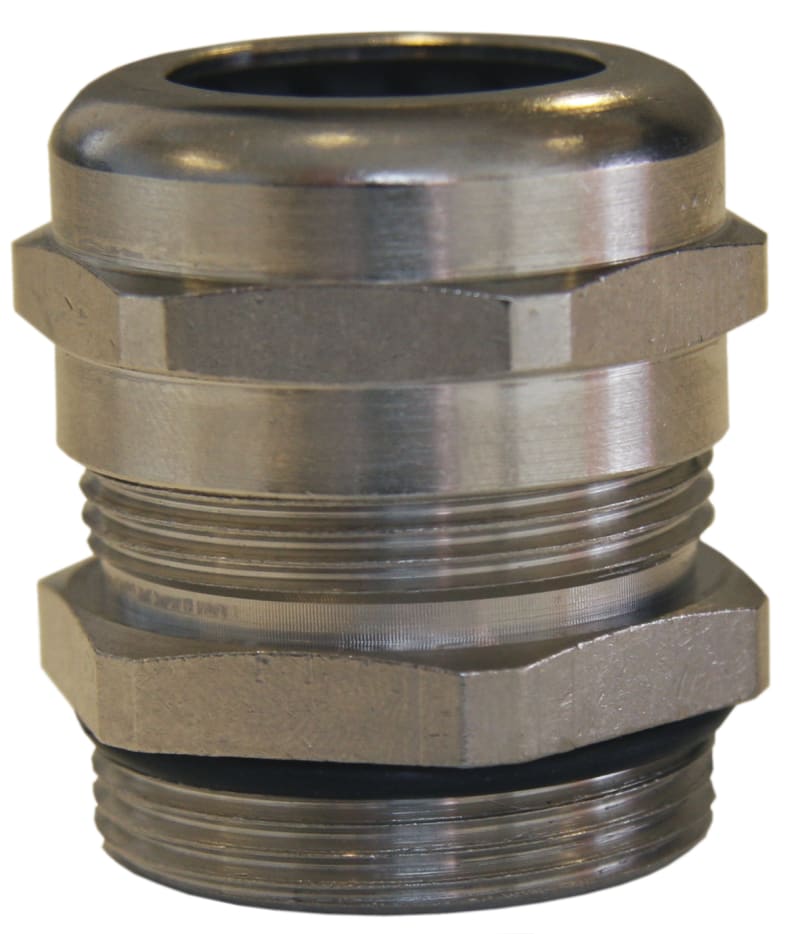

Nipple EEXE EMC M25 9-16
Part number1255625EAN / GTIN7070613070618HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255625 Nipple EEXE EMC M25 9-16.
Technical Specifications
- Manufacturer part number (MPN)
- 1255625
- EAN / GTIN
- 7070613070618
- Sales unit
- pcs
- EL number
- 1255625
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- France
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 35 mm
- Product width
- 27 mm
- Product length / depth
- 27 mm
- Net weight
- 46 g
- Product volume
- 0.025515 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 27
- Suitable for cable diameter (mm)
- 9 to 16
- Nominal thread size metric/PG
- 25
- Wrench width (mm)
- 27
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 7
- Working temperature (°C)
- -40 to 100
- Halogen free
- Yes
- With strain relief
- Yes
- EMC-version
- Yes
- Explosion-tested version
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- Screened
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- For wall thickness
- 0.1–3.5 mm
- Thread type
- Metric
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP68
- Operating temperature
- -40–100 °C
- For Ex-zone gas
- 2
- For armoured cable
- No
- Material sealing
- CR (neoprene)
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613070618
- SAP 1200927219
- Code 84212136
Product Documentation
Document preview: Nipple EEXE EMC M25 9-16 (1255625) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro
Elis Elektro U500V MP-Flex Service Pole, 2100 mm, White
Elis Elektro
Floor Box bestykket 261X186 GB1-186-V-G
1205158
Elis Elektro
LIHCH 6X0,75 mm² Halogen-free
1004056
Elis Elektro
Elis Elektro ØPVC-OZ 4x0.75 mm² Unshielded Numbered Control Cable
1002061
Elis Elektro

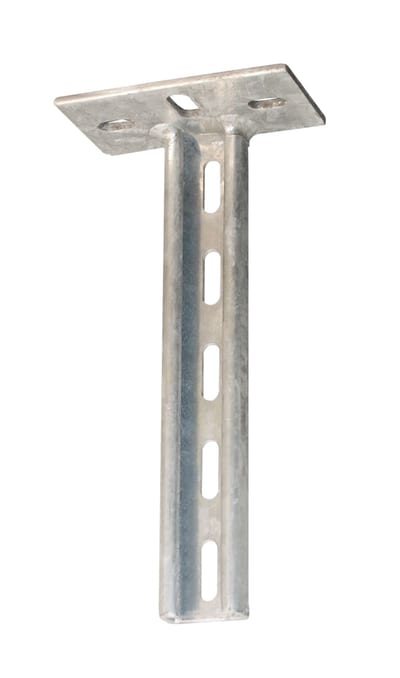

Ceiling Pendant MP-V Hot-dip galvanised 0,5M
MP-966Z
Elis Elektro

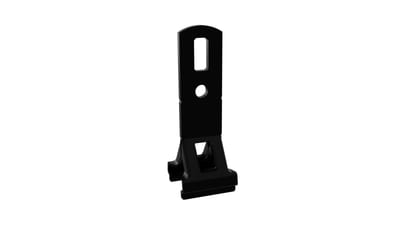

Pendelskaft 100-600mm Black
MP-931SV
Elis Elektro

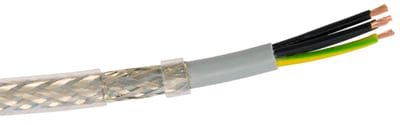

Elis Elektro ØPVC-JZ-CY 4G25 mm² Cu-Screened Control Cable
1002955
Elis Elektro

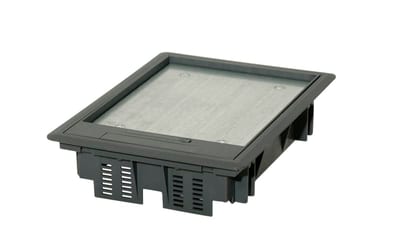

Install.unit 8 grey UEKD2 V-G
