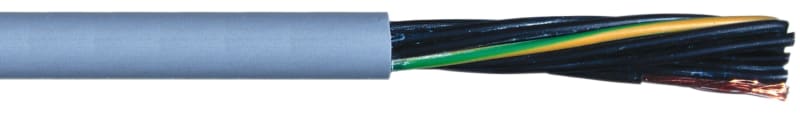

Elis Elektro ØPVC-OZ 4x0.75 mm² Unshielded Numbered Control Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1002061 is a ØPVC-OZ flexible control cable with four cores of 0.75 mm², unshielded and with individually numbered conductors. The PVC-insulated cable is rated 300/500 V with an outer diameter of about 6.2 mm and a weight of 80 kg/km, suitable for occasional-movement applications. Numbered conductor identification simplifies termination and fault-finding in multi-core control circuits. Typical use is for wiring machine controls, conveyor systems, and low-voltage plant where routine flexibility is required.
Technical Specifications
- Manufacturer part number (MPN)
- 1002061
- EAN / GTIN
- 7070613022051
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1002061
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 80 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 0.75
- Nominal voltage U0 (V)
- 300
- Nominal cross section conductor (AWG) (kcmil)
- 19
- Cable width approximate (mm)
- 6.2
- Cable height approximate (mm)
- 6.2
- Number of cores
- 4
- Weight (kg/km)
- 80
- Min. permitted bending radius, moving application with forced guidance (mm)
- 103.5
- Min. permitted bending radius, moving application/free movement (mm)
- 103.5
- Outer diameter approximate (mm)
- 6.2
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 27.6
- Permitted cable outer temperature during assembling/handling (°C)
- -15 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- Torsion resistant
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613022051
- SAP 1200827408
- Code 84015430
Product Documentation
