Elis Elektro

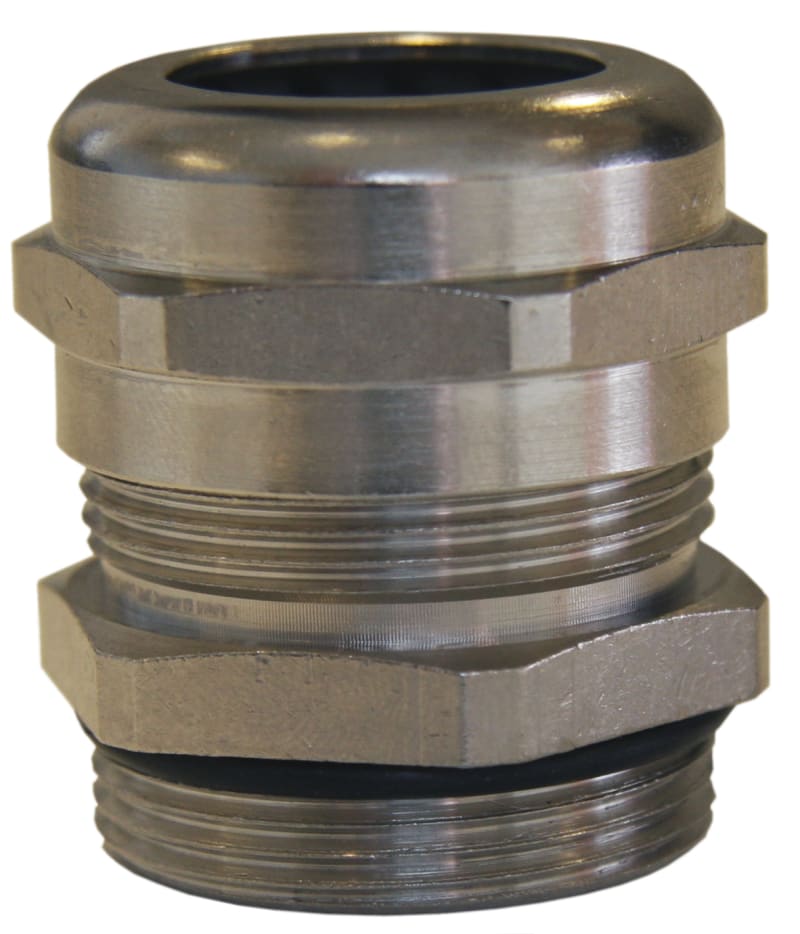

Nipple EEXE EMC M16 5-9,5
Part number1255623EAN / GTIN7070613070595HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255623 Nipple EEXE EMC M16 5-9,5.
Technical Specifications
- Manufacturer part number (MPN)
- 1255623
- EAN / GTIN
- 7070613070595
- Sales unit
- pcs
- Thread size
- M16
- Connection type to housing
- Screwing
- For wall thickness
- 0.1–2 mm
- Thread type
- Metric
- Nominal thread size metric/PG
- 16
- Pitch thread
- 1.5 mm
- Thread length
- 5 mm
- Wrench width
- 17 mm
- Hexagon angular dimension
- 17 mm
- Suitable for cable diameter
- 5–9.5 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -40–100 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 2
- For armoured cable
- No
- EMC-version
- Yes
- Screened
- No
- Material sealing
- CR (neoprene)
- Country of origin
- France
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613070595
- SAP 1200927218
- Code 84212134
Product Documentation
Document preview: Nipple EEXE EMC M16 5-9,5 (1255623) — Specification sheet
More from Elis Elektro
Elis Elektro
Fastening plate wire mesh tray Acid-resistant
MP-738R
Elis Elektro
Reducer M40-M32 EX Polyamide
1254614
Elis Elektro
Recessed channel 125X65MM AL/HV 3M
TB1032-3
Elis Elektro
Wire Mesh Tray 400 H110 SS L=2,5M MP-725HR
1354124
Elis Elektro
Pendant Rail L=0,5M White
MP-912V
Elis Elektro
Fastening plate with junction box IP44 MP-739SG
Elis Elektro

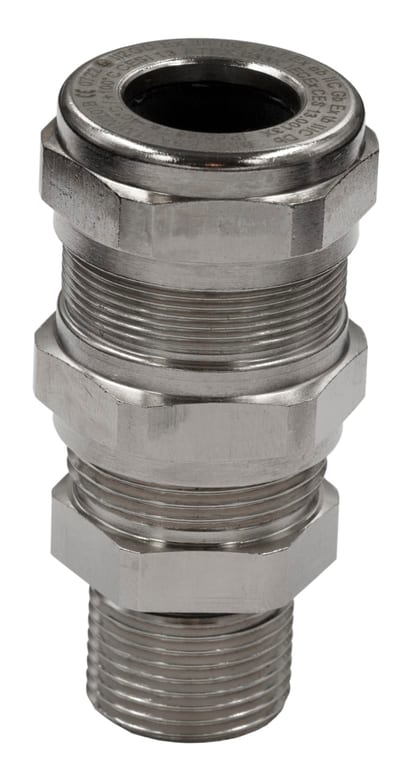

Nipple M32X1,5 Ex-db/eb/tb ORION (20-33)
