Elis Elektro

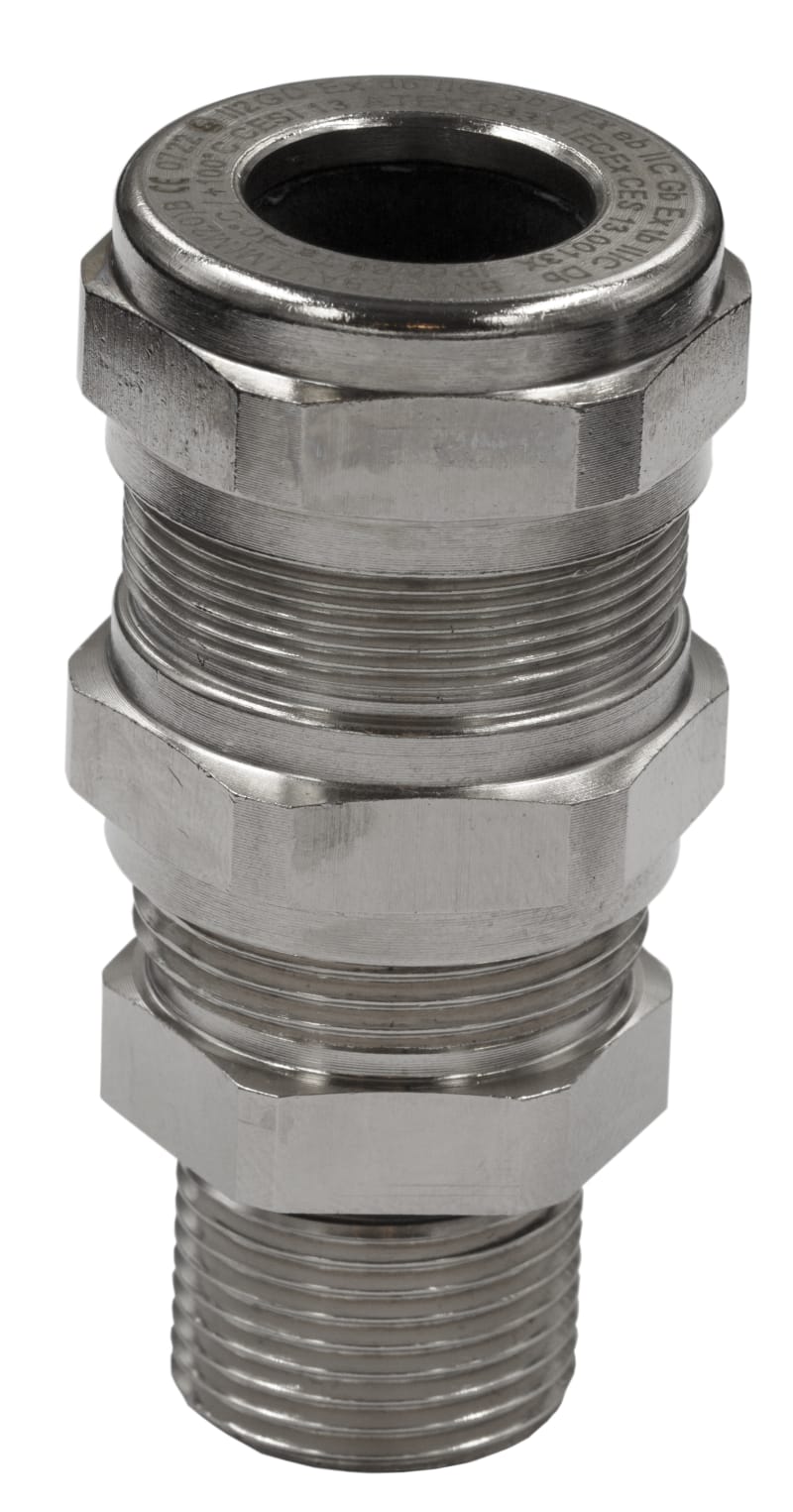

Nipple M32X1,5 Ex-db/eb/tb ORION (20-33)
Part number1255777EAN / GTIN7070613074036HS code3917.40
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1255777 Nipple M32x1,5 Ex-db/eb/tb ORION (20-33).
Technical Specifications
- Manufacturer part number (MPN)
- 1255777
- EAN / GTIN
- 7070613074036
- Sales unit
- pcs
- Package quantity
- 3000 pcs
- Thread size
- M32x1.5
- Connection type to housing
- Screwing
- Thread type
- Metric
- Nominal thread size metric/PG
- 32
- Pitch thread
- 1.5 mm
- Thread length
- 18 mm
- Wrench width
- 48 mm
- Hexagon angular dimension
- 57 mm
- Suitable for cable diameter
- 20–33 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- No
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- Yes
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- Yes
- Multi seal area
- Yes
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -40–100 °C
- Explosion-tested version
- Yes
- EMC-version
- Yes
- Screened
- Yes
- Material sealing
- Silicone
- Colour
- Nickel
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 7070613074036
- SAP 1200754707
- Code 83896741
Product Documentation
Document preview: Nipple M32X1,5 Ex-db/eb/tb ORION (20-33) (1255777) — Specification sheet
More from Elis Elektro
Elis Elektro

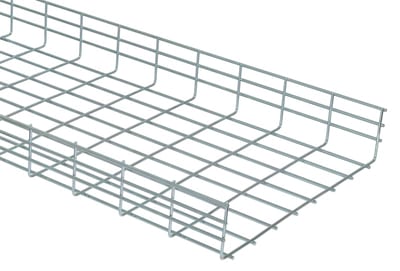

Wire Mesh Tray 500 H110 SS L=2,5M MP-726HR
1354125
Elis Elektro

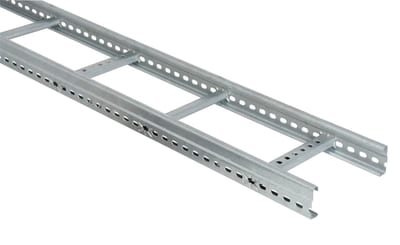

Cable ladder PZ 200 Hot-dip galvanised 6M
MP-152PZ
Elis Elektro
Floor Box aluminium round Ø133 BODO N
BODO T-G
Elis Elektro
Cable ladder PZ 300 Hot-dip galvanised 6M
MP-153PZ
Elis Elektro

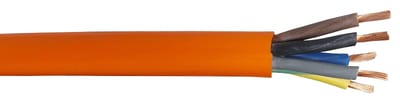

H07 BQ-F SUB4 5G1,5 mm²
1021615
Elis Elektro

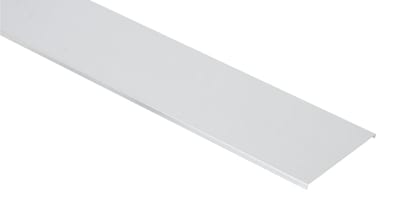

Cover 300mm Sendz L=2M
MP-450S
Elis Elektro

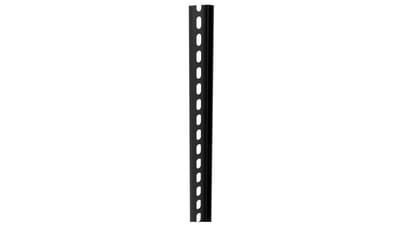

Pendant Rail L=3M Black
MP-910SV
Elis Elektro

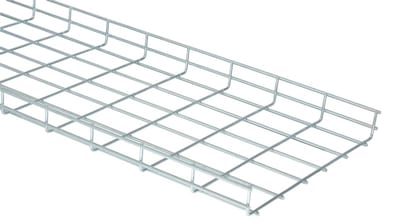

Wire Mesh Tray 400 Els L=2,5M
