Elis Elektro

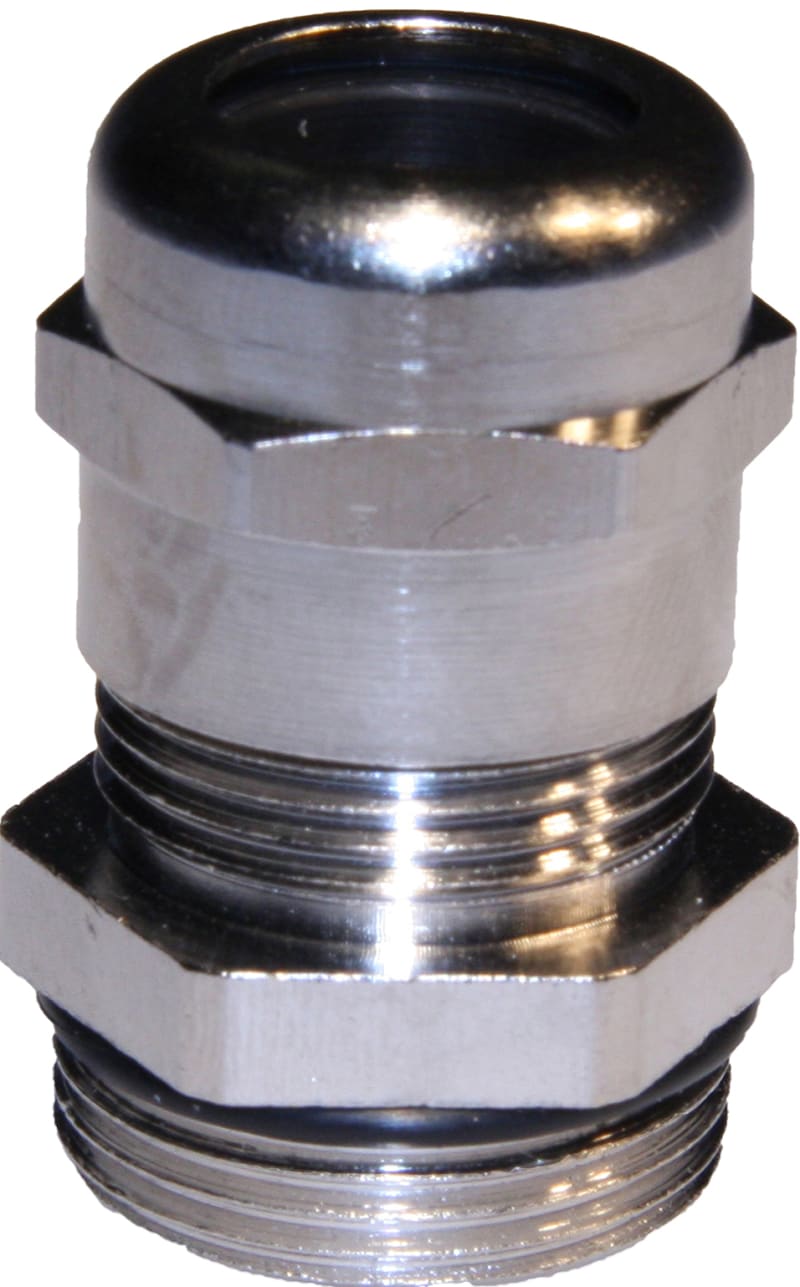

Nipple WADI-TEC EMC M40 24-30
Part number1249278EAN / GTIN7070613012700HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1249278 Nipple WADI-TEC EMC M40 24-30.
Technical Specifications
- Manufacturer part number (MPN)
- 1249278
- EAN / GTIN
- 7070613012700
- Sales unit
- pcs
- Package quantity
- 10 pcs
- EL number
- 1249278
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- France
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 67 mm
- Product width
- 50 mm
- Product length / depth
- 50 mm
- Net weight
- 300 g
- Product volume
- 0.1675 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 50
- Suitable for cable diameter (mm)
- 24 to 30
- Nominal thread size metric/PG
- 40
- Wrench width (mm)
- 50
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 8.5
- Working temperature (°C)
- -25 to 120
- Halogen free
- Yes
- With strain relief
- Yes
- EMC-version
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- Screened
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Multi seal area
- No
- Flat cable coupling
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP68
- Snapping in opening
- No
- Operating temperature
- -25–120 °C
- For Ex-zone gas
- None
- For armoured cable
- No
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613012700
- SAP 1200335999
- Code 82334642
Product Documentation
Document preview: Nipple WADI-TEC EMC M40 24-30 (1249278) — Data Sheet (OEM, Norwegian)
More from Elis Elektro
Elis Elektro
Elis Elektro Cotton Tape 38 mm x 50 m
1800032
Elis Elektro
Sleeve 14mm Black 50M SRG725
1821055
Elis Elektro
LIYCY 12X0,75 mm² (1001650)
Elis Elektro
Cover 200mm Sendz L=3M
MP-440S
Elis Elektro

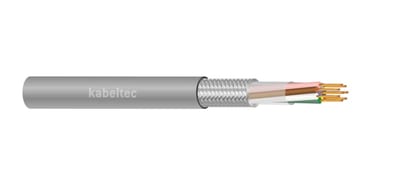

LIYCY 3X1,5 mm² (1001658)
Elis Elektro

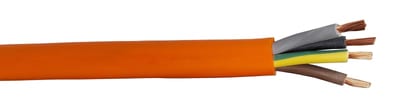

H07 BQ-F SUB4 4G2,5 mm²
1021617
Elis Elektro

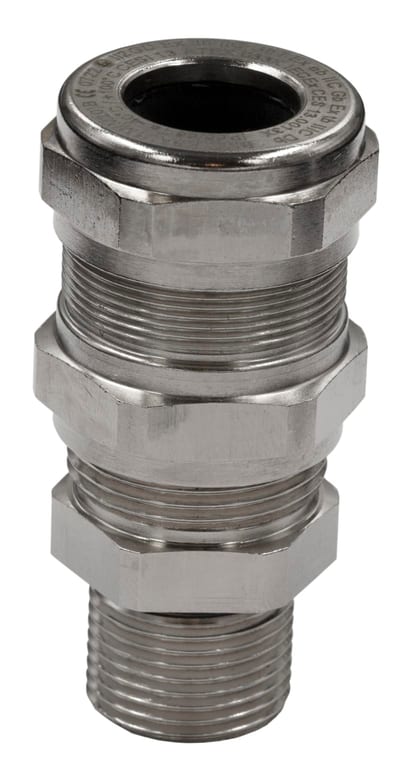

Nipple M20X1,5 Ex-db/eb/tb ORION (8,5-16
1255774
Elis Elektro

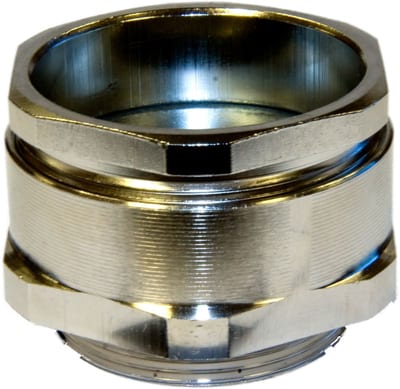

Nipple Flatcable M25 Brass
