Elis Elektro

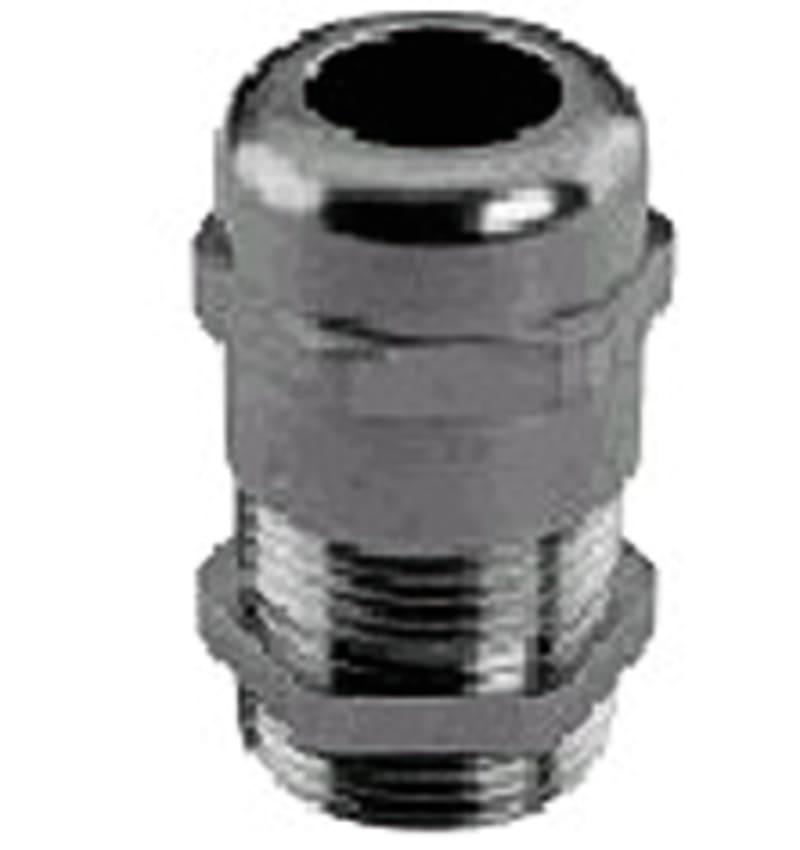

Nipple WADI-TEC EMC M32 17-24
Part numberØ=17-24mmEAN / GTIN7070613002855HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro Ø=17-24mm Nipple WADI-TEC EMC M32 17-24.
Technical Specifications
- Manufacturer part number (MPN)
- Ø=17-24mm
- EAN / GTIN
- 7070613002855
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Thread size
- M32
- Connection type to housing
- Screwing
- Thread type
- Metric
- Nominal thread size metric/PG
- 32
- Pitch thread
- 1.5 mm
- Thread length
- 8.5 mm
- Wrench width
- 40 mm
- Hexagon angular dimension
- 40 mm
- Suitable for cable diameter
- 17–24 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -25–120 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For armoured cable
- No
- EMC-version
- Yes
- Screened
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613002855
- SAP 1000028744
- Code 8504452
Product Documentation
Document preview: Nipple WADI-TEC EMC M32 17-24 (Ø=17-24mm) — Specification sheet
