Elis Elektro

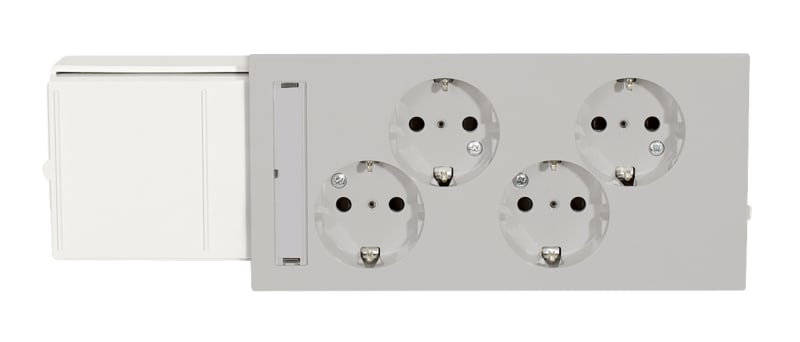

Outlet Set 4-1 grey
Part numberDUCT-4-1EAN / GTIN6438100337834HS code7308.90
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro DUCT-4-1 Outlet Set 4-1 grey Duct-4-1.
Technical Specifications
- Manufacturer part number (MPN)
- DUCT-4-1
- EAN / GTIN
- 6438100337834
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Colour
- Grey
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Number of units
- 4
- Lockable
- No
- With hinged lid
- No
- Connection type
- Push-in clamp
- With signal lamp
- No
- Number of socket outlets
- 4
- Number of phases
- 1
- With enhanced contact protection
- No
- Frequency
- 50 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- Yes
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- Yes
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Snap mounting (engagement)
- RAL-number (similar)
- 9006
- Impact strength
- IK00
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP20
- Device width
- 85 mm
- Device height
- 50 mm
- Device depth
- 250 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- Number of modules (module system)
- 1
- Number of active contacts (round)
- 4
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 0 mm
- Anti-bacterial treatment
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 6438100337834
- SAP 1200123058
- Code 81976401
Product Documentation
Document preview: Outlet Set 4-1 grey — Specification sheet
