Elis Elektro

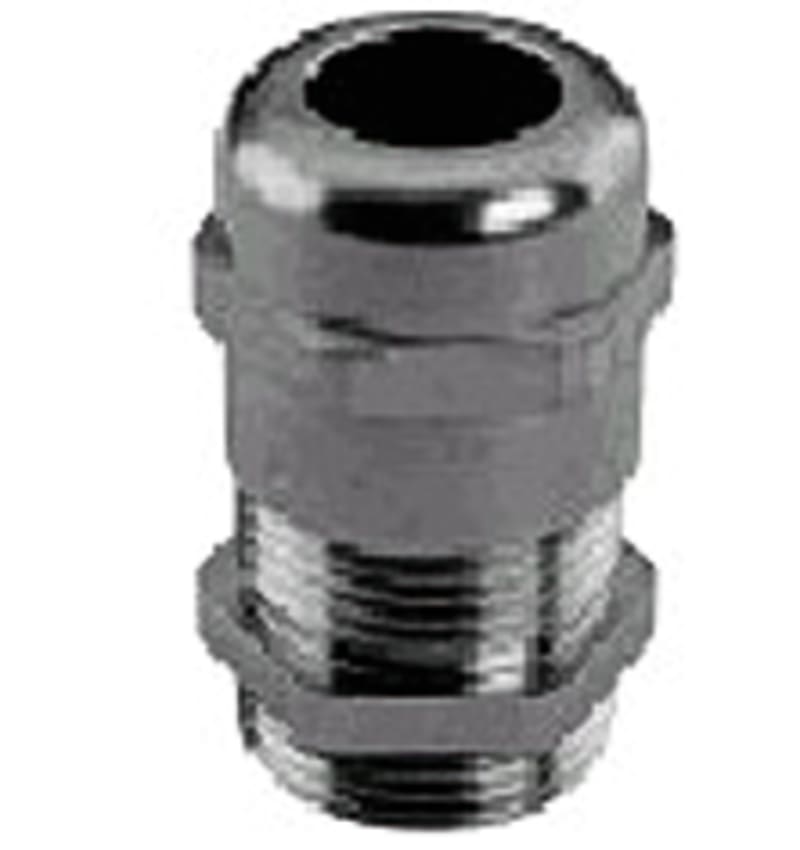

Nipple WADI-TEC EMC M16 5-8,5
Part numberØ=5-8,5mmEAN / GTIN7070613002794HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro Ø=5-8,5mm Nipple WADI-TEC EMC M16 5-8,5.
Technical Specifications
- Manufacturer part number (MPN)
- Ø=5-8,5mm
- EAN / GTIN
- 7070613002794
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Thread size
- M16
- Connection type to housing
- Screwing
- Thread type
- Metric
- Nominal thread size metric/PG
- 16
- Pitch thread
- 1.5 mm
- Thread length
- 7 mm
- Wrench width
- 17 mm
- Hexagon angular dimension
- 17 mm
- Suitable for cable diameter
- 5–8.5 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP68
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- Yes
- Separable screw gland
- No
- Operating temperature
- -25–120 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For armoured cable
- No
- EMC-version
- Yes
- Screened
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613002794
- SAP 1000020831
- Code 8165064
Product Documentation
Document preview: Nipple WADI-TEC EMC M16 5-8,5 (Ø=5-8,5mm) — Specification sheet
More from Elis Elektro
Elis Elektro

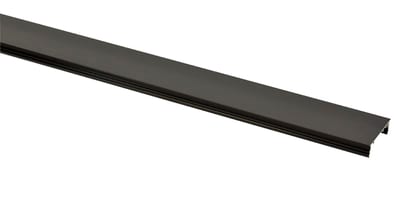

Front 80X19MM 3M AL/Black
TB80-2
Elis Elektro

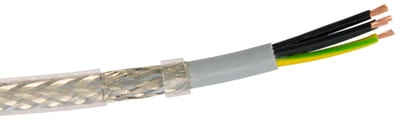

Elis Elektro OPVC-JZ-CY 4G6 mm2 Copper-Screened Control Cable
1002301
Elis Elektro

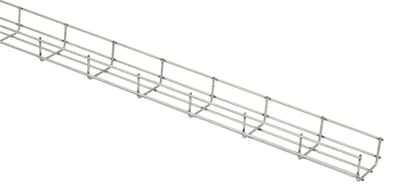

Wire Mesh Tray light 75 Sendz 3M
MP-720S3
Elis Elektro

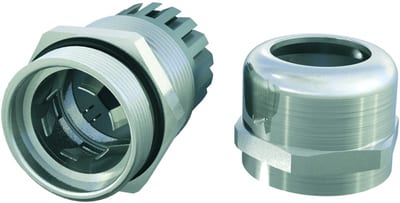

Nipple ELIS EMC M16 4,5-10
