LIHCH 4X0,5 mm² Halogen-free
Part number1003574EAN / GTIN7070613072551HS code8544.11
Cables & Wiring
Control Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1003574 LIHCH 4x0,5 mm² Halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- 1003574
- EAN / GTIN
- 7070613072551
- Sales unit
- m
- Package quantity
- 500 m
- Conductor cross-section
- 0.5 mm²
- Flame retardant according to IEC 60332-1-2
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Low smoke according to EN IEC 61034-2
- No
- Conductor material
- Copper
- AWG size
- 20
- Nominal cross section conductor (AWG)
- 20 kcmil
- Conductor category
- Class 5 = flexible
- Number of cores
- 4
- Stranding element
- No
- Core identification
- Colour
- With protective conductor
- No
- Screen over stranding element
- Braiding
- Screen over stranding
- Braiding
- Suspension element
- None
- Colour outer sheath
- Grey
- Cable geometry
- Round
- Torsion resistant
- No
- Reaction-to-fire according to EN 13501-6
- Class: B2ca
- Shape
- Round
- Halogen free according to EN 60754-1/2
- Yes
- Flame retardant
- According to IEC/EN 60332-1-2
- Low smoke (according to EN 61034-2)
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Oil resistant according to EN IEC 60811-404
- No
- Cable width approximate
- 6.8 mm
- Cable height approximate
- 6.8 mm
- Outer diameter approximate
- 6.8 mm
- Permitted cable outer temperature during assembling/handling
- -15–70 °C
- Nominal voltage U0
- 500 V
- Nominal voltage U
- 500 V
- Shape of conductor
- Round
- Weight
- 67 kg/km
- Screen
- Yes
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 8544.11
Cross References
- EAN 7070613072551
- SAP 1200733108
- Code 83871942
Product Documentation
Document preview: LIHCH 4X0,5 mm² Halogen-free (1003574) — Specification sheet
More from Elis Elektro
Elis Elektro
Anchor Bolt M6X40 Elz for MP-265
MP-285E
Elis Elektro
FLEX-JZ-(St)-CH 5G2,5 mm² Skj.Halogen-free
1003692
Elis Elektro
LIYCY 2X1,0 mm² (1001652)
Elis Elektro

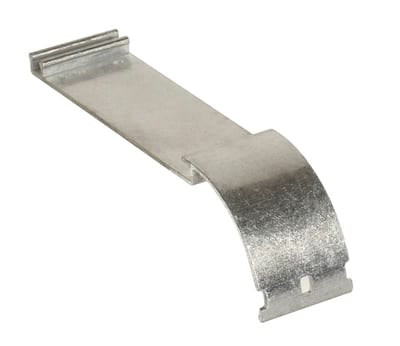

Radius reduction 200mm Al
MP-786C
Elis Elektro
LIYCY 7X1,0 mm² (1001737)
Elis Elektro

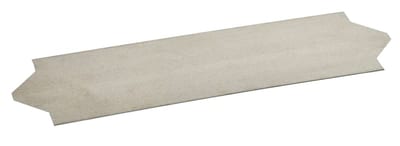

Levelplate 300mm Al
MP-784C
Elis Elektro

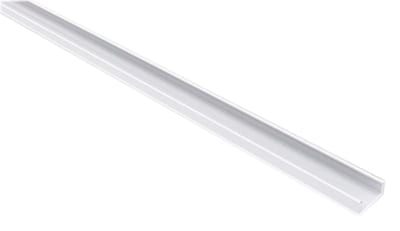

Cable Tray sealed 100mm White 3M
