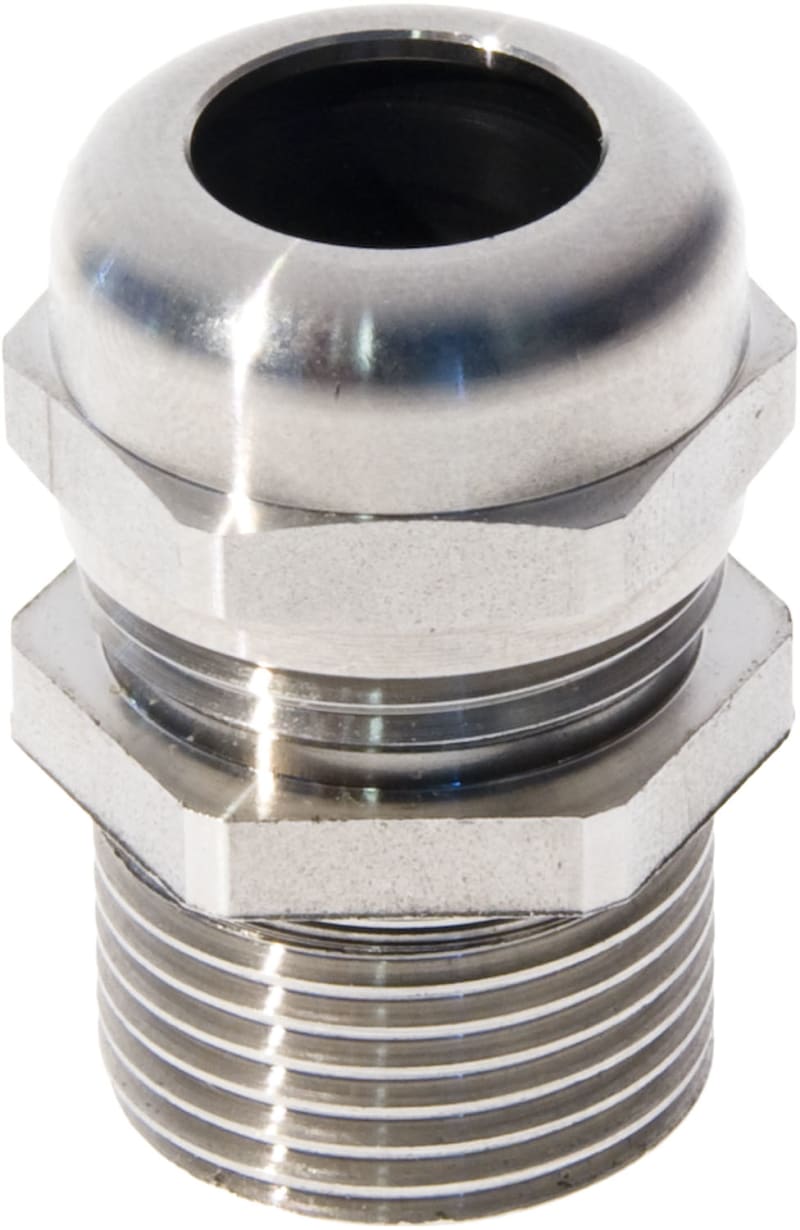

Nipple WADI-TEC M16 acid-resistant

Elis Elektro 1249210 Nipple WADI-TEC M16 Acid-resistant.

Manufacturer part number (MPN)

1249210 EAN / GTIN: 7070613014759 Sales unit: pcs Package quantity: 50 pcs EL number: 1249210 ETIM class: EC000441 - Cable gland CE marked: Yes REACH relevant: No Country of origin: France HS code: 39269097 Base unit: pcs Price unit: pcs Product height: 33 mm Product width: 18 mm Product length / depth: 18 mm Net weight: 30 g Product volume: 0.010692 dm³ Price units per base unit: 1 Hexagon angular dimension (mm): 17 Suitable for cable diameter (mm): 5 to 8 Nominal thread size metric/PG: 16 Wrench width (mm): 18 Pitch thread (mm): 1.5 Thread length (mm): 13 Working temperature (°C): -25 to 120 Halogen free: Yes Glass-fibre reinforced: No Shock resistant: No With strain relief: No Screened: No EMC-version: No With locknut: No Bend radius protection/trumpet flare: No Multi seal area: No Flat cable coupling: No Separable screw gland: No Explosion-tested version: No Suitable for armoured cable: No Connection type to housing: Screwing Thread type: Metric material: Metal material quality: Stainless steel others Surface protection: Untreated Degree of protection (IP): IP68 Snapping in opening: No Operating temperature: -25–120 °C For Ex-zone gas: None For armoured cable: No

HS Code

3926.90

• EAN 7070613014759
• SAP 1200335987
• Code 82334634
