Elis Elektro

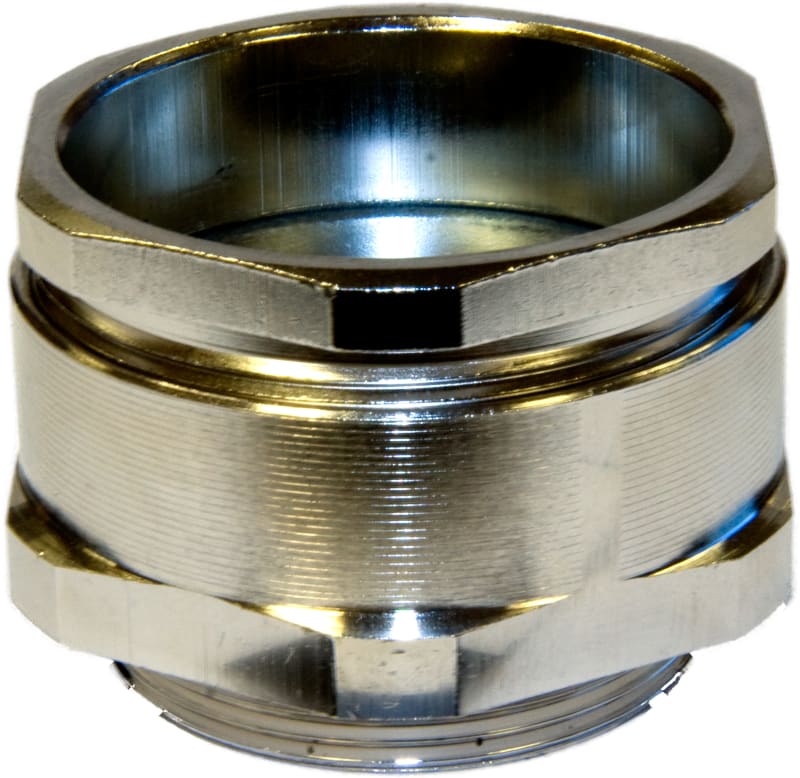

Nipple Flatcable M32 Brass
Part number1254954EAN / GTIN7070613007522HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1254954 Nipple Flat Cable M32 Brass.
Technical Specifications
- Manufacturer part number (MPN)
- 1254954
- EAN / GTIN
- 7070613007522
- Sales unit
- pcs
- Package quantity
- 25 pcs
- EL number
- 1254954
- ETIM class
- EC000441 - Cable gland
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 74122000
- Base unit
- pcs
- Price unit
- pcs
- Product height
- 11 mm
- Product width
- 40 mm
- Product length / depth
- 40 mm
- Net weight
- 90 g
- Product volume
- 0.0176 dm³
- Price units per base unit
- 1
- Hexagon angular dimension (mm)
- 40
- Nominal thread size metric/PG
- 32
- Wrench width (mm)
- 37
- Pitch thread (mm)
- 1.5
- Thread length (mm)
- 6
- Working temperature (°C)
- -20 to 80
- Halogen free
- Yes
- Flat cable coupling
- Yes
- Glass-fibre reinforced
- No
- Shock resistant
- No
- With strain relief
- No
- Screened
- No
- EMC-version
- No
- With locknut
- No
- Bend radius protection/trumpet flare
- No
- Snapping in opening
- No
- Multi seal area
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- Suitable for armoured cable
- No
- Connection type to housing
- Screwing
- Thread type
- Metric
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Degree of protection (IP)
- IP65
- Operating temperature
- -20–80 °C
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- Material sealing
- CR (neoprene)
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 7070613007522
- SAP 1200927217
- Code 84212233
Product Documentation
Document preview: Nipple Flatcable M32 Brass (1254954) — Data Sheet (OEM, Norwegian)
