Elis Elektro
Nipple EX/EMC PG9 6-8
Part number1249201HS code7412.20
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

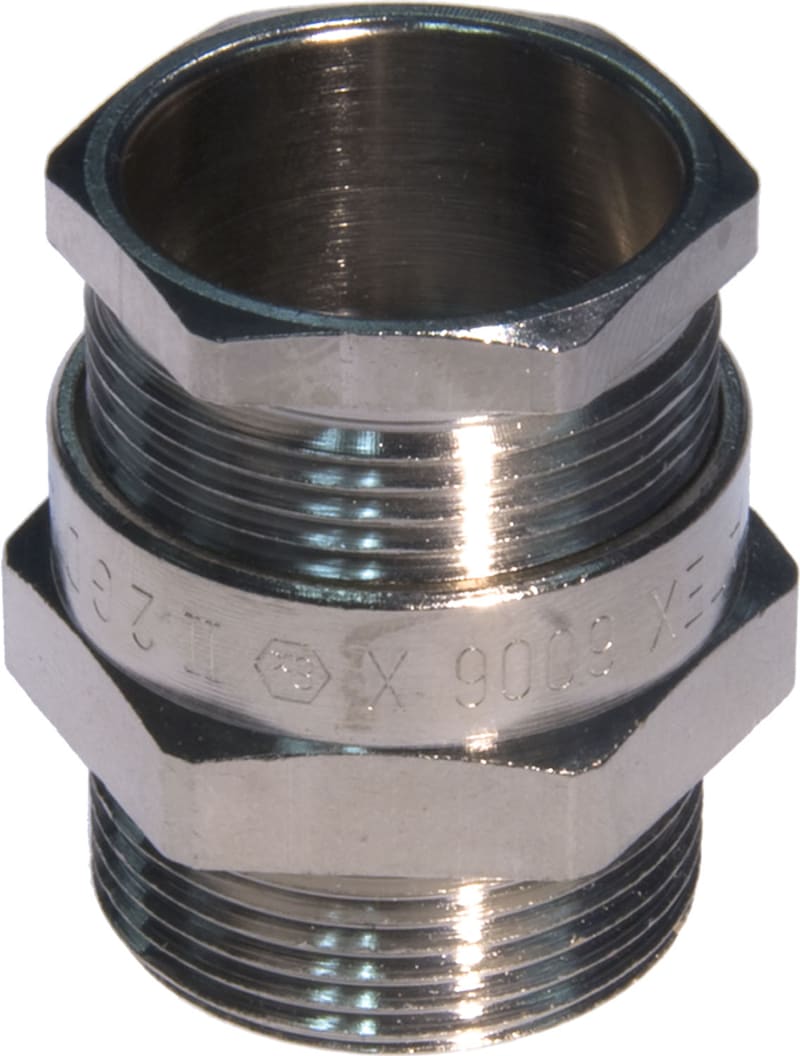

Elis Elektro 1249201 Nipple EX/EMC PG9 6-8.
Technical Specifications
- Manufacturer part number (MPN)
- 1249201
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Cable entry
- PG9
- Connection type to housing
- Screwing
- For wall thickness
- 0.1–6 mm
- Thread type
- PG
- Nominal thread size metric/PG
- 9
- Pitch thread
- 1.5 mm
- Thread length
- 12 mm
- Wrench width
- 15 mm
- Hexagon angular dimension
- 19 mm
- Suitable for cable diameter
- 6–8 mm
- Material
- Metal
- Material quality
- Brass
- Surface protection
- Nickel-plated
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP66
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Separable screw gland
- No
- Operating temperature
- -20–55 °C
- Explosion-tested version
- Yes
- For Ex-zone gas
- 2
- For armoured cable
- No
- EMC-version
- Yes
- Screened
- No
- Material sealing
- CR (neoprene)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7412.20
Cross References
- 7070613002589
Product Documentation
Document preview: Nipple EX/EMC PG9 6-8 (1249201) — Specification sheet
More from Elis Elektro
Elis Elektro
Angle Profile 35X35 Hot-dip galvanised 3M
MP-262Z
Elis Elektro
Data cover 2XRJ45 Keystone SV
DUCT-KEY-2
Elis Elektro
Extension M50/M63 Polyamide
ENLARGER M50-M60 POLYAMID
Elis Elektro
Fastening plate dbl socket IP44
MP-112SG
Elis Elektro
Cable ladder TS 500 Sendz 6M
MP-155S
Elis Elektro

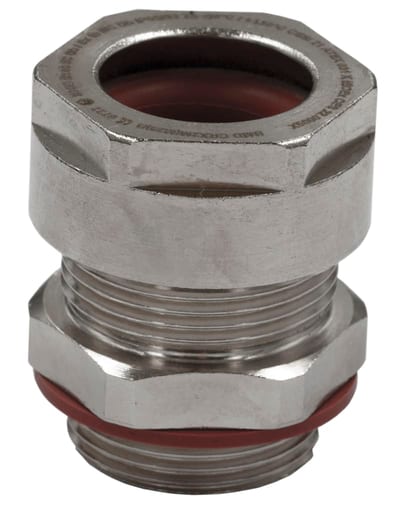

Nipple M20X1,5 Ex-eb/tb CRUX (5,5-12)
