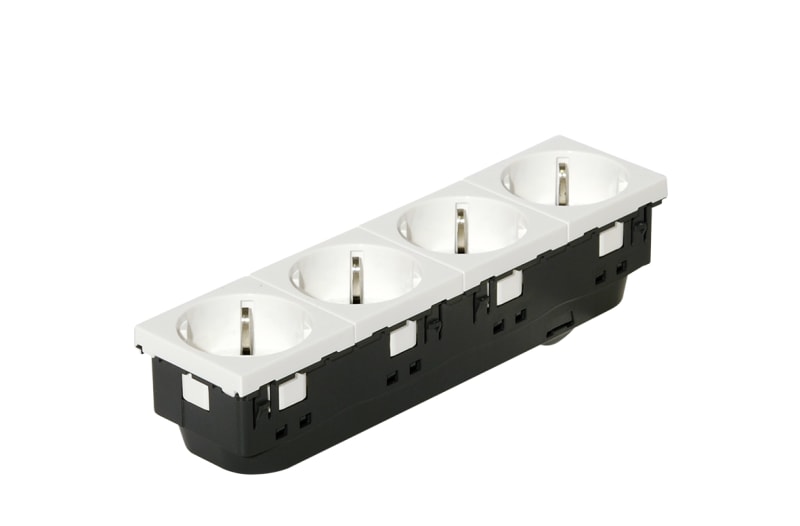

Elis Elektro 1205131 230 V 4-Way Floor-Box Socket UST45-W White

Elis Elektro 1205131 is a 230 V, 4-way pure-white socket outlet for floor boxes (UST45-W). Rated 16 A with push-in clamp terminals and rotated central inserts to CEE 7/3 (type F). Halogen-free thermoplastic body, IP20 rated, suitable for flush-mount office and commercial installations where multiple outlets are needed in floor tanks.

Manufacturer part number (MPN)

1205131

EAN / GTIN

4040918157188

Sales unit

pcs

Package quantity

50 pcs

Voltage

230 V

Nominal current

16 A

Nominal voltage

230 V

Mounting method

Flush-mounted

Colour

White

Model

Socket outlet with protective contact CEE 7/3 (type F)

Halogen free

Yes

Number of units

4

Lockable

No

With hinged lid

No

Connection type

Push-in clamp

Surface protection

Untreated

With signal lamp

No

Number of socket outlets

4

Number of phases

1

With enhanced contact protection

No

Frequency

50 Hz

With on/off switch

No

Protective contact

No

Label space/information surface

No

Eject-mechanism

No

Material quality

Thermoplastic

Rotated central insert

Yes

Overvoltage protection

No

Fault current protection

No

Special power supply

No special power supply

Insulated mounting

No

Material

Plastic

Type of fastening

Snap mounting (engagement)

RAL-number (similar)

9010

Transparent

No

Surface finishing

Glossy

With miniature fuse

No

With loop through function

No

Suitable for degree of protection (IP)

IP20

Phase pickup

L1

Device width

45 mm

Device height

40 mm

Device depth

180 mm

Number of socket outlets switchable

4

With function lighting

No

With orientation lighting

No

With built-in USB power supply

No

Number of modules (module system)

4

Number of active contacts (round)

4

Protective earth pin round

No

Min. depth of built-in installation box

0 mm

Anti-bacterial treatment

No

Country of origin

Sweden

HS Code

7308.90
