Elis Elektro UBDHB190 Square Floor Box for Underfloor Ducts 48-160 V
Pricing
Request a quote
We reply within 24 hours
Product Description

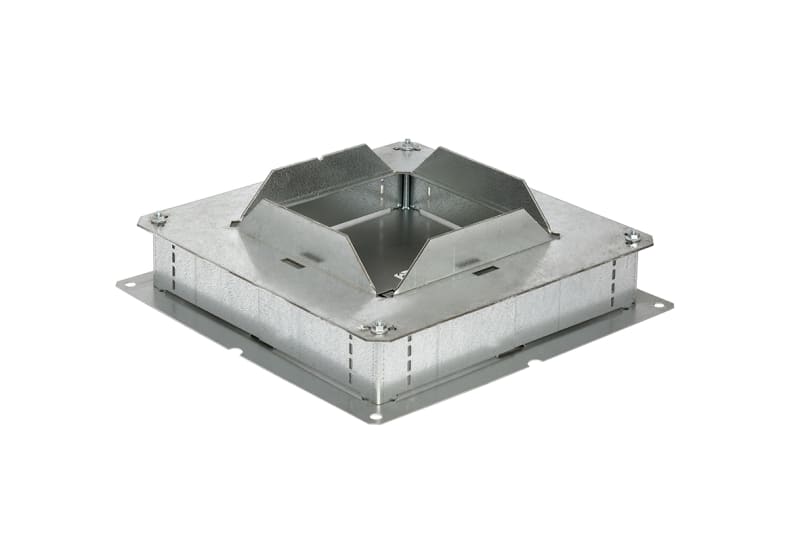

Elis Elektro 1205102 is a square in-concrete floor box for use with underfloor cable ducts of 190 mm width and 48 mm height, rated for 48-160 V circuits. The steel side walls, integrated bottom plate and levelling range of 87 mm allow adjustment to varying screed thicknesses in closed countersunk or overhead-closed duct arrangements. Suited for office fit-out and general commercial floor outlets.
Technical Specifications
- Manufacturer part number (MPN)
- 1205102
- EAN / GTIN
- 4040918171054
- Type designation
- UBDHB190 48-160V
- Duct width
- 190 mm
- Duct height
- 48 mm
- Levelling range
- 87 mm
- Min. height finishing layer
- 87 mm
- Cover model
- Rectangular
- Material side wall
- Steel
- Bottom plate
- Yes
- Mounting cover insertion
- Yes
- Suitable for placing of sealing
- No
- Suitable for subfloor duct countersunk (closed)
- Yes
- Suitable for subfloor duct overhead closed
- Yes
- Decoupling possibility cover from base unit
- No
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 7308.90
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 4040918171054
- SAP 1000637209
- Code 8583339
Product Documentation
More from Elis Elektro
Elis Elektro

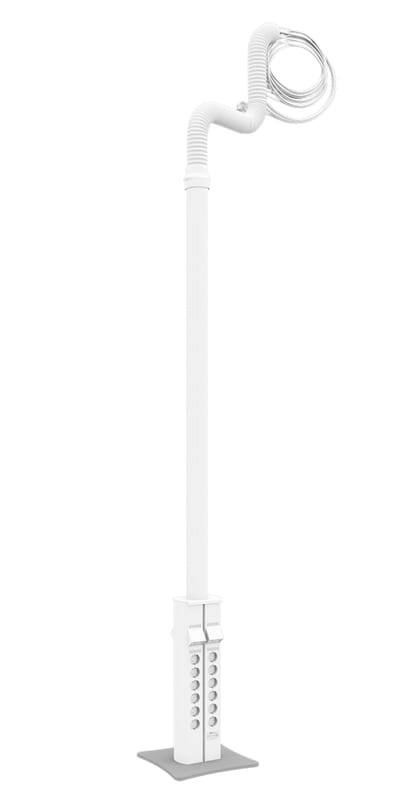

Elis Elektro MP-U721V MP-Quattro Branch Pole 2100 mm White
Elis Elektro

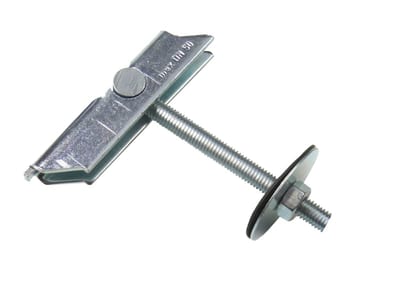

Toggle Bolt 10X100MM ELZ
1339042
Elis Elektro

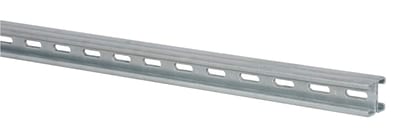

Dobl ankersk. 41X21X2 Acid-resistant 3M
MP-237R
Elis Elektro

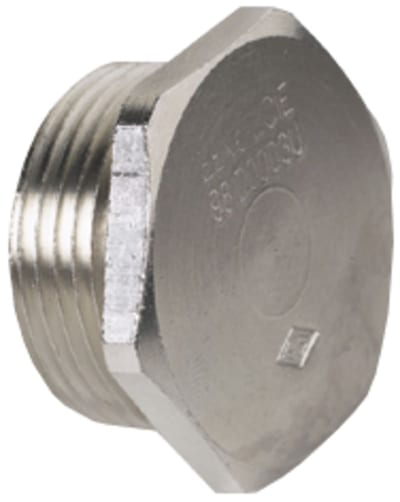

Blanking Plug M16 EEXE Brass
1254901
Elis Elektro
FLEX-JZ-(St)-CH 4G6 mm² Skj.Halogen-free
1003694
Elis Elektro

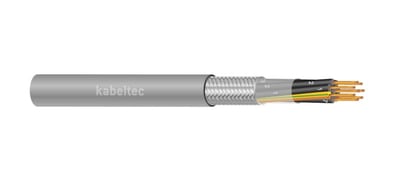

LIYCY-JZ 7G1,5 mm² PVC Grey
