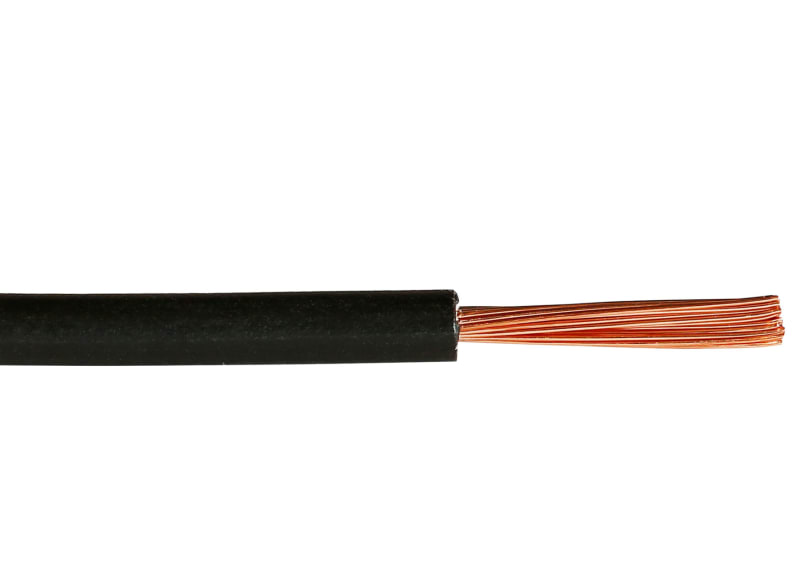

Elis Elektro H07Z-K 1.5 mm² Black 1500 m Drum

Elis Elektro 1021644 is a single-core H07Z-K installation cable with 1.5 mm² tinned or bare copper conductor and a halogen-free black insulation, rated 450/750 V. Outer diameter is approximately 2.9 mm with a minimum bending radius of 9 mm and permitted conductor temperature up to 90 °C. It is flame-retardant to IEC 60332-1-2 and suited for permanent installation. Sold by the metre, supplied on 1500 m drums. Typical application is fixed wiring in distribution boards and conduit systems where halogen-free performance is required.

Manufacturer part number (MPN)

1021644 Sales unit: m Package quantity: 1500 m EL number: 1021644 EAN / GTIN: 7070613073756 ETIM class: EC003248 - Power cable < 1 kV, for permanent installation CE marked: Yes REACH relevant: No Country of origin: Germany HS code: 85441100 Base unit: m Price unit: m Product length / depth: 1000 mm Net weight: 20 g Price units per base unit: 1 Nominal voltage U (V): 750 Nominal cross section conductor (mm²): 1.5 Nominal voltage U0 (V): 450 Nominal cross section conductor (AWG) (kcmil): 16 Cable width approximate (mm): 2.9 Cable height approximate (mm): 2.9 Number of cores: 1 Weight (kg/km): 20 Outer diameter approximate (mm): 2.9 Min. permitted bending radius, stationary application/permanent installation (mm): 9 Max. permitted conductor temperature (°C): 90 Permitted cable outer temperature during assembling/handling (°C): -40 to 90 Permitted cable outer temperature after assembling without vibration (°C): -40 to 90 Flame retardant according to IEC 60332-1-2: Yes Suitable as installation cable: Yes Twisted cores: No Screen: No With protective conductor: No Drain wire: No Radial water blocking cable: No Low temperature resistant according to EN 60811-504+505+506: No Oil resistant according to EN IEC 60811-404: No Certified for shipboard application: No Certified as airport lighting cable: No With rodent protection: No

HS Code

8544.49

• 7070613073756
