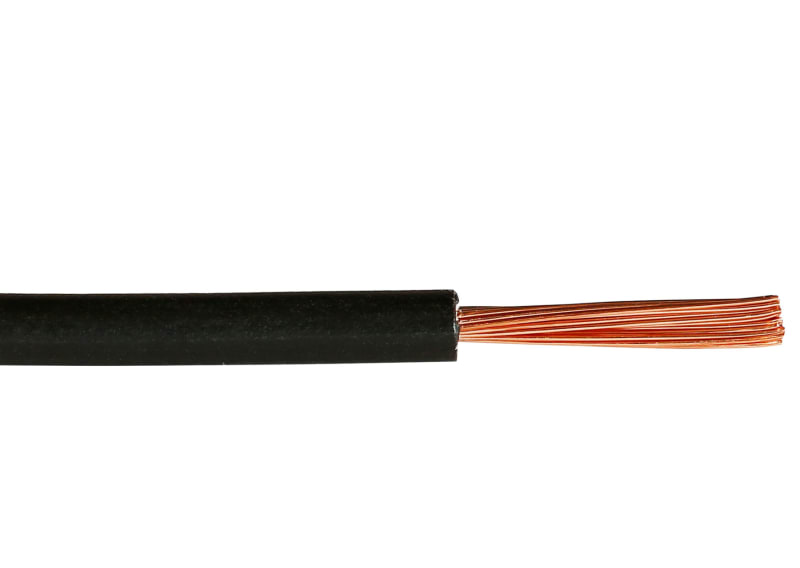

Elis Elektro H05Z-K 0.75 mm² Black 2500 m Drum

Elis Elektro 1021640 is a single-core H05Z-K flexible installation cable with 0.75 mm² copper conductor and halogen-free black insulation, rated 300/500 V. Outer diameter is approximately 2.4 mm with a minimum bending radius of 4.5 mm and permitted conductor temperature up to 90 °C. It is flame-retardant to IEC 60332-1-2 and suited for permanent installation. Sold by the metre, supplied on 2500 m drums. Typical application is internal wiring of switchgear, appliances and control cabinets.

Manufacturer part number (MPN)

1021640 Sales unit: m Package quantity: 2500 m EL number: 1021640 EAN / GTIN: 7070613073718 ETIM class: EC003248 - Power cable < 1 kV, for permanent installation CE marked: Yes REACH relevant: No Country of origin: Germany HS code: 85441100 Base unit: m Price unit: m Product length / depth: 1000 mm Net weight: 11 g Price units per base unit: 1 Nominal voltage U (V): 500 Nominal cross section conductor (mm²): 0.75 Nominal voltage U0 (V): 300 Nominal cross section conductor (AWG) (kcmil): 18 Diameter conductor (mm): 0 Cable width approximate (mm): 2.4 Cable height approximate (mm): 2.4 Number of cores: 1 Weight (kg/km): 11 Outer diameter approximate (mm): 2.4 Min. permitted bending radius, stationary application/permanent installation (mm): 4.5 Max. permitted conductor temperature (°C): 90 Permitted cable outer temperature during assembling/handling (°C): -40 to 90 Permitted cable outer temperature after assembling without vibration (°C): -40 to 90 Flame retardant according to IEC 60332-1-2: Yes Suitable as installation cable: Yes Twisted cores: No Screen: No With protective conductor: No Drain wire: No Radial water blocking cable: No Low temperature resistant according to EN 60811-504+505+506: No Oil resistant according to EN IEC 60811-404: No Certified for shipboard application: No Certified as airport lighting cable: No With rodent protection: No

HS Code

8544.49

• 7070613073718
