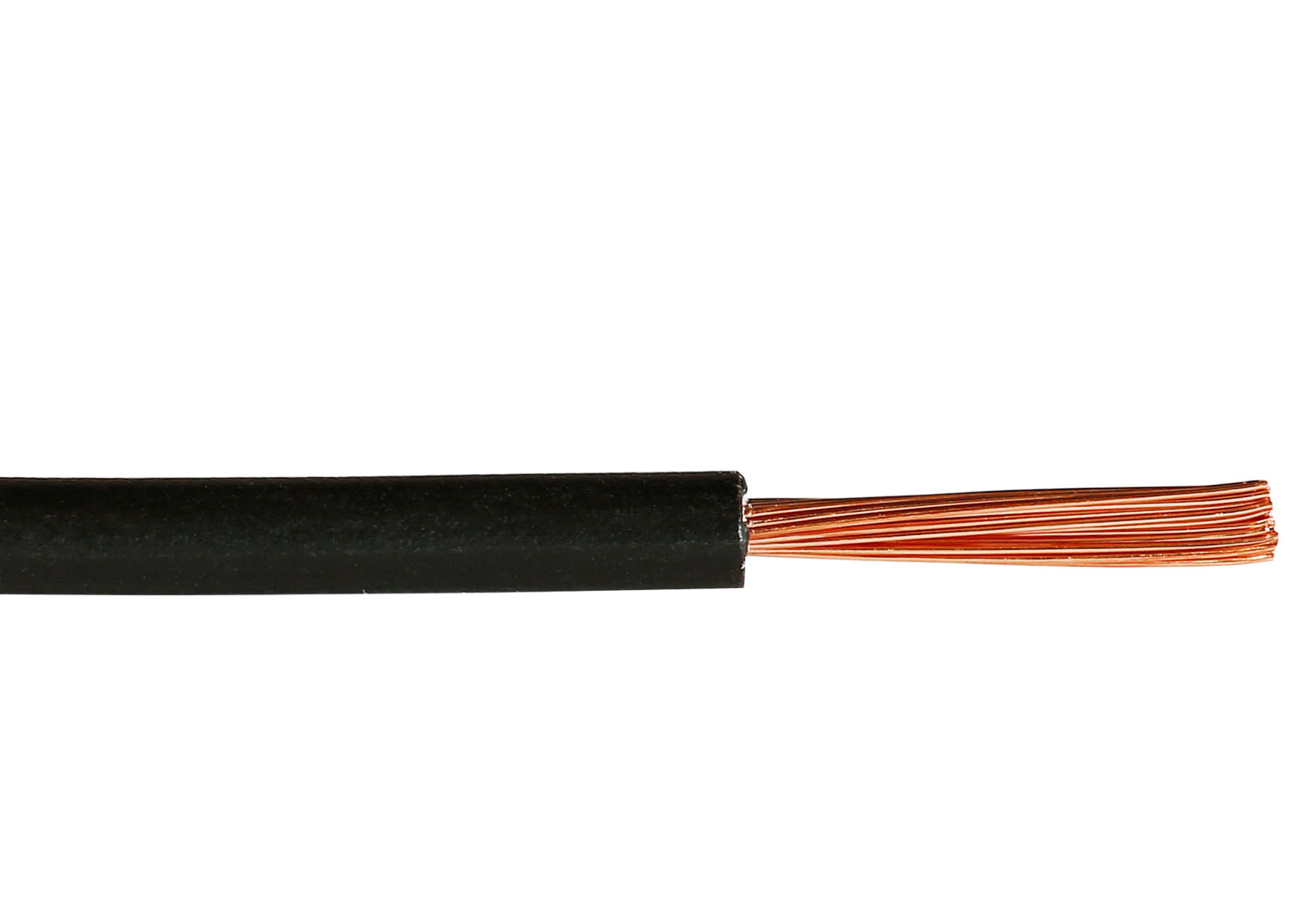

Elis Elektro H07Z-K 2.5 mm² Black 1000 m Drum

Elis Elektro 1021646 is a halogen-free single-core installation cable, H07Z-K 2.5 mm² in black, supplied on a 1000 m drum. Rated 450/750 V with a maximum conductor temperature of 90 C and a minimum bending radius of 15 mm, it is flame retardant to IEC 60332-1-2. Typical applications include permanent installation in switchgear, distribution boards and cable routing systems where low-smoke, halogen-free performance is required.

Manufacturer part number (MPN)

1021646 Sales unit: m Package quantity: 1000 m EL number: 1021646 EAN / GTIN: 7070613073770 ETIM class: EC003248 - Power cable < 1 kV, for permanent installation CE marked: Yes REACH relevant: No Country of origin: Germany HS code: 85441100 Base unit: m Price unit: m Product length / depth: 1000 mm Net weight: 32 g Price units per base unit: 1 Nominal voltage U (V): 750 Nominal cross section conductor (mm²): 2.5 Nominal voltage U0 (V): 450 Nominal cross section conductor (AWG) (kcmil): 14 Cable width approximate (mm): 3.6 Cable height approximate (mm): 3.6 Number of cores: 1 Weight (kg/km): 32 Outer diameter approximate (mm): 3.6 Min. permitted bending radius, stationary application/permanent installation (mm): 15 Max. permitted conductor temperature (°C): 90 Permitted cable outer temperature during assembling/handling (°C): -40 to 90 Permitted cable outer temperature after assembling without vibration (°C): -40 to 90 Flame retardant according to IEC 60332-1-2: Yes Suitable as installation cable: Yes Twisted cores: No Screen: No With protective conductor: No Drain wire: No Radial water blocking cable: No Low temperature resistant according to EN 60811-504+505+506: No Oil resistant according to EN IEC 60811-404: No Certified for shipboard application: No Certified as airport lighting cable: No With rodent protection: No

HS Code

8544.49

• 7070613073770
