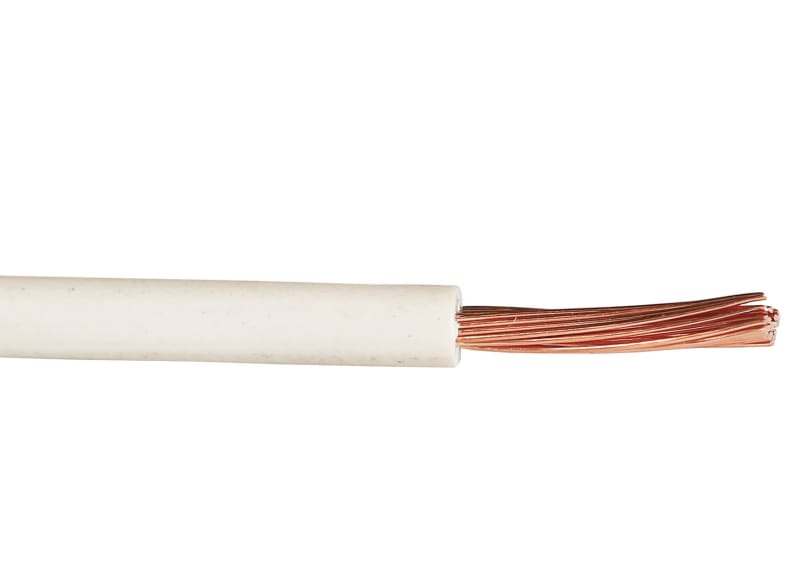

Elis Elektro H05Z-K 0.75 mm² White Halogen-Free Wire, 2500 m Drum

Elis Elektro 1021641 is an H05Z-K single-core installation wire with a nominal cross-section of 0.75 mm² in white, supplied on a 2500 m drum. Rated 300/500 V, the halogen-free conductor is flame retardant to IEC 60332-1-2 and rated to a 90 °C maximum conductor temperature. Typical use is internal wiring of control panels, switchgear and lighting fixtures where low-smoke performance is required.

Manufacturer part number (MPN)

1021641 Sales unit: m Package quantity: 2500 m EL number: 1021641 EAN / GTIN: 7070613073725 ETIM class: EC003248 - Power cable < 1 kV, for permanent installation CE marked: Yes REACH relevant: No Country of origin: Germany HS code: 85441100 Base unit: m Price unit: m Product length / depth: 1000 mm Net weight: 11 g Price units per base unit: 1 Nominal voltage U (V): 500 Nominal cross section conductor (mm²): 0.75 Nominal voltage U0 (V): 300 Nominal cross section conductor (AWG) (kcmil): 18 Cable width approximate (mm): 2.4 Cable height approximate (mm): 2.4 Number of cores: 1 Weight (kg/km): 11 Outer diameter approximate (mm): 2.4 Min. permitted bending radius, stationary application/permanent installation (mm): 4.5 Max. permitted conductor temperature (°C): 90 Permitted cable outer temperature during assembling/handling (°C): -40 to 90 Permitted cable outer temperature after assembling without vibration (°C): -40 to 90 Flame retardant according to IEC 60332-1-2: Yes Suitable as installation cable: Yes Twisted cores: No Screen: No With protective conductor: No Drain wire: No Radial water blocking cable: No Low temperature resistant according to EN 60811-504+505+506: No Oil resistant according to EN IEC 60811-404: No Certified for shipboard application: No Certified as airport lighting cable: No With rodent protection: No

HS Code

8544.49

• 7070613073725
