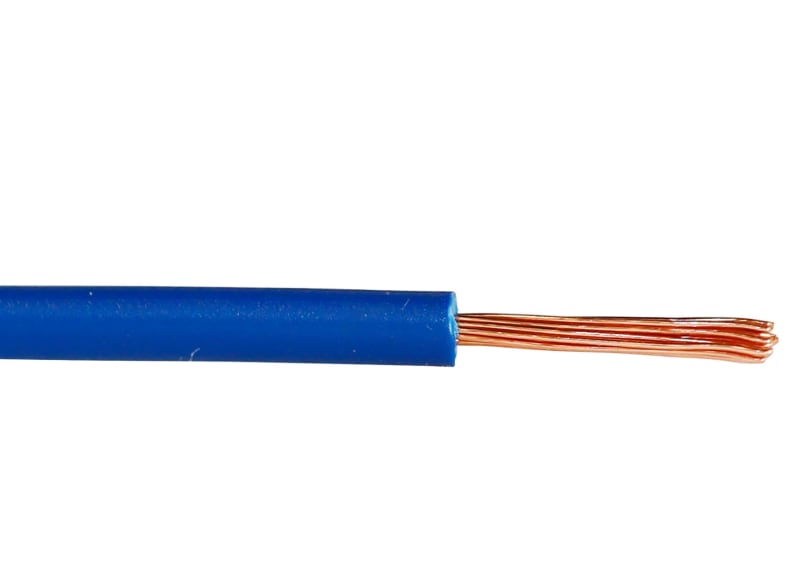

H07 V-K 1,5 mm² Dark blue 100M
Pricing
Request a quote
We reply within 24 hours
Overview
Elis Elektro H07 V-K 1,5 mm² Dark blue 100M (part number 1002636) is listed under Cables & Wiring / Single-Core Wires. Sales unit: m; Package quantity: 100 m; EL number: 1002636; CE marked: Yes; REACH relevant: No; Country of origin: Turkey.
Technical Specifications
- Manufacturer part number (MPN)
- 1002636
- Sales unit
- m
- Package quantity
- 100 m
- EL number
- 1002636
- EAN / GTIN
- 7070613026431
- ETIM class
- EC003248 - Power cable < 1 kV, for permanent installation
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Turkey
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 22 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 750
- Nominal cross section conductor (mm²)
- 1.5
- Nominal voltage U0 (V)
- 450
- Nominal cross section conductor (AWG) (kcmil)
- 16
- Diameter conductor (mm)
- 0
- Cable width approximate (mm)
- 3.4
- Cable height approximate (mm)
- 3.4
- Number of cores
- 1
- Weight (kg/km)
- 22
- Outer diameter approximate (mm)
- 3.4
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 9
- Max. permitted conductor temperature (°C)
- 70
- Permitted cable outer temperature during assembling/handling (°C)
- -30 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -30 to 70
- Flame retardant according to IEC 60332-1-2
- Yes
- Suitable as installation cable
- Yes
- Twisted cores
- No
- Screen
- No
- With protective conductor
- No
- Drain wire
- No
- Radial water blocking cable
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
- Certified for shipboard application
- No
- Certified as airport lighting cable
- No
- With rodent protection
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- 7070613026431
Product Documentation
More from Elis Elektro
Elis Elektro
H07 V-K 2,5 mm² G/G 100M
1002651
Elis Elektro

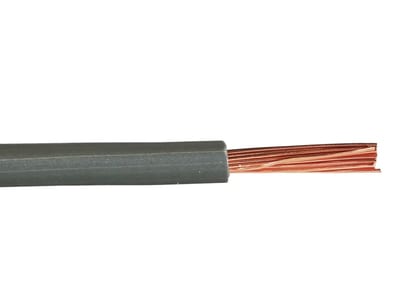

H07 V-K 6 mm² Grey 100M
1002678
Elis Elektro
H07 V-K 2,5 mm² Grey 100M
1002652
Elis Elektro
Sleeve 18mm Black Conform B
1821090
Elis Elektro

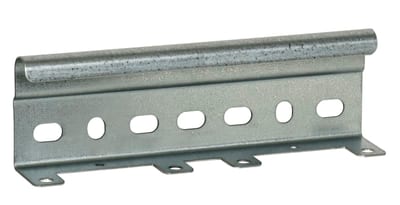

Splice piece Z4
MP-107Z4
Elis Elektro

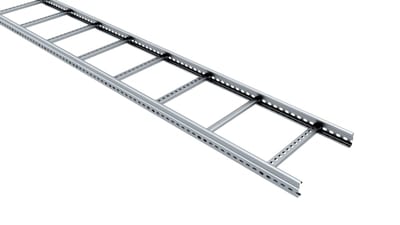

Cable ladder 300 Z4 3M
MP-103Z4
Elis Elektro

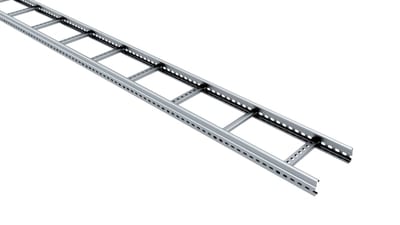

Cable ladder 200 Z4 3M
MP-102Z4
Elis Elektro

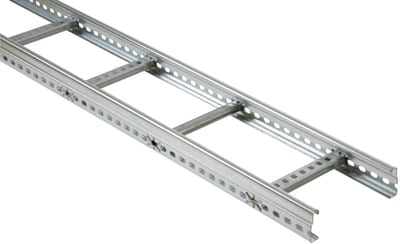

Cable ladder 200 White 3M MP-102V
