Elis Elektro

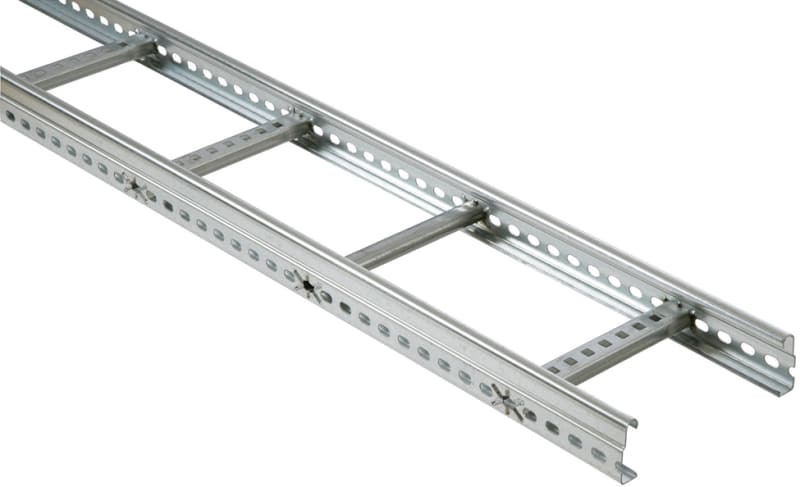

Cable ladder 200 White 3M MP-102V
Part number1352322EAN / GTIN7394333900186HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1352322 Cable ladder 200 White 3m MP-102V.
Technical Specifications
- Manufacturer part number (MPN)
- 1352322
- HS code
- 8544.42
- Sales unit
- m
- Package quantity
- 3 m
- EL number
- 1352322
- EAN / GTIN
- 7394333900186
- ETIM class
- EC000854 - Cable ladder
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Sweden
- Base unit
- m
- Price unit
- m
- Product height
- 56 mm
- Product width
- 200 mm
- Product length / depth
- 3000 mm
- Net weight
- 5170 g
- Product volume
- 33.6 dm³
- Price units per base unit
- 1
- Width (mm)
- 200
- Height (mm)
- 56
- Length (mm)
- 3000
- Working length (mm)
- 3000
- Usable cross section (mm²)
- 6200
- Rung centre spacing (mm)
- 250
- Weight (kg/m)
- 1.723
- Possible support spacing (m)
- 2 to 4
- Safe working load according to IEC 61537 with support spacing 2.0 m (N/m)
- 1000
- Safe working load according to IEC 61537 with support spacing 3.0 m (N/m)
- 440
- Safe working load according to IEC 61537 with support spacing 4.0 m (N/m)
- 240
- Safe working load according to IEC 61537 with support spacing 5.0 m (N/m)
- 0
- Safe working load according to IEC 61537 with support spacing 6.0 m (N/m)
- 0
- Safe working load according to IEC 61537 with support spacing 7.0 m (N/m)
- 0
- Safe working load according to IEC 61537 with support spacing 8.0 m (N/m)
- 0
- Safe working load according to IEC 61537 with support spacing 9.0 m (N/m)
- 0
- Safe working load according to IEC 61537 with support spacing 10.0 m (N/m)
- 0
- Safe working load according to IEC 61537 with support spacing 11.0 m (N/m)
- 0
- Safe working load according to IEC 61537 with support spacing 12.0 m (N/m)
- 0
- Side perforation
- Yes
- Vertical cable ladder
- No
- Suitable for circuit integrity
- No
- Colour
- White
- RAL-number
- 9010
- Surface protection
- Continuously galvanised and coated
- Type of rung
- Perforated profile
- Material
- Steel
- Stainless steel, pickled
- No
- Wide span model
- No
- Type of side joist
- Profile (open)
- Fixation rung
- Welded
- Load test type according to IEC 61537
- Type II
Standards & Compliance
- HS Code
- 8544.42
Cross References
- 7070613063955
Product Documentation
Document preview: Cable ladder 200 White 3m MP-102V (1352322) — Data Sheet (OEM, Norwegian)
