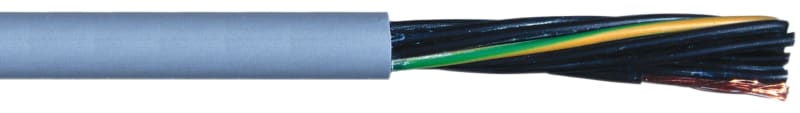

Elis Elektro 1002067 OPVC-JZ Control Cable 8G0.75 mm2, Numbered Cores
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1002067 is a flexible OPVC-JZ control cable with eight numbered 0.75 mm2 cores, rated U0/U 300/500 V. The cable has an approximate outer diameter of 8.5 mm and a nominal weight of 136 kg/km, supplied on 500 m drums for continuous installation. Numbered cores simplify identification during termination in control cabinets, machine wiring and moving equipment.
Technical Specifications
- Manufacturer part number (MPN)
- 1002067
- EAN / GTIN
- 7070613022112
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1002067
- ETIM class
- EC003250 - Power cable < 1 kV, for moving application
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 136 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 500
- Nominal cross section conductor (mm²)
- 0.75
- Nominal voltage U0 (V)
- 300
- Nominal cross section conductor (AWG) (kcmil)
- 19
- Cable width approximate (mm)
- 8.5
- Cable height approximate (mm)
- 8.5
- Number of cores
- 8
- Weight (kg/km)
- 136
- Min. permitted bending radius, moving application with forced guidance (mm)
- 147
- Min. permitted bending radius, moving application/free movement (mm)
- 147
- Outer diameter approximate (mm)
- 8.5
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 39.2
- Permitted cable outer temperature during assembling/handling (°C)
- -15 to 70
- Permitted cable outer temperature after assembling without vibration (°C)
- -40 to 80
- With protective conductor
- Yes
- Screen
- No
- Torsion resistant
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613022112
- SAP 1200827413
- Code 84015488
Product Documentation
