Elis Elektro

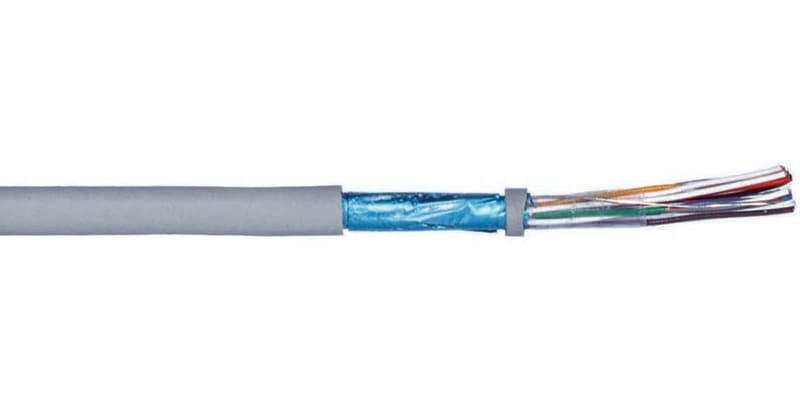

KNX/BUS EIB 2X2X0,8mm Grey J-Y(St)Y
Part number1000120EAN / GTIN7070613063504HS code8544.49
Cables & Wiring
Single-Core Wires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1000120 KNX/BUS EIB 2x2x0,8mm Grey J-Y(St)Y.
Technical Specifications
- Manufacturer part number (MPN)
- 1000120
- EAN / GTIN
- 7070613063504
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1000120
- ETIM class
- EC003248 - Power cable < 1 kV, for permanent installation
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 60 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 250
- Nominal cross section conductor (mm²)
- 0.8
- Nominal voltage U0 (V)
- 250
- Nominal cross section conductor (AWG) (kcmil)
- 20
- Diameter conductor (mm)
- 0
- Cable width approximate (mm)
- 6.1
- Cable height approximate (mm)
- 6.1
- Number of cores
- 2
- Weight (kg/km)
- 60
- Outer diameter approximate (mm)
- 6.1
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 4.8
- Max. permitted conductor temperature (°C)
- 70
- Permitted cable outer temperature during assembling/handling (°C)
- -5 to 50
- Permitted cable outer temperature after assembling without vibration (°C)
- -30 to 70
- Twisted cores
- Yes
- Screen
- Yes
- Suitable as installation cable
- Yes
- With protective conductor
- No
- Drain wire
- No
- Radial water blocking cable
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Low smoke according to EN IEC 61034-2
- No
- Halogen free according to EN IEC 60754-1
- No
- Halogen free according to EN IEC 60754-2
- No
- Oil resistant according to EN IEC 60811-404
- No
- Certified for shipboard application
- No
- Certified as airport lighting cable
- No
- With rodent protection
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613063504
- SAP 1200827490
- Code 84015336
Product Documentation
Document preview: KNX/BUS EIB 2x2x0,8mm Grey J-Y(St)Y (1000120) — Data Sheet (OEM, Norwegian)
