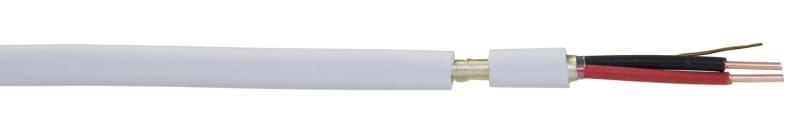

Elis Elektro Fire-Resistant Fire-Alarm Cable White with Earth 1x2x1 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Elis Elektro 1004061 fire-resistant fire-alarm cable, white sheath with protective conductor, 1x2x1 mm², unprinted, for fire and emergency-lighting circuits. 300 V, halogen-free and low-smoke, flame-retardant to IEC 60332-1-2 / 60332-3-21 / 60332-3-24.
Technical Specifications
- Manufacturer part number (MPN)
- 1004061
- EAN / GTIN
- 7070613073077
- Sales unit
- m
- Package quantity
- 500 m
- EL number
- 1004061
- ETIM class
- EC003248 - Power cable < 1 kV, for permanent installation
- CE marked
- Yes
- REACH relevant
- No
- Country of origin
- Germany
- HS code
- 85441100
- Base unit
- m
- Price unit
- m
- Product length / depth
- 1000 mm
- Net weight
- 56 g
- Price units per base unit
- 1
- Nominal voltage U (V)
- 300
- Nominal cross section conductor (mm²)
- 1
- Nominal voltage U0 (V)
- 300
- Nominal cross section conductor (AWG) (kcmil)
- 18
- Diameter conductor (mm)
- 0
- Number of strands per conductor
- 1
- Conductor resistance at 20 °C (Ohm/km)
- 24.5
- Cable width approximate (mm)
- 5.9
- Cable height approximate (mm)
- 5.9
- Number of cores
- 2
- Weight (kg/km)
- 56
- Outer diameter approximate (mm)
- 5.9
- Min. permitted bending radius, stationary application/permanent installation (mm)
- 59
- Max. permitted conductor temperature (°C)
- 90
- Permitted cable outer temperature during assembling/handling (°C)
- -10 to 90
- Permitted cable outer temperature after assembling without vibration (°C)
- -30 to 90
- Twisted cores
- Yes
- Screen
- Yes
- With protective conductor
- Yes
- Flame retardant according to IEC 60332-1-2
- Yes
- Flame retardant according to IEC 60332-3-21 (Cat A F/R)
- Yes
- Flame retardant according to IEC 60332-3-24 (Cat C)
- Yes
- Low smoke according to EN IEC 61034-2
- Yes
- Halogen free according to EN IEC 60754-1
- Yes
- Halogen free according to EN IEC 60754-2
- Yes
- Suitable as installation cable
- Yes
- Drain wire
- No
- Lead sheath
- No
- Radial water blocking cable
- No
- Low temperature resistant according to EN 60811-504+505+506
- No
- Oil resistant according to EN IEC 60811-404
- No
- Certified for shipboard application
- No
- Certified as airport lighting cable
- No
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 7070613073077
- SAP 1200454603
- Code 82513692
Product Documentation
