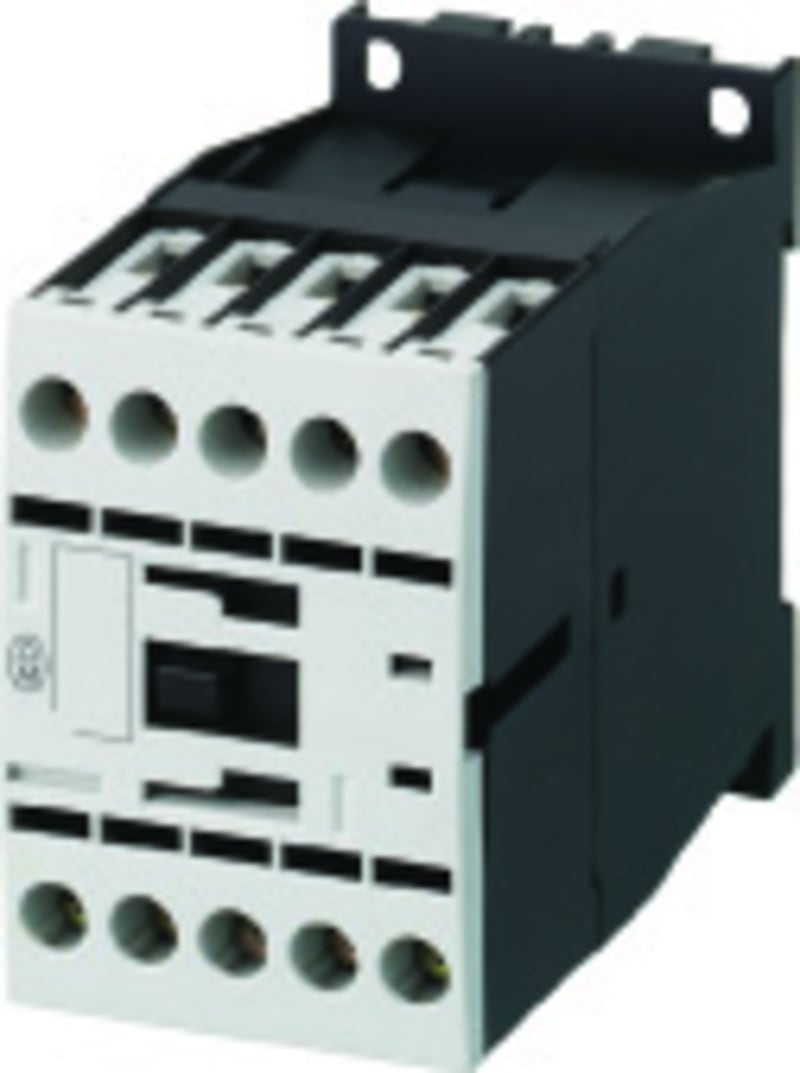

Eaton xStart DILM9-10 Contactor 9A 4kW 24V DC Coil 1NO
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DILM9-10(24VDC) xStart DILM9 power contactor, AC-3 rated 9A / 4kW at 400V, 3 main poles + 1 NO auxiliary. 24V DC control coil. Screw terminals. DIN rail or panel mount. Installed in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and DIN-rail consumer units.
Technical Specifications
- Material
- Thermoplastic housing, silver alloy contacts
- Standard
- IEC/EN 60947-4-1, UL 508
- Temperature range
- -25 to +60 °C
- IP rating
- IP20
- Approval
- CE, UL, cUL, CCC, CSA, UKCA
- Standards
- DIN-rail, DIN rail, IEC 60947-4-1
- Approvals
- CE, UL, CSA
- Dimensions
- 90 x 45 x 76 mm
- Weight
- 0.35 kg
- HS code
- 8536.50
- Voltage
- 24 V
- Power
- 4 kW
- Contact configuration
- 1 NO
Standards & Compliance
- Standard
- IEC/EN 60947-4-1, UL 508
- Material
- Thermoplastic housing, silver alloy contacts
- Temperature Range
- -25 to +60 °C
- IP Rating
- IP20
- Classification / Approval
- CE, UL, cUL, CCC, CSA, UKCA
- HS Code
- 8536.50
Compatibility & Fitment
DIN-rail mountable. Verify coil voltage (AC/DC) and AC-3 motor power rating match your application.
