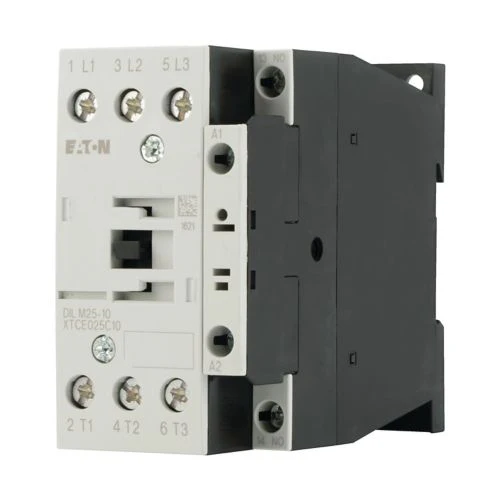

Eaton xStart DILM25-10 Contactor 25A 11kW 24V DC Coil
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DILM25-10(24VDC) DILM25 contactor, AC-3 25A / 11kW at 400V, 24V DC coil. Operating range -25 to +60 °C, IP20 enclosure.(24VDC). Installed in low-voltage switchgear panels, main and sub-distribution boards, motor control centres and DIN-rail consumer units.
Technical Specifications
- Material
- Thermoplastic housing, silver alloy contacts
- Standard
- IEC/EN 60947-4-1
- Temperature range
- -25 to +60 °C
- IP rating
- IP20
- Approval
- CE, UL, cUL, CCC, CSA, UKCA
- Standards
- DIN-rail, IEC 60947-4-1
- Approvals
- CE, UL, CSA, UKCA
- Dimensions
- 90 x 54 x 85 mm
- Weight
- 0.55 kg
- HS code
- 8536.50
- Voltage
- 24 V
- Power
- 11 kW
- Rated current
- 25 A
Standards & Compliance
- Standard
- IEC/EN 60947-4-1
- Material
- Thermoplastic housing, silver alloy contacts
- Temperature Range
- -25 to +60 °C
- IP Rating
- IP20
- Classification / Approval
- CE, UL, cUL, CCC, CSA, UKCA
- HS Code
- 8536.50
Compatibility & Fitment
DIN-rail mountable. Verify coil voltage (AC/DC) and AC-3 motor power rating match your application.
