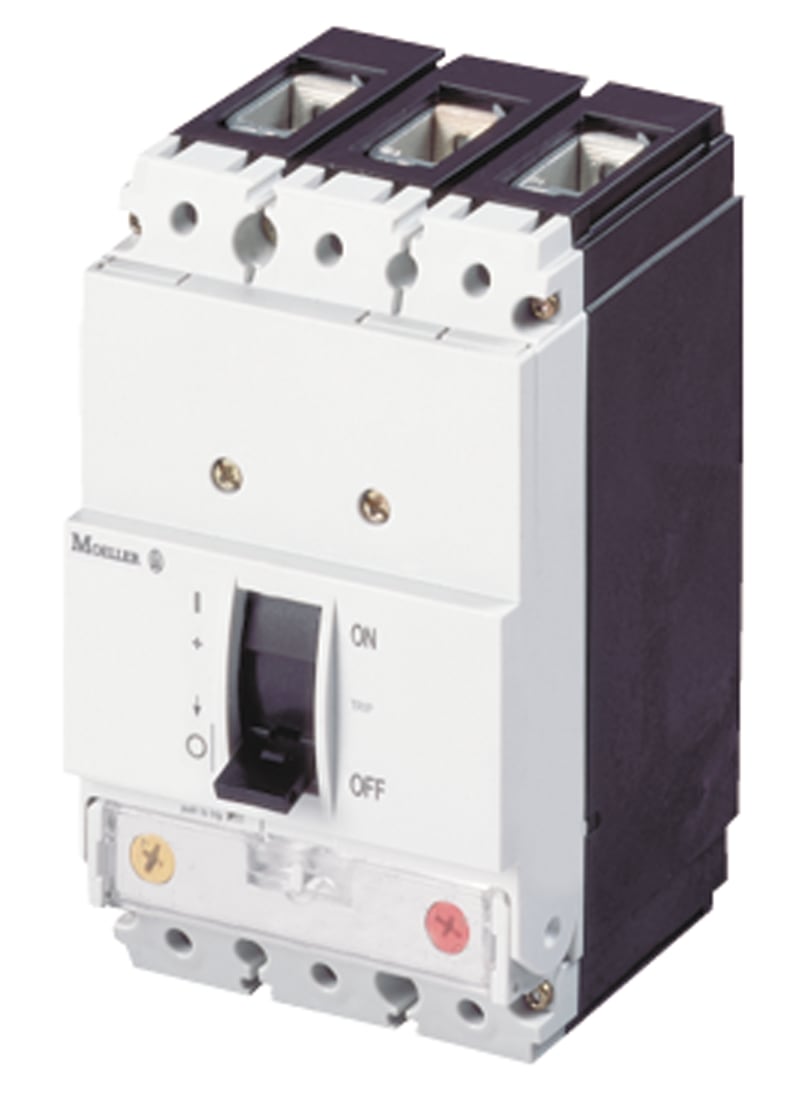

Eaton NZMN1-A100 Molded-Case Circuit Breaker 3-Pole 100A 50kA
Eaton · Switchgear & Protection · Circuit Breakers
Eaton NZMN1-A100, catalog identifier for the specific configuration. Moulded-case circuit breaker, NZM frame 1, 3-pole 100A, 25kA breaking capacity at 400V. Thermal-magnetic trip with adjustable overload 0.8-1.0 × In. Installed as the primary motor branch-circuit protection device between the incoming feeder and the contactor. Manufacturer: Eaton. Manufacturer part number: NZMN1-A100. Available on quote-to-invoice terms via cBallast. Lead time and freight are quoted per RFQ against destination Incoterm.
Specifications
- Part number
- NZMN1-A100
- HS code
- 8536.20
- Dimensions
- 130 x 90 x 76 mm
- Weight
- 1.45 kg
- Temperature range
- -25 to +70 °C
- IP rating
- IP20
- Standard
- IEC/EN 60947-2
Standards
- DIN rail
- IEC 60947-2
- IEC 60898-1
Approvals
