Eaton

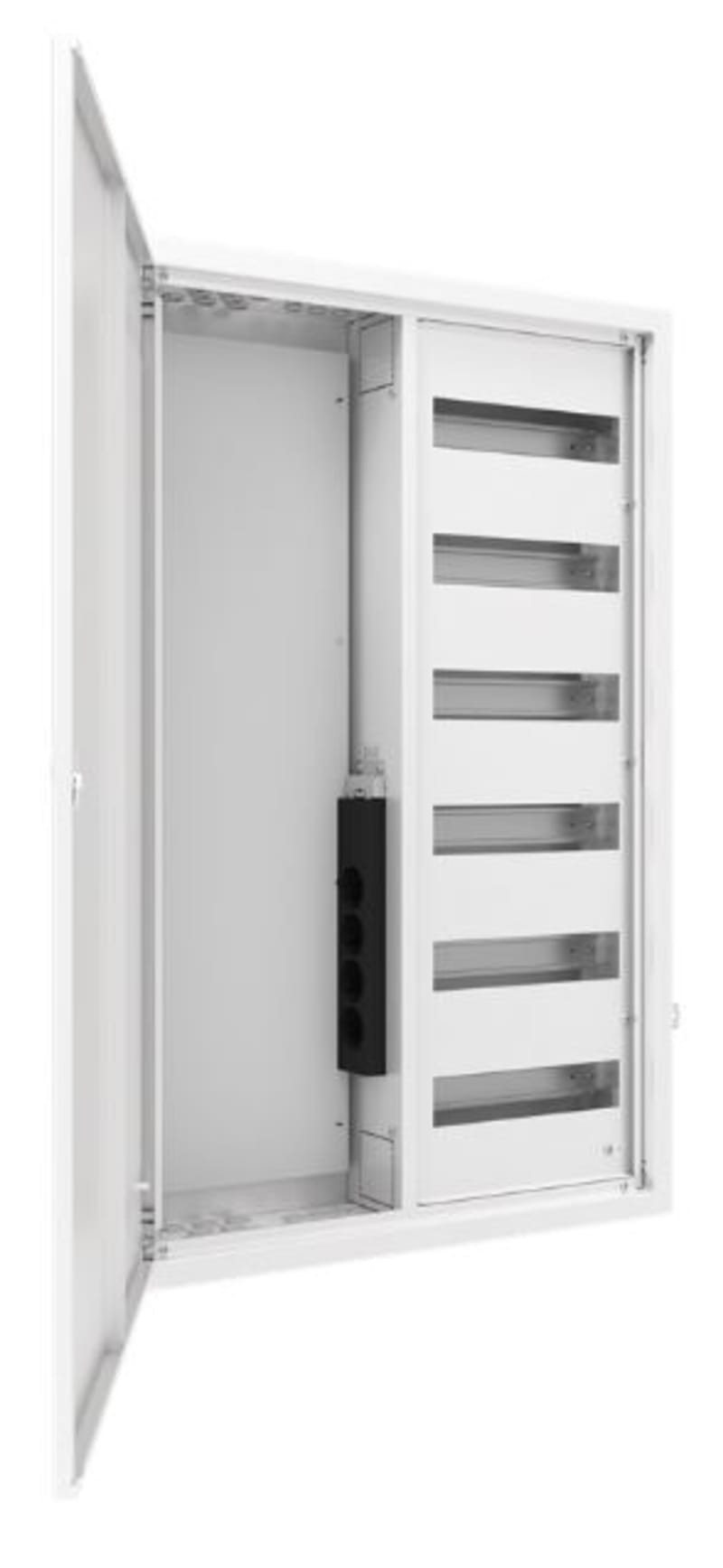

Residential Distribution Board G2 6-Row, 10 circuits 3-Phase IT
Part number169665EAN / GTIN4015081661534HS code8538.10
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 169665 Residential Distribution Board G2 SideBySide 6-row 106mm - 10 circuits 3-phase IT.
Technical Specifications
- Manufacturer part number (MPN)
- 169665
- Sales unit
- pcs
- El-nummer (NO)
- 7900081
- ETIM class
- SC000214
- Eaton catalogue number
- 169665
- EAN / GTIN
- 4015081661534
- Depth
- 86 mm
- Height
- 75 mm
- Width
- 73 mm
- Weight
- 0.43 kg
- Compliances
- CE Marked; RoHS conform
- Certifications
- CE
- Current limiting class
- 3
- Amperage Rating
- 10 A
- Application
- Switchgear for residential and commercial applications
- Basic function
- Combined RCD/MCB devices
- Fault current rating
- 0.03 A
- Number of poles
- Three-pole
- Number of poles (protected)
- 3
- Number of poles (total)
- 3
- Product range
- mRBM4-UK-PT
- Rated current
- 10 A
- Release characteristic
- D
- Sensitivity type
- Type AC, AC current sensitive.
- Tripping characteristic
- D
- Type
- RCBO
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent
- 7.8 W
- Rated operational current for specified heat dissipation (In)
- 10 A
- Disconnection characteristic
- Undelayed
- Frequency rating
- 50 Hz
- Impulse withstand current
- Partly surge-proof, 250 A
- Leakage current type
- AC
- Pollution degree
- 2
- Rated impulse withstand voltage (Uimp)
- 4 kV
- Rated insulation voltage (Ui)
- 440 V
- Rated operational voltage (Ue) - max
- 415 V
- Rated short-circuit breaking capacity (EN 61009-1)
- 10 kA
- Rated short-circuit breaking capacity (EN 61009)
- 10 kA
- Rated switching capacity
- 10 kA
- Rated switching capacity (IEC/EN 61009)
- 10 kA
- Surge current capacity
- 250 kA
- Tripping
- Non-delayed
- Voltage rating
- 230 V
- Voltage type
- AC
- Built-in depth
- 69.5 mm
- Connectable conductor cross section (multi-wired) - max
- 25 mm²
- Connectable conductor cross section (multi-wired) - min
- 1 mm²
- Connectable conductor cross section (solid-core) - max
- 25 mm²
- Connectable conductor cross section (solid-core) - min
- 1 mm²
- Degree of protection
- IP20
- Mounting Method
- DIN rail
- Width in number of modular spacings
- 4
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8538.10
Cross References
- SAP 1200704951
- Code 83602403
- El-nr 7900081
Product Documentation
Document preview: Residential Distribution Board G2 6-rad, 10 kurser 3-fas IT (169665) — Specification Data Sheet (OEM)
