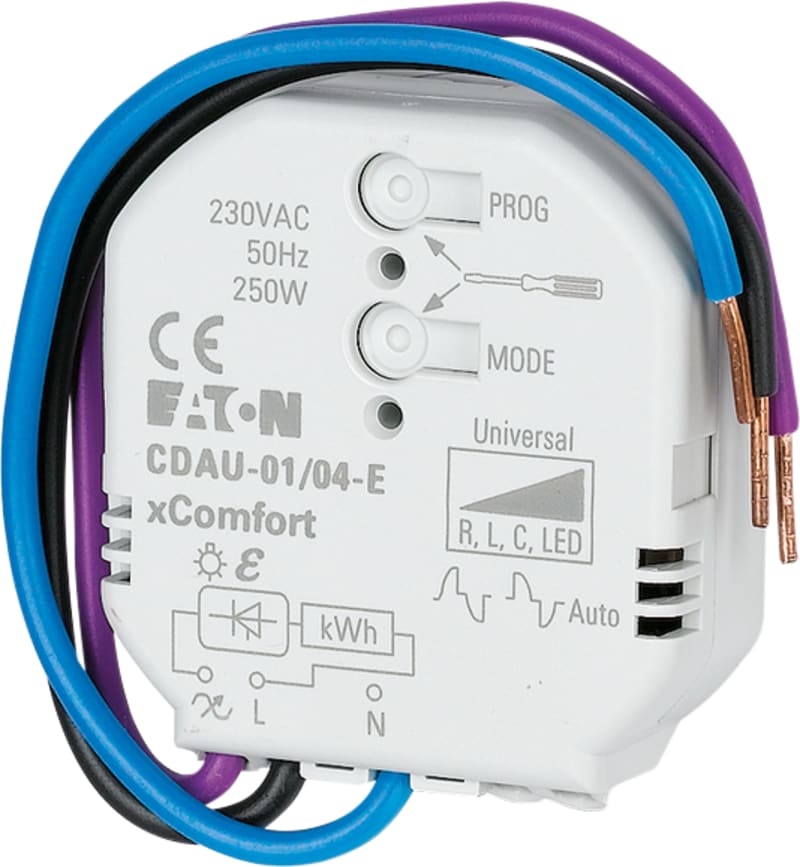

Eaton xComfort Universal Dimming Actuator 250 W
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CDAU-01/04-E is an xComfort bidirectional radio-frequency universal dimming actuator with an integrated energy metering sensor. The 65 x 65 x 18 mm module is flush-mounted behind a wall plate and drives universal or LED retrofit loads up to 250 W (100 W LED). It supports both constant current and constant voltage loads and links to up to 32 xComfort devices.
Technical Specifications
- Manufacturer part number (MPN)
- CDAU-01/04-E
- EAN / GTIN
- 4015081773725
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 182445
- Depth
- 65 mm
- Height
- 18 mm
- Width
- 65 mm
- Weight
- 0.04 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional
- Bus system operating type
- xComfort; Radio frequent
- Actuation function
- Dimming
- Bus system product type
- Actuator
- Built-in installation box depth - min
- 18 mm
- Frequency rating - max
- 50 Hz
- Frequency rating - min
- 50 Hz
- Output power - max
- 250 W
- Output power - min
- 0 W
- Fitted with
- LED indication
- Switching power LED - max
- 100 W
- Voltage rating - max
- 230 V
- Voltage rating - min
- 230 V
- Width in number of modular spacings
- 3
- Power supply
- Mains
- Number of outputs
- 1
- Degree of protection
- IP20
- Load type
- Universal and LED retrofit
- Model
- Dimming actuator
- Mounting method
- Flush mounted (plaster); Flush mounting
- Suitable for
- Constant current; Constant voltage
- Number of linkable devices
- 32
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081773725
- SAP 1000734137
- Code 8369571
Product Documentation
