Eaton
Nexitech LED Kombiarmtur Self-test
Part numberNEXI150-ATEAN / GTIN3660191600235HS code8538.10
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

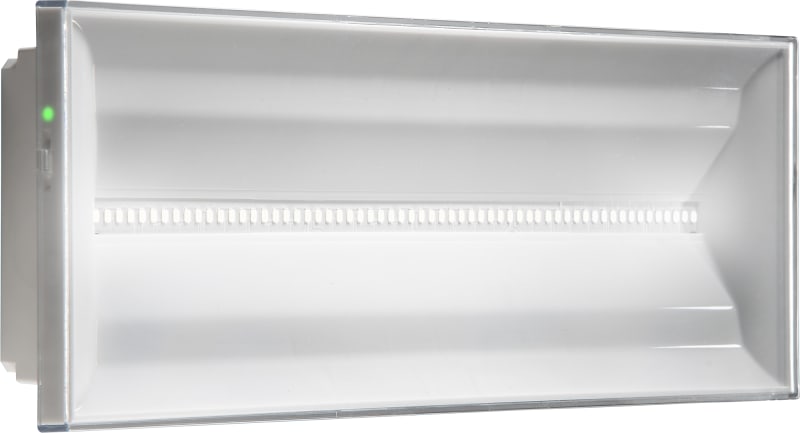

Eaton NEXI150-AT NexiTech LED Combination Luminaire Self-test 1 times backup.
Technical Specifications
- Manufacturer part number (MPN)
- NEXI150-AT
- EAN / GTIN
- 3660191600235
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Suitable for continuous circuit
- No
- Suitable for standby switching
- No
- Mounting method
- Surface mounting/recessed mounting
- Function
- Escape route lighting/signage
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Single/double-sided
- With pictogram
- No
- Monitoring equipment
- Automatic self test
- Wiring system
- Continuous circuit/emergency circuit
- With remote switch connection
- No
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- NiCd
- Lamp type
- LED not exchangeable
- With light source
- No
- Suitable for number of light sources
- 1
- Lamp holder
- None
- Number of lighting heads
- 16
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Nominal current
- 2.7–10.9 mA
- Voltage type
- AC
- Nominal voltage
- 220–240 V
- Autonomy
- 1 h
- Type of control gear
- LED operating device current-controlled
- Exchangeable control gear
- No
- Light distributor
- Reflector
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Built-in depth
- 29 mm
- Luminous flux in emergency mode
- 150 lm
- Rated life time L80/B10 at 25 °C
- 70000 h
- Colour of light
- White
- Constant light output (CLO)
- No
- Degree of protection (IP)
- IP40
- Impact strength
- IK03
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 5–30 °C
- Max. system power
- 2.4 W
- Rated luminous flux according to IEC 62722-2-1
- 150 lm
- Luminous flux in standby mode
- 60 lm
- Colour temperature
- 5053 K
- Power factor
- 0.52
- Recognition distance
- 20 m
- Nominal operation time
- 1 h
- Width
- 110 mm
- Height/depth
- 40 mm
- Length
- 290 mm
- Built-in width
- 95 mm
- Built-in height/depth
- 96 mm
- Built-in length
- 272 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- RAL-number housing
- 9003
- Connectable conductor cross section
- 0.5–2.5 mm²
- Emergency power supply system
- Peripheral (individual battery)
- Power consumption in emergency mode
- 2.4 W
- Emergency function monitoring system
- Automatic self test
- With heating element for battery
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3660191600235
- SAP 1000596074
- Code 8190661
Product Documentation
Document preview: Nexitech LED Kombiarmtur Self-test (NEXI150-AT) — Specification sheet
More from Eaton
Eaton

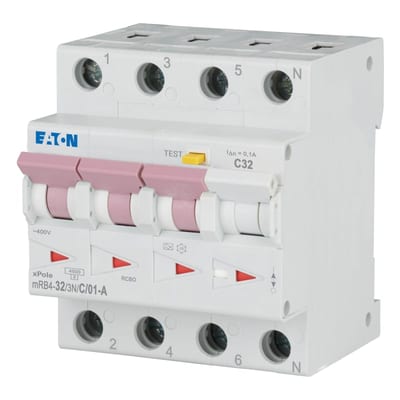

32 Amperè residual current circuit breaker with overcurrent 4-POLE/ 4 mod
167509
Eaton

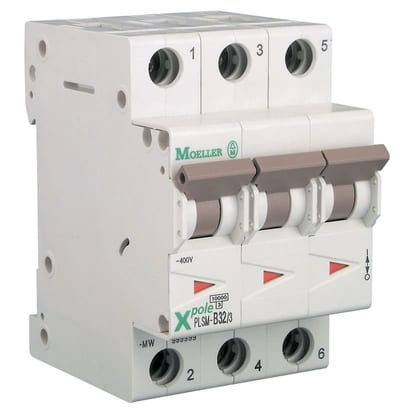

Eaton PLSM-OV50/3 Miniature Circuit Breaker — 3P, OV, 50 A, 10 kA
