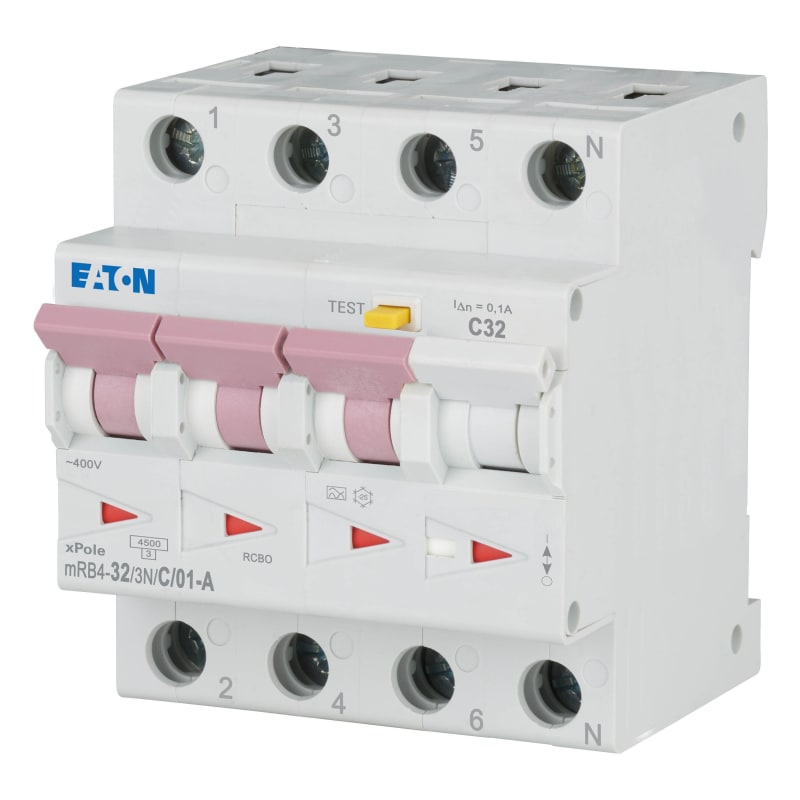

32 Amperè residual current circuit breaker with overcurrent 4-POLE/ 4 mod

Eaton 167509 32 Amperè residual current circuit breaker with overcurrent 4-pole/ 4 modules.

Manufacturer part number (MPN)

167509

EAN / GTIN

4015081640102

HS code

8536.90

Sales unit

pcs

Package quantity

30 pcs

Eaton catalogue number

167509

Depth

86 mm

Height

75 mm

Width

70 mm

Weight

0.48 kg

Compliances

CE Marked; RoHS conform

Certifications

CE

Current limiting class

3

Features

Concurrently switching N-neutral

Standards

IEC/EN 61009

Application

Switchgear for residential and commercial applications

Basic function

Combined RCD/MCB devices

Fault current rating

0.1 A

Number of poles

Three-pole + N

Number of poles (protected)

4

Number of poles (total)

4

Product range

mRB4

Rated current

32 A

Release characteristic

C

Sensitivity type

Type A, pulse-current sensitive

Tripping characteristic

C

Type

RCBO

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

15.6 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

32 A

Static heat dissipation, non-current-dependent

0 W

Back-up fuse

100 Ampere gL

Disconnection characteristic

Undelayed

Frequency rating

50 Hz

Impulse withstand current

Partly surge-proof, 250 A

Leakage current type

A

Pollution degree

2

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

500 V

Rated operational voltage (Ue) - max

400 V

Rated short-circuit breaking capacity (EN 60947-2)

4.5 kA

Rated short-circuit breaking capacity (EN 61009-1)

4.5 kA

Rated short-circuit breaking capacity (EN 61009)

4.5 kA

Rated short-circuit breaking capacity (IEC 60947-2)

4.5 kA

Rated switching capacity

4.5 kA

Rated switching capacity (IEC/EN 60947-2)

4.5 kA

Rated switching capacity (IEC/EN 61009)

4.5 kA

Surge current capacity

0.25 kA

Tripping

Non-delayed

Voltage rating

230 V

Voltage type

AC

Built-in depth

70 mm

Connectable conductor cross section (multi-wired) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (solid-core) - min

1 mm²

Degree of protection

IP20

Device height

80 mm

Mounting Method

DIN rail

Mounting style

Tri-stable slide catch - enables removal from existing busbar combination

Width in number of modular spacings

4

HS Code

8536.90

• EAN 4015081640102
• SAP 1000707499
• Code 8665679
