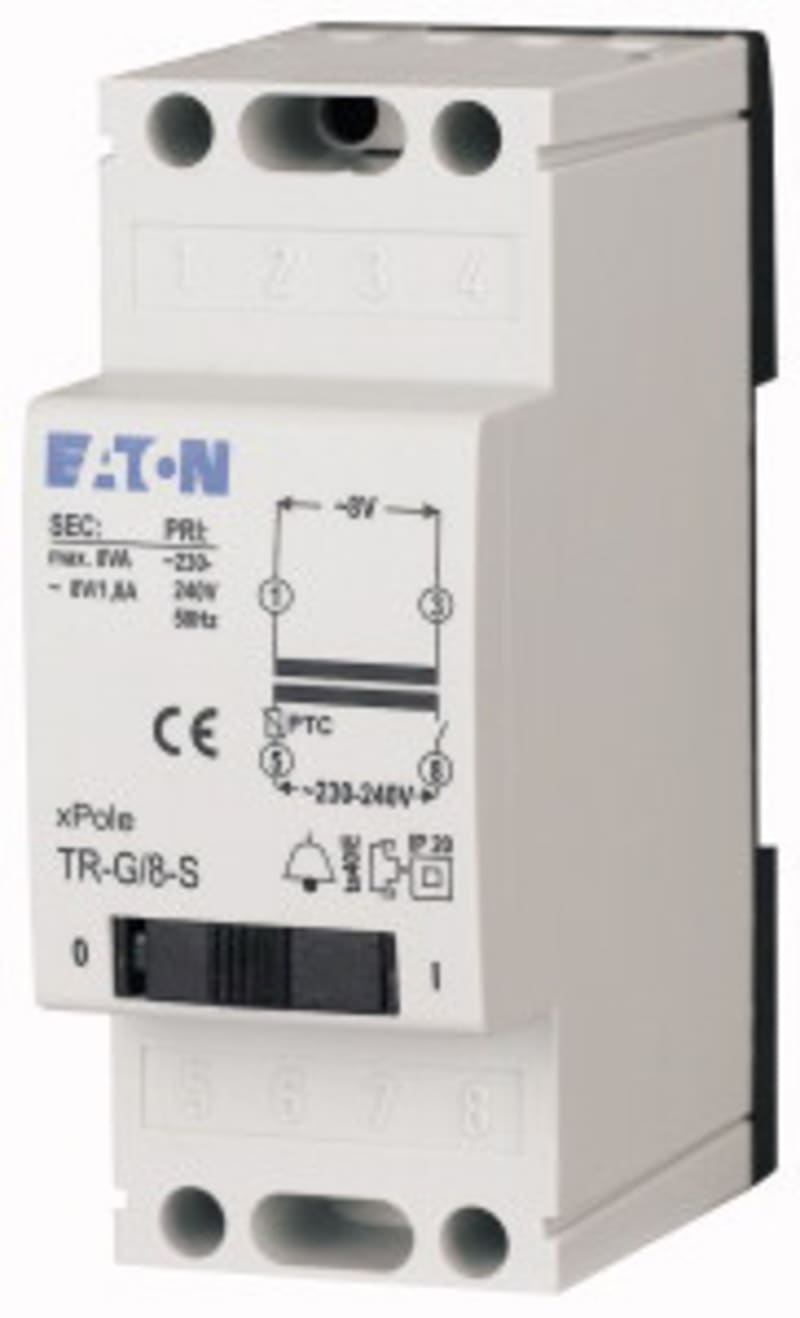

Bell Transformer MOD 230/4-8-12V50HZ (272483)

Eaton 272483 Transformer. Load: 8 VA - 16 VA - 63 VA.

Manufacturer part number (MPN)

272483

EAN / GTIN

4015082724832

Sales unit

pcs

Package quantity

28 pcs

Eaton catalogue number

272483

Depth

55 mm

Height

90 mm

Width

36 mm

Weight

0.358 kg

Compliances

RoHS conform

Features

Modular version; Short-circuit protected; Temperature protection

Transformer type

Standard bell ringing transformer

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Secondary rated current 1

2 A

Secondary rated current 2

2 A

Secondary rated current 3

1.5 A

Secondary voltage rating 1

4 V

Secondary voltage rating 2

8 V

Secondary voltage rating 3

12 V

Width in number of modular spacings

2

Equipment heat dissipation, current-dependent

7.02 W

Suitable for

Surface mounting

Primary voltage

230 V

Type of transformer

Standard bell ringing transformer

With on/off switch

No

Length

55 mm

Surface mounting

Yes

Short-circuit protected

Yes

Secondary voltage 1

4 V

Secondary voltage 2

8 V

Secondary voltage 3

12 V

Secondary amperage 1

2 A

Secondary amperage 2

2 A

Secondary amperage 3

1.5 A

Temperature protection

Yes

Flush-mounted installation

No

Country of origin

Germany

HS Code

8504.31

• EAN 4015082724832
• SAP 1000008225
• Code 866206
