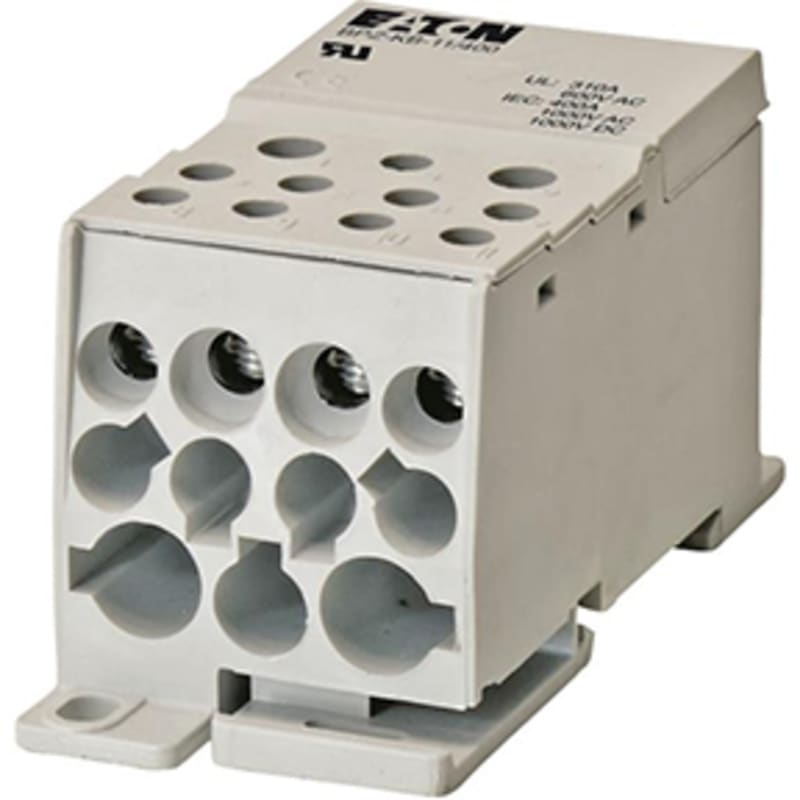

Terminal Block 1P. 400A 11 output
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Terminal Block 1P. 400A 11 output (part number BPZ-KB-11/400) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 50 pcs; Eaton catalogue number: 102713; Depth: 49 mm; Height: 95.4 mm; Width: 44.5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-KB-11/400
- EAN / GTIN
- 4015081025732
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Eaton catalogue number
- 102713
- Depth
- 49 mm
- Height
- 95.4 mm
- Width
- 44.5 mm
- Weight
- 0.5 kg
- Compliances
- RoHS conform
- Certifications
- UL 1059; IEC 60 947 -7 -1
- Comparative tracking index (CTI)
- 600 V
- Flame classification (UL 94)
- V-0
- Functions
- Additional equipment
- Special features
- Clicks on DIN-rail or on base plate. Save time on wiring. Save 80% on space used. Modular construction, 1-4 pole Systems can be built with several blocks. Material, hexagon socket set screw: Steel Zinc plated (Hexagon socket set screw, Surface finish)
- Amperage rating
- 400 A
- Number of poles
- Single-pole
- Heat deflection temperature
- 100 °C
- Rated operation current (Ie) Cu (CSA)
- 310 A
- Rated operation current (Ie) Cu (IEC)
- 400 A
- Rated operation current (Ie) Cu (UL)
- 310 A
- Rated peak withstand current
- 51 kA
- Rated short-time withstand current (Icw)
- 21 kA
- Voltage rating at AC Cu (CSA) - max
- 600 VAC
- Voltage rating at AC Cu (IEC) - max
- 1000 VAC
- Voltage rating at AC Cu (UL) - max
- 600 VAC
- Voltage rating at DC Cu (IEC) - max
- 1500 VDC
- Clamp material
- Plain; Brass
- Conductor cross section (solid, solid-strand) - max
- 185 mm²
- Conductor cross section (solid, solid-strand) - min
- 1.5 mm²
- Housing color
- Light gray (RAL 7035)
- Housing material
- PA66
- Mounting method
- Surface mounting; Floor standing distribution board; Flush mounting
- Mounting position
- Universal
- Number of clamp positions per pole
- 12
- Number of clamping units per pole
- 12
- Degree of protection
- IP10
- Torque rating
- 25 Nm / 221.2 lbf (incoming). 2 Nm - 7 Nm / 17 lbf - 62 lbf (outgoing)
- Conductor cross section solid (solid, stranded)
- 1.5–185 mm²
- Max. rated current
- 400 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081025732
- SAP 1200562659
- Code 82905849
