Digital module 2 in/out

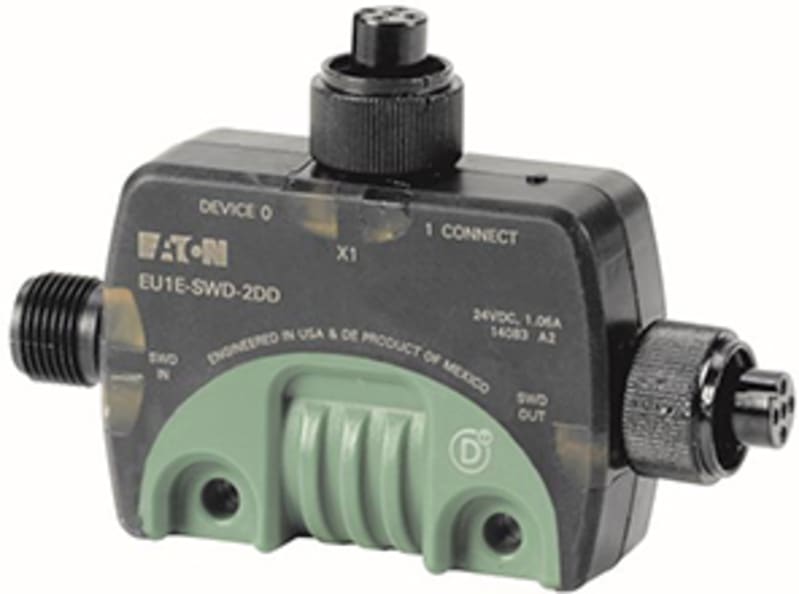

Eaton Digital module 2 in/out (part number EU1E-SWD-2DD) is listed under Control & Automation / I/O Modules. Sales unit: pcs; Eaton catalogue number: 174715; Depth: 85.6 mm; Height: 20.1 mm; Width: 56.9 mm; Weight: 0.07 kg.

Manufacturer part number (MPN)

EU1E-SWD-2DD

EAN / GTIN

4015081712014

Sales unit

pcs

Eaton catalogue number

174715

Depth

85.6 mm

Height

20.1 mm

Width

56.9 mm

Weight

0.07 kg

Certifications

UL; UL File No.: E170645; IEC/EN 61131-2; CSA

Constant acceleration

1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations

Constant amplitude

3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations

Drop and topple

50 mm Drop height, Drop to IEC/EN 60068-2-31

Height of fall (IEC/EN 60068-2-32) - max

0.3 m

Mounting position

As required

Shock resistance

30 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Air pressure

795 - 1080 hPa (operation)

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Dry heat to IEC 60068-2-2; Damp heat, constant, to IEC 60068-2-3

Environmental conditions

Condensation: permissible

Operating temperature - max

70 °C

Operating temperature - min

-25 °C

Relative humidity

5 - 95 % (non-condensing, IEC/EN 60068-2-30)

Connection to SmartWire-DT

Yes

Connection type

5-pin M12 socket (A-keyed)

Supply and I/O sensor; SWD-IN

M12 plug (A-keyed)

5 pole; SWD-OUT

M12 socket (A-keyed), 5 pole

Data transfer rate

Setting automatically; 2 MBit/s, SmartWire-DT

LED indicator

Status indication of input: Yellow LED; Status indication of SmartWire-DT network: Green LED; Status indication of display outputs: Yellow LED

Protocol

Other bus systems

Station

SmartWire-DT slave, SmartWire-DT network

Static heat dissipation, non-current-dependent Pvs

1.4 W

Input current

4 mA (at 24 V DC, Digital inputs)

Input current at signal 1

4 mA

Output current

0.5 A

Power loss

1.4 W

Short-circuit protection

Outputs are short-circuit proof

Short-circuit tripping current

Max. 1.2 A over 3 ms, Digital semi-conductor outputs

Supply voltage at DC - max

28.8 VDC

Air discharge

8 kV, according to IEC 61131-2, level 3, ESD

Burst impulse

2 kV, Supply cable, according to IEC/EN 61131-2, Level 3; 1 kV, Signal cable, according to IEC/EN 61131-2, Level 3; 1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3

Contact discharge

4 kV, according to IEC/EN 61131-2, Level 2, ESD

Electromagnetic fields

10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008); 1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008); 3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)

Radiated RFI

10 V (IEC/EN 61131-2:2008, Level 3)

Radio interference class

Class A (EN 55011)

Surge rating

0.5 kV, Surge power cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC; 1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC

Electric connection type

Screw connection

Features

Digital inputs configurable; Short-circuit protection (sensor supply); Fieldbus connection over separate bus coupler possible; Digital outputs configurable; Overload proof (with diagnostics); Overload protection (sensor supply); Fieldbus connection over separate bus coupler possible

Functions

For connection of digital I/O signals; Short-circuit protection, outputs available

Current consumption

70 mA, Max. current consumption per M12 I/O plug, Sensor supply, SmartWire-DT network; 55 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply

Degree of protection

IP69K

Mounting method

Rail mounting possible; Mounting section (Clip M20); Wall mounting/direct mounting; Screw fixing (M4); DIN rail

Overvoltage category

II

Pollution degree

3

Product category

SmartWire-DT slave

Type

Digital modules

Voltage type

DC

Input

Max. 2 Freely configurable inputs/outputs

Input delay

< 0.2 ms

Lamp load

≤ 3 W (at RLL)

Limit value type 1

Low: < 5 V DC; High: > 15 V DC

Number of inputs (digital)

2

Number of outputs (digital)

2

Output

Max. 2 Freely configurable inputs/outputs; Max. 2 Transistor Outputs

Switching capacity

IEC/EN 60947-5-1, utilization category DC-13, Digital outputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Inputs for SmartWire-DT: no; Output to output: no; Between Outputs to SmartWire-DT: no; Output to input: no; Input to input: no

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

0–28.8 V

Number of digital inputs

2

Number of digital outputs

2

Digital inputs configurable

Yes

Digital outputs configurable

Yes

Permitted voltage at input

20.4–28.8 V

Type of voltage (input voltage)

DC

Permitted voltage at output

20.4–28.8 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

HS Code

8537.10
