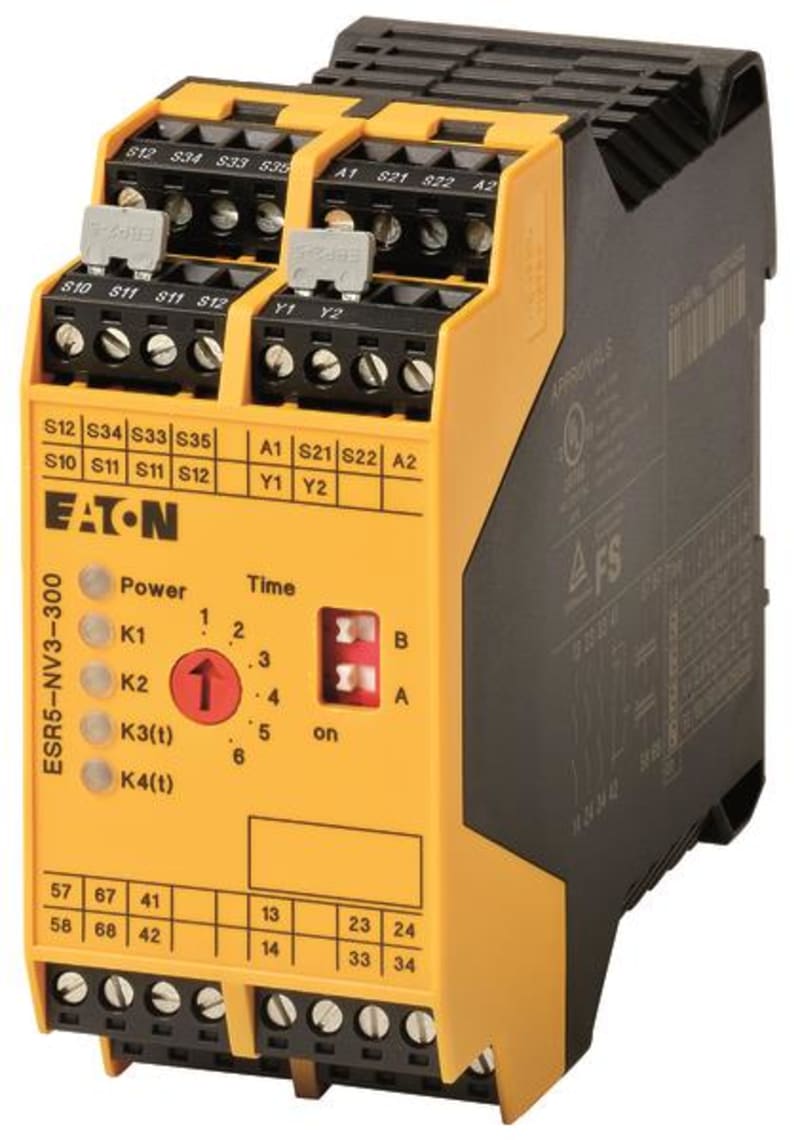

Safety Relay ESR5-NV3-300

Eaton ESR5-NV3-300 Sikkerhetsreles emergency stop, 24VDC, zinc-plated of, 0-300 sec.

Manufacturer part number (MPN)

ESR5-NV3-300

EAN / GTIN

4015081684298

Sales unit

pcs

Eaton catalogue number

171858

Depth

114.5 mm

Height

99 mm

Width

45 mm

Weight

0.472 kg

Mounting position

As required

Prooftest

240 Months (High Demand); 19 Months (Low Demand)

Switching capacity

3 A at 3600 O/h, AC-15 at 230 V, Outputs; 2.5 A at 3600 O/h, DC-13 at 24 V, Outputs; 0.4 W; In accordance with IEC 60947-5-1, Outputs; 4 A at 360 O/h, AC-15 at 230 V, Outputs

Vibration resistance

10 - 150 Hz

Amplitude

0.15 mm

Acceleration

2 g, (IEC/EN 60068-2-6)

Air pressure

795 - 1080 hPa (operation)

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-20 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Cold to EN 60068-2-1; Dry heat to IEC 60068-2-2; Damp heat, constant, to IEC 60068-2-3

Environmental conditions

Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2

No. 14-95; Condensation

Non-condensing

Operating temperature - max

55 °C

Operating temperature - min

-20 °C

Relative humidity

< 75 %

Static heat dissipation, non-current-dependent Pvs

5.43 W

Inrush current

0.025 - 6 A

Rated control supply voltage (Us) at AC

50 Hz - max

230 V

Rated control supply voltage (Us) at AC

Rated control supply voltage (Us) at AC

60 Hz - max

26.4 V

Rated control supply voltage (Us) at AC

60 Hz - min

20.4 V

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Rated insulation voltage (Ui)

250 V

Rated operational voltage

Approx. 24 V DC at input, starting and feedback circuit; 230 V AC; 24 V DC (power supply)

Short-circuit protection

Non-time-delay 6-A fast-blow fuse, For output circuits, External; Time-delay 10-A gL/gG Neozed fuse, For output circuits, External

Short-circuit protection rating

6 A (non-delayed), Output fuse, Output data; 10A gL/gG, NEOZED (delayed), Output fuse, External, Output data

Electric connection type

Screw connection

Features

Safe insulation; 3 Non-delayed enable current paths; Monitored reset; Automatic start; 6 kV between the enable current paths (13/14, 23/24, 33/34) and the remaining rungs, as well as between 13/14, 23/24, 33/34 in relation to each other; Manual start; Reinforced insulation; Basic insulation

Fitted with

Feedback circuit; Start input; Approval according to UL; Detachable clamps; Approval for TÜV

Functions

1-channel; 2-channel

Connection type

M3 screw terminals

Current consumption

155 mA, DC

Degree of protection

Installation location: ≥ IP54; Enclosure: IP20; Terminals: IP20; IP20

Emitted interference

According to EN 61000-6-4

Interference immunity

According to EN 61000-6-2

LED indicator

Status indication of SmartWire-DT network: Green LED

Lifespan, mechanical

10,000,000 Operations

Model

Basic device

Mounting method

Rail mounting possible; Top-hat rail fixing (according to IEC/EN 60715, 35 mm)

Mounting width

45 mm

Overvoltage category

III

Pollution degree

2

Power loss

Normally 5.43 W

Product category

Electronic safety relays

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

4000 V AC

Recovery time

1000 ms

Safety parameter (EN ISO 13849-1)

PL e, Performance level; Cat. 4, Category; 300,000 switching cycles, B10d

Safety parameter (IEC 62061)

SILCL 3, Safety integrity level claim limit; 3.6 x 10-10, PFHd, Probability of failure per hour; Off-delay contacts, SILCL 2 as per IEC 62061; SIL 3, Safety integrity level, In accordance with IEC 61508; Cat. 4, Category; Non-time-delay contacts, SILCL 3 as per IEC 62061 and SIL 3 as per IEC 61508

Stop category (IEC 60204)

0 + 1

Suitable for

Monitoring of emergency-stop circuits; Module used to safely interrupt electrical circuits; Monitoring of position switches; Safety relay for monitoring emergency stop and protective door switch

Switching frequency

Max. 0.5 Hz, Input data

Type

Emergency stop category 1; emergency switching off Light curtain Protective door

Voltage type

DC

Input

∞ ms, Simultaneity for inputs 1/2

Number of inputs

One- and two-channel

Number of outputs (safety related, delayed) with contact

2

Number of outputs (safety related, undelayed) with contact

3

Number of outputs (signaling function, delayed) with contact

0

Number of outputs (signaling function, undelayed) with contact

1

Off-delay

0.2 - 300 s (± 40 %, K3, K4 adjustable)

Permissible total cable resistance

22 Ω (input and starting circuits for UN)

Pick-up time

600 ms typ. (at Uₑ in automatic mode); 70 ms typ. (at Uₑ in manual mode); 600 ms typ. (K1, K2 - for UN automatic mode); 70 ms typ. (K1, K2 - for UN manual operation)

Quadratic summation current

55 A² (ITH² = I1² + I2² + I3² + I4² + I5²)

Reset time

20 ms (non-delayed contacts)

Switching voltage

250 V

Uninterrupted current

6 A N/C, Limiting continuous current; 6 A N/O, Limiting continuous current

Screwdriver size

2, Terminal screw, Pozidriv screwdriver; 3.5 x 0.6 mm, Terminal screw

Stripping length (main cable)

7 mm

Terminal capacity

1 x (0.2 – 2.5) mm², solid; 2 x (0.2 – 1) mm², solid; 2 x (0.25 – 1) mm², flexible with ferrule; 1 x (0.25 – 2.5) mm², flexible with ferrule; 24 - 12 AWG, solid or stranded

Tightening torque

0.6 Nm, Screw terminals

Operating voltage DC

24 V

Power consumption

5.43 W

Supply voltage DC

24 V

Rated switch current

4 A

Control voltage 1

24 V

Control voltage 2

24 V

Type of control voltage 1

DC

Type of control voltage 2

AC

Suitable for monitoring of position switches

Yes

Suitable for monitoring of emergency-stop circuits

Yes

Suitable for monitoring of valves

No

Suitable for monitoring of tactile sensors

No

Suitable for monitoring of magnetic switches

No

Suitable for monitoring of proximity switches

No

Type of electric connection

Screw connection

Suitable for rail mounting

Yes

Rated control supply voltage AC 50 Hz

0–230 V

Rated control supply voltage DC

24 V

Voltage type for actuating

DC

With detachable clamps

Yes

Evaluation inputs

One- and two-channel

With start input

Yes

With muting function

No

With feedback circuit

Yes

Release-delay

0.2–300 s

Number of outputs, safety related, undelayed, with contact

3

Number of outputs, safety related, delayed, with contact

2

Type of safety according to IEC 61496-1

None

Stop category according to IEC 60204

0 + 1

Performance level according to EN ISO 13849-1

Level e

SIL according to IEC 61508

3

With approval for BG BIA

No

With approval according to UL

Yes

Country of origin

Germany

HS Code

8536.49
