Overview

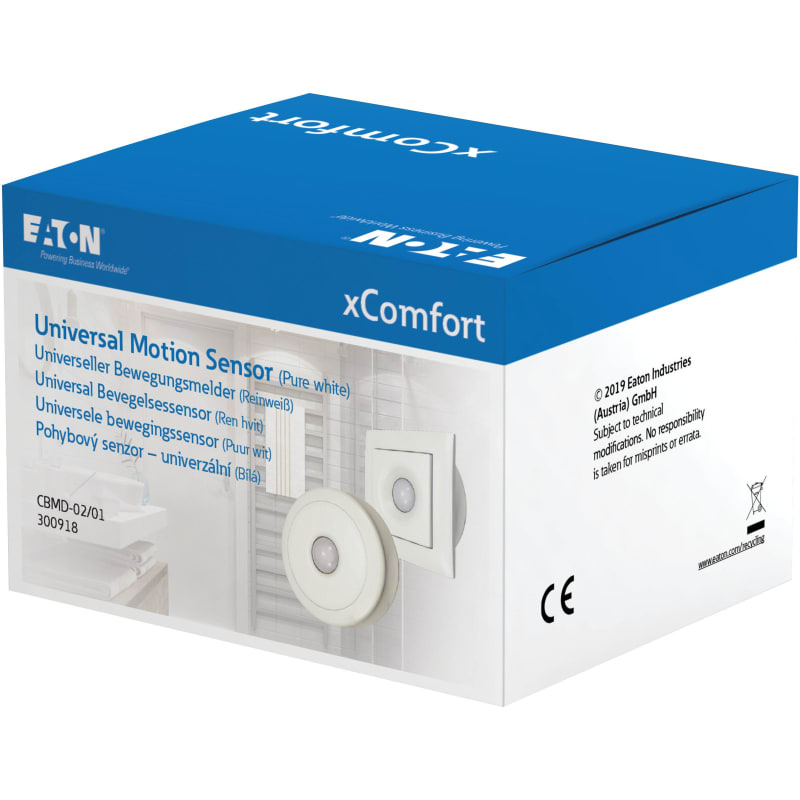

Eaton Universal Motion Sensor White (part number CBMD-02/01) is listed under Lighting & Electrical Accessories / Motion Sensors. HS code: 8536.90; Sales unit: pcs; Package quantity: 20 pcs; Product segment: Smart home; Eaton catalogue number: 300918; Depth: 91 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CBMD-02/01
- EAN / GTIN
- 9010238132528
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Product segment
- Smart home
- Eaton catalogue number
- 300918
- Depth
- 91 mm
- Height
- 30 mm
- Width
- 91 mm
- Weight
- 0.084 kg
- Compliances
- RoHS conform
- Features
- Response value luminosity adjustable; Radio frequent bidirectional
- Bus system operating type
- Radio frequent; xComfort
- Bus system product type
- Sensor
- Number of channels
- 2
- Built-in depth
- 16.7 mm
- Built-in diameter
- 50 mm
- Built-in installation box depth - min
- 20 mm
- Built-in length
- 50 mm
- Built-in width
- 50 mm
- Detection angle (horizontal) - max
- 90 °
- Detection angle (horizontal) - min
- 90 °
- Detection angle (vertical) - max
- 90 °
- Detection angle (vertical) - min
- 90 °
- Duty cycle - max
- 120 min
- Floor detection range diameter
- 5 m
- Mounting height (optimum)
- 2.5 m
- Number of inputs (binary)
- 0
- Surface finishing
- Matt
- Color
- White
- Power supply
- Battery; Mains
- Surface protection
- Untreated
- Material quality
- Thermoplastic
- Sensor type
- Presence; Motion
- Diameter sensor
- 70 mm
- Transmission range frontally - max
- 4 m
- RAL-number (Akin)
- 9010
- Switch-on time - min
- 3 s
- Transmission range sideways - max
- 4 m
- Mounting method
- Surface mounting; Other; Built-in
- Material
- Plastic
- Model
- Movement sensor
- Suitable for
- Ceiling mounting; Wall mounting
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9010238132528
- SAP 1200423459
- Code 82458157
Product Documentation
More from Eaton
Eaton
Residual current circuit breaker 40A 2P 30MA G/A
PFIM-40/2/003-G/A
Eaton
Safety switch 3P 1NO1NC IN12A (T0-2-15679/I1/SVB)
Eaton

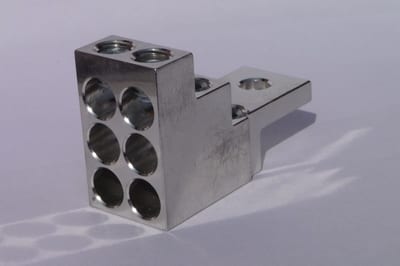

NZM1-4-XKAM (144114)
Eaton

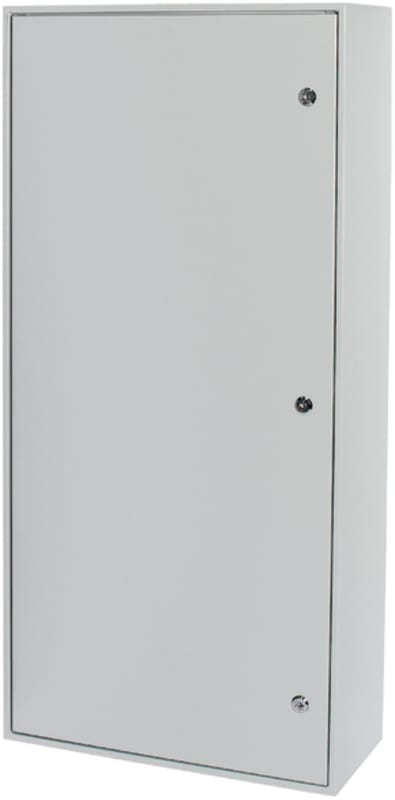

Floor-standing cabinet IP55 xE Basic H1760 B1000 D320
BPM-F-1000/17-P
Eaton

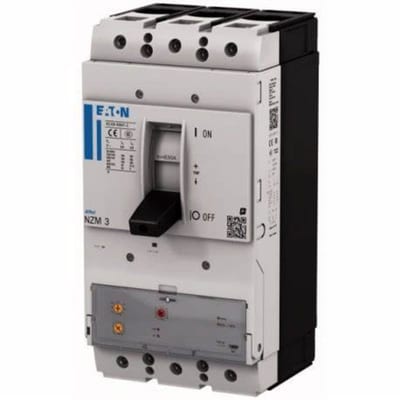

Eaton NZMH3-VX630 Molded-Case Circuit Breaker 3-Pole 630A 150KA
Eaton
Contact element 1S BOTTOM
M22-KC10
Eaton

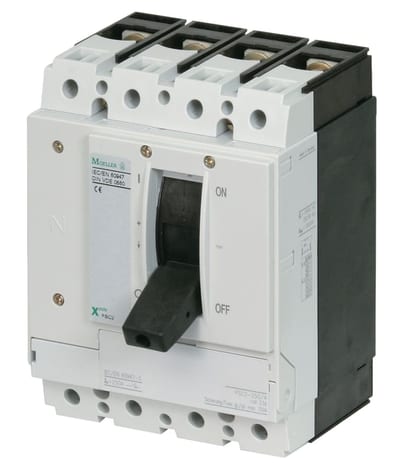

LOAD-Break Switch PN2-4-250
