Contact element 1S BOTTOM

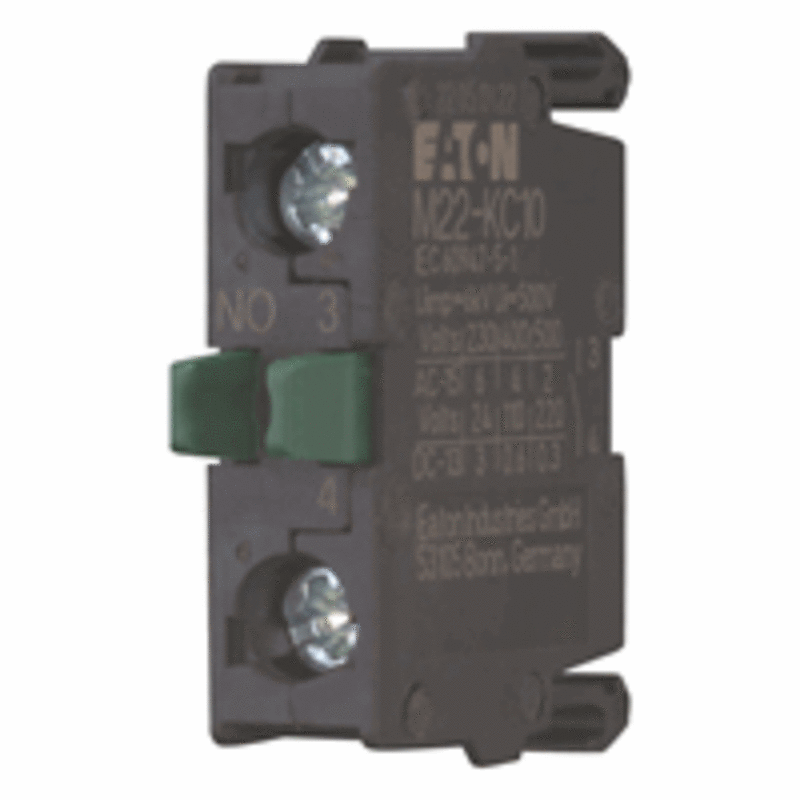

Eaton M22-KC10 Contact Element 1S Bottom.

Manufacturer part number (MPN)

M22-KC10

EAN / GTIN

4015082163808

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

216380

Depth

38 mm

Height

10 mm

Width

32 mm

Weight

0.01 kg

Compliances

CE Marked

Certifications

EN 60947-5; UL 508; CSA Std. C22.2 No. 14-05; IEC 60947-5; CSA Std. C22.2 No. 94-91; VDE; IEC/EN 60947-5; UL Category Control No.: NKCR; CSA; UL; CSA Class No.: 3211-03; CSA File No.: 012528; UL File No.: E29184; CSA-C22.2 No. 14-05; CE; CSA-C22.2 No. 94-91; IEC 60947-5-1

Actuating force - max

5 N

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Control circuit reliability

1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA); 1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Rated insulation voltage (Ui)

500 V

Rated operational current (Ie) at AC-15, 115 V

6 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

2 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Rated operational current (Ie) at DC-13, 42 V

1.7 A

Rated operational current (Ie) at DC-13, 500 V

0.1 A

Rated operational current (Ie) at DC-13, 60 V

1.2 A

Color

Green

Electric connection type

Screw connection

Degree of protection

IP20

Lifespan, electrical

1,200,000 Operations (at 12 V, DC-13, 2.8 A); 1,000,000 Operations (at 230 V, AC-15, 1 A); 1,600,000 Operations (at 230 V, 0.5 A); 700,000 Operations (at 230 V, AC-15, 3 A)

Lifespan, mechanical

5,000,000 Operations

Model

Top mounting

Operating frequency

3600 Operations/h

Operating torque

0.8 Nm

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Connection type

Base fixing; Single contact; Screw connection

Mounting method

Base

Short-circuit protection

PKZM0-10/FAZ-B6/1, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Contacts

Terminal capacity (flexible with ferrule)

0.5 - 1.5 mm²

Terminal capacity (solid)

0.75 - 2.5 mm²

Terminal capacity (stranded)

0.5 - 2.5 mm²

Country of origin

Germany

HS Code

8536.50
