Eaton
Eaton pluggable dimmer actuator 250W grey
Part numberCDAP-01/Fa-1EEAN / GTIN9008790947315HS code8536.50
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

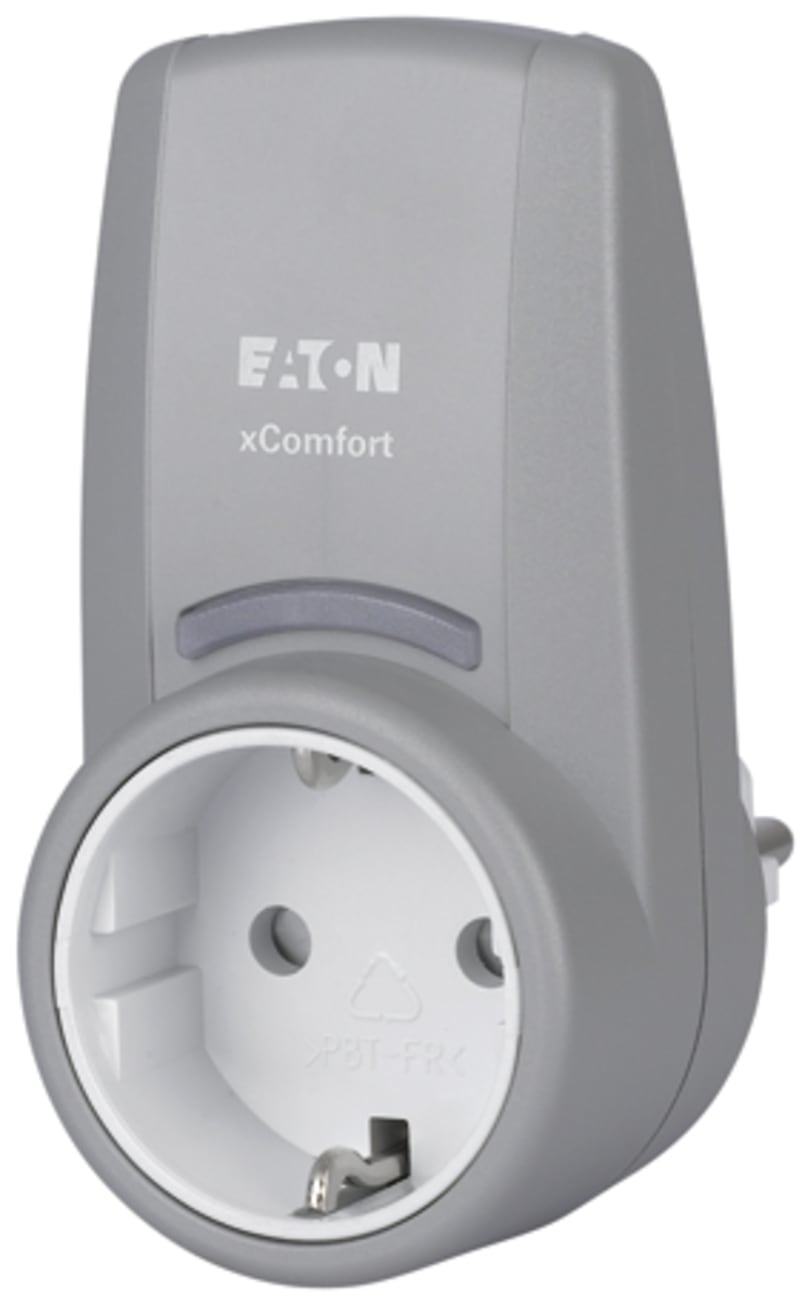

Eaton CDAP-01/Fa-1E pluggable dimmer actuator 250W in colour grey.
Technical Specifications
- Manufacturer part number (MPN)
- CDAP-01/Fa-1E
- EAN / GTIN
- 9008790947315
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 195827
- Depth
- 100.3 mm
- Height
- 76 mm
- Width
- 52 mm
- Weight
- 0.16 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional; Local operation/hand operation
- Bus system operating type
- Radio frequent; xComfort
- Actuation function
- Dimming
- Bus system product type
- Actuator
- Frequency rating - max
- 50 Hz
- Frequency rating - min
- 50 Hz
- Output power - max
- 250 W
- Fitted with
- Bus connection; LED indication
- Switching power LED - max
- 100 W
- Voltage rating - max
- 253 V
- Voltage rating - min
- 196 V
- Width in number of modular spacings
- 0
- Power supply
- Mains
- Color
- Gray
- Number of outputs
- 1
- Degree of protection
- IP20
- Load type
- Universal and LED retrofit
- Model
- Dimming actuator
- Mounting method
- Plugged-in; Surface mounted (plaster)
- Suitable for
- Constant current; Constant voltage
- Number of linkable devices
- 32
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Device emplacement
- Indoor positioning
- Frequency
- 50 Hz
- Bus system KNX
- No
- Bus system radio frequency
- Yes
- Bus system Powernet
- No
- With bus connection
- Yes
- Type of load
- Universal and LED Retrofit
- Material
- Polycarbonate (PC)
- Voltage
- 196–253 V
- Other bus systems
- xComfort
- Bus system LON
- No
- Substation input
- No
- Parallel-service possible
- No
- Local operation/hand operation
- Yes
- Output power
- 0–250 W
- With LED indication
- Yes
- Power boost suitable
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- Yes
- Suitable for constant current
- Yes
- Suitable for constant voltage
- Yes
- Constant light output (CLO)
- Yes
- Bus module detachable
- No
- Max. switching power LED
- 100 W
- Country of origin
- Czechia
- Min. depth of built-in installation box
- 0 mm
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 9008790947315
- SAP 1200134425
- Code 82037991
Product Documentation
Document preview: Pluggable Dimmeakt. 250W, Grey (CDAP-01/Fa-1E) — Specification Data Sheet (OEM)
