Eaton

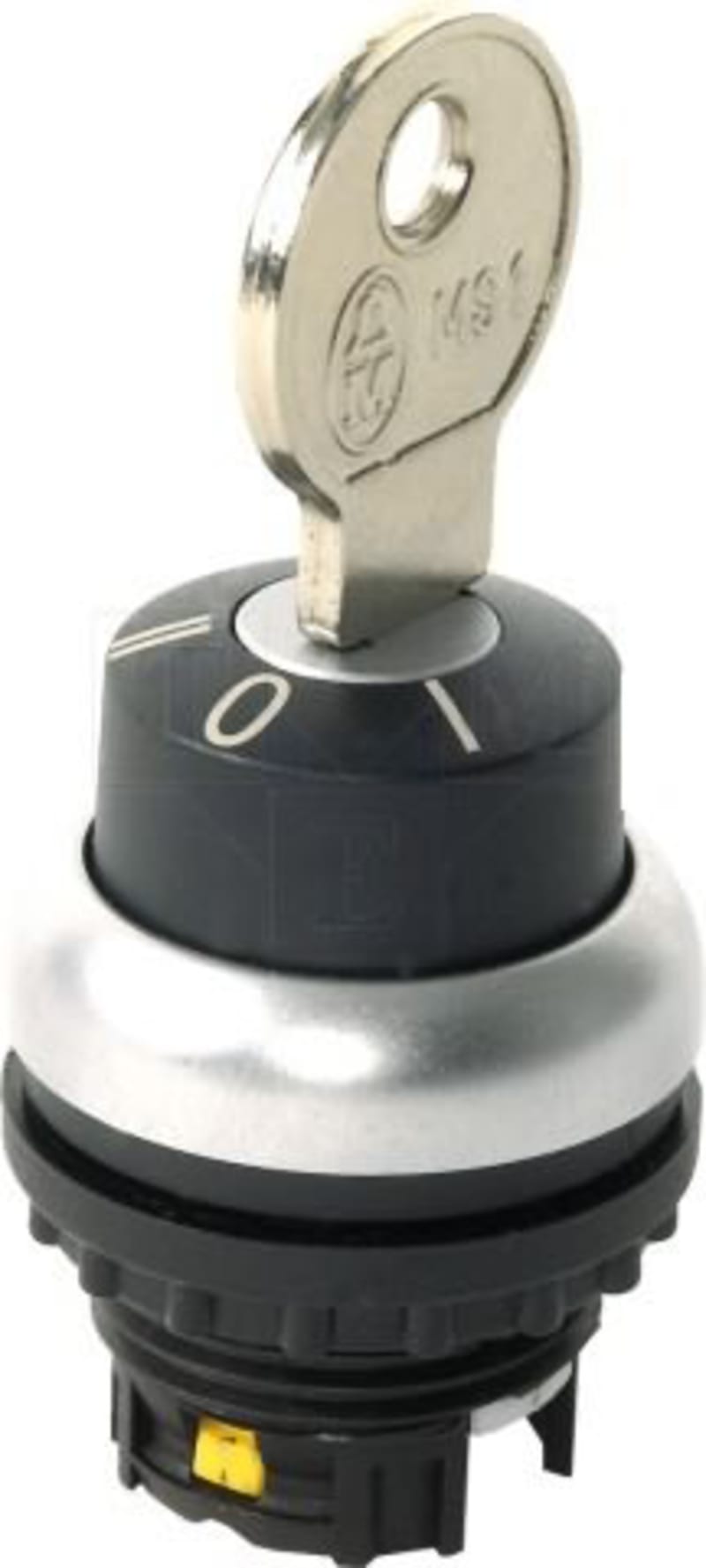

KEY Switch 1-0-2 Impulse
Part numberM22-WS3EAN / GTIN4015082168940HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-WS3 Key switch, Key withdrawable in all stillinger, Can omkoderes, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WS3
- EAN / GTIN
- 4015082168940
- Sales unit
- pcs
- Eaton catalogue number
- 216894
- Depth
- 70 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.034 kg
- Compliances
- CE Marked
- Certifications
- CSA Std. C22.2 No. 14-05; EN 60947-5; UL 508; CSA Std. C22.2 No. 94-91; IEC 60947-5; VDE; IEC/EN 60947; UL File No.: E29184; UL; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; IEC/EN 60947-5; UL Category Control No.: NKCR; VDE 0660; CE; CSA Class No.: 3211-03; CSA File No.: 012528; CSA; DNV; GL; LR
- Actuator color
- Black
- Actuator function
- Key withdrawable in position 0; Momentary; Spring-return
- Actuator type
- Key
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Key operated; Classical
- Fitted with
- Front ring; Plunger bridge for the middle contact
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Indicator color
- Other
- Lens type
- Round
- Number of switch positions
- 3
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Accessories
- 1 key included with supplied equipment.
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 100 Operations/h
- Operating torque
- 0.5 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Switching angle
- 40 °
- Type
- Key-operated button
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- Yes
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Key
- Colour control element
- Black
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082168940
- SAP 1000037855
- Code 8731004
Product Documentation
Document preview: KEY Switch 1-0-2 Impulse (M22-WS3) — Specification Data Sheet (OEM)
